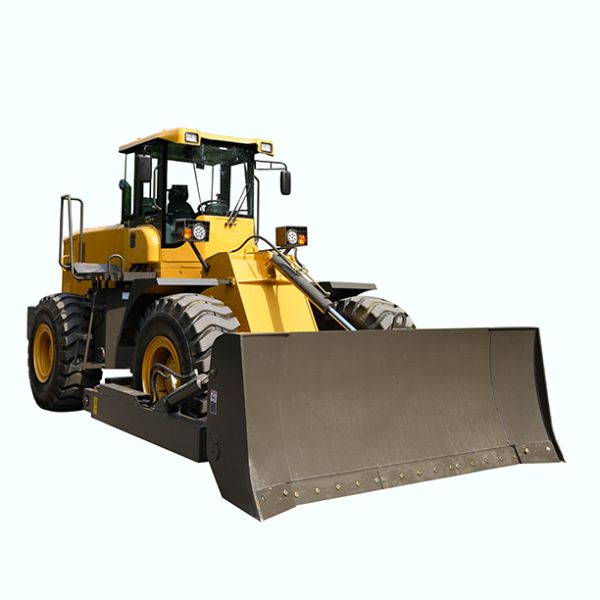

Wheel Bulldozer DL240
Wheel Bulldozer DL240
Wheel Bulldozer DL240
Wheel Bulldozer DL240
Wheel Bulldozer DL240
Wheel Bulldozer DL240
Wheel Bulldozer DL240
Wheel Bulldozer DL240
Specifications
Brand Name :
HORNQUIP
Model Number :
DL240
Place of Origin :
CHINA
other name :
bulldozer wheel dozer
engine :
Wechai WD10G240E22
tyre :
23.5-25
operating weight :
17000kg
rated power :
178kw
Description
performance Overall Dimension 7100×3600×3450mm
Wheel base 3300mm
Wheel track 2240mm
Height of shovel blade 1000mm
Operating weight 17000kg
Max. lift height of dozer blade 1060mm
Max. depth of dozer blade 400mm
Width of shovel blade 3600mm
Gradeability 25°
engine Model of engine WECHAI WD10G240E22 (EURO 2)
Pattern Turbo, in-line, water-cooled, 4-stroke, direct injection
Rated power 178KW
Rated rotary speed 2000r/min
Max. torque 860N.m
Min. fuel consuming rate 126g/kw.h
Total displacement 9.7L
Transmission system Model of torque device ZL60D-II
Pattern Powershift, countershaft
Number of gears 4 forward,4 reverse
Max. travel speed 40km/h
Axle Feicheng/Laiyang
Main reducer type Spiral bevel gear first class reduction
Final reducer Single stage planetary
Tire size 23.5-25
Steering system Pattern Articulated, full hydraulic
Min. turning radius(outside of bucket) 7268mm
Max. turning angle 35°±1
Working hydraulic system Working pump CBGJ2100/1010/2063-0010
Displacement 250L/min
System working pressure 20.3MPa
Distribution device model 32
Pilot valve model DJS
brake Brake system Gas cap oil caliper disc on 4 wheels
Parking brake Hand operated caliper disc
