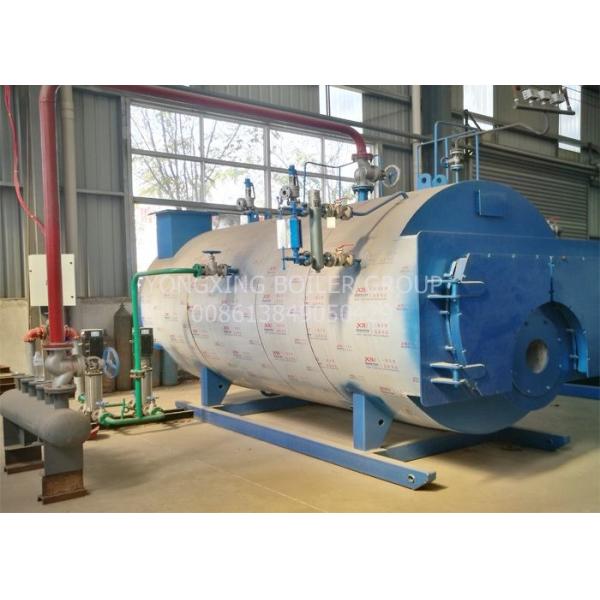

1000Kg / H Oil Fired Steam Boiler oil boiler furnace Three Pass Automatic Running Horizontal Steam Boiler

Oil Boiler Furnace Structure

1, Oil Boiler Furnace adopt three-return structure: the boiler design is an internationally popular shell-type three-return, full-wet back structure, the combustion chamber has a large volume and the combustion is very sufficient. The fuel is burnt in the furnace under micro-positive pressure, and the high-temperature flue gas is turned back to the first flue pipe bundle 180° back through the return chamber, and the pressure-type front smoke box is further turned 180° into the second tube bundle, and the convection is exchanged. Heated into the atmosphere.

2, wave furnace: Oil Boiler Furnace is full corrugated furnace structure, enhance the disturbance of flue gas, increase the radiation heat transfer area; increase the stiffness of the furnace, weaken the expansion stress of the furnace; enhance the heat transfer effect, promote fuel in Burning in the furnace.

3, the unique welding process of the pipe and the tube sheet: the advanced technology of first pre-expansion and then full-welding, and then expansion, not only prevent the pipe gap corrosion, but also enhance the welding strength; the thread with high heat transfer coefficient The pipe is used to enhance the convective heat transfer effect, reduce the exhaust gas temperature, and improve the thermal efficiency of the boiler.

4, Symmetrical movement hinged front and rear smoke doors: easy to open, easy to overhaul and clean.

5, full butt weld, high reliability, maintenance costs.

6, The design of the rearview device is convenient for observing the combustion condition.

7, Designing various protection functions such as over-temperature, over-pressure, water shortage, leak detection, flameout, etc. The Oil Boiler Furnace operation is safe and reliable.

Oil Boiler Furnace Features:

1. It is more convenient, simpler and more time-saving.

2. High thermal efficiency and meeting national standards.

3. One-button operation, one-button operation fully automatic operation

4. Quality control to ensure product quality

5. Simple installation, one-stop service, saving trouble and effort.

6. Module combination, small size.

7. Low operating costs and more money.

8. Microcomputer control, sound and light alarm.

9. Multiple protection, safe operation.

10. The failure rate is low and the residue is small.

Oil Boiler Furnace datasheet
