Wet Type Gas Fired Steam Boiler Fire Tube Boiler And Water Tube Boiler
Wet Type Gas Fired Steam Boiler Fire Tube Boiler And Water Tube Boiler
Wet Type Gas Fired Steam Boiler Fire Tube Boiler And Water Tube Boiler
Wet Type Gas Fired Steam Boiler Fire Tube Boiler And Water Tube Boiler
Specifications
Brand Name :
YONGXING
Model Number :
WNS0.5TON TO 20TON
Certification :
ISO9001,ISO14001,A-CLASS
Place of Origin :
HENAN
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000SETS/MONTH
Delivery Time :
15-30DAYS
Packaging Details :
Nude packing+wooden box+steel box ,and etc.
FUEL :
NATURAL GAS/LPG/CITY GAS ,ETC
LOW NITROGEN :
support if customer request
USAGE :
Food,texitile,green house ,hotel and so on
PRESSURE :
0.7Mpa,1.0Mpa,1.25Mpa,1.6Mpa,2.5Mpa
Name :
Natural Gas Steam Boiler
Capacity :
2-15ton
Description

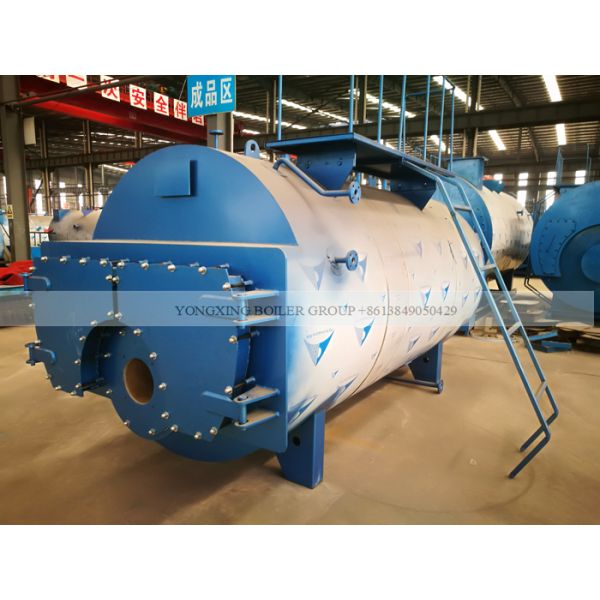

Our gas Boiler is a horizontal fire tube steam boiler.

The second and third return smoke pipes are washed by the high temperature flue gas, then the rear smoke chamber is discharged into the atmosphere by chimney.

The boiler is equipped with the front and rear smoke box cover to make the boiler easy to overhaul.Boiler burner configuration technology performance is good, the combustion proportional control automatically, automatic feed water adjust, start-stop, fully automatic operation and other advanced technology, and has high and low water level alarm and low water level, high steam pressure and flameout automatic protection function.

The boiler has the characteristics of compact structure, safe and reliable operation, rapid installation, low pollution, low noise and high efficiency.

The main technical index of WNS series fuel oil(gas) steam boiler developed by our company has reached the advanced world level.

It has a lot of advantages:


1) The type boiler adopts the international fashion THREE-RETURN structure,design large volume of combustion chamber,make burning more completely.
2) Use advanced WAVE-TYPE furnace structure,which increase the heat transfer area,and also satisfy free expansion after the furnace is heated.

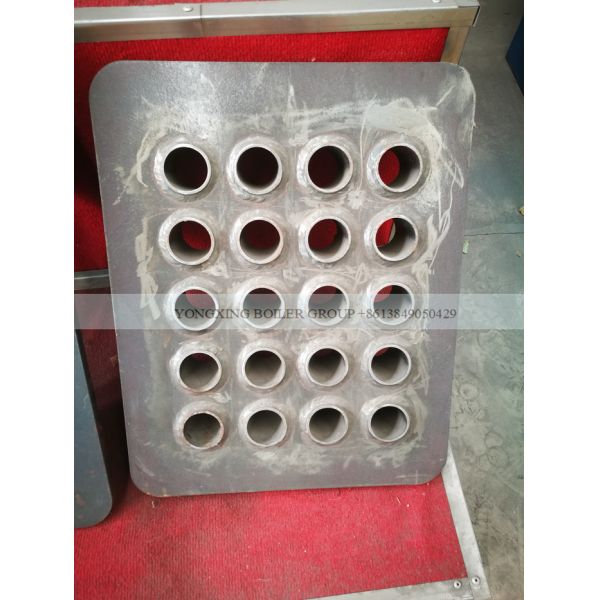

3) The smoke tube sue THREAD STRUCTURE ,strengthen the heat transfer effect.
4) Boiler adopt WET TYPE structure,all pull back edge butt weld,has high reliability ,low coast of maintenance.
5). The design of BACK SIGNT DEVICE is convenient for ovservation.
6) Design the protection function of super temperature,over pressure,water shortage ,leack detection,fire
extinction,fire extinction,this gurantee the safety of operation and reliable.
7) Boiler is package with three forms ,COLOR GRAIN BOAD,MIRROR STAINLESS STEEL,INFERIOR SMOOTH STAINLESS STEEL.By which promise the appearance is beatiful.
8) Boiler is configurate of imported burner like BALTUR,RIELLO,BENTON,and etc.With good performan of control to realize the automation of operation.
9) The type pf boilers has high thermal efficiency and stable output ,has strong adaptability on load.

Wet Type Gas Fired Steam Boiler Fire Tube Boiler And Water Tube Boiler

Wet Type Gas Fired Steam Boiler Fire Tube Boiler And Water Tube Boiler

WNS0.5-20ton boiler technical data sheet as follow (for reference only) :

Model Rated Rated working Rated steam Suitable Feed water
output pressure (Mpa) temperature (ºC) fuel kind temperature (ºC)
(t/h)
WNS0.5-0.7/1.0/1.25-YQ 0.5 0.7/1.0/1.25 170/184/194 heavy oil/light oil,natural gas/lpg/city gas 20
WNS0.7-0.7/1.0/1.25-YQ 0.7 0.7/1.0/1.25 170/184/194 20
WNS0.8-0.7/1.0/1.25-YQ 0.8 0.7/1.0/1.25 170/184/194 20
WNS1-0.7/1.0/1.25-YQ 1 0.7/1.0/1.25 170/184/194 20
WNS1.5-0.7/1.0/1.25-YQ 1.5 0.7/1.0/1.25 170/184/194 20
WNS2-1.0/1.25/1.6-YQ 2 1.0/1.25/1.6 184/194/204 20
WNS3-1.0/1.25/1.6-YQ 3 1.0/1.25/1.6 184/194/204 20
WNS4-1.0/1.25/1.6-YQ 4 1.0/1.25/1.6 184/194/204 20
WNS5-1.0/1.25/1.6-YQ 5 1.0/1.25/1.6 184/194/204 20
WNS6-1.0/1.25/1.6-YQ 6 1.0/1.25/1.6 184/194/204 20
WNS8-1.25/1.6-YQ 8 1.25/1.6 194/204 20
WNS10-1.25/1.6-YQ 10 1.25/1.6 194/204 20
WNS12-1.25/1.6-YQ 12 1.25/1.6 194/204 20
WNS15-1.25/1.6-YQ 15 1.25/1.6 194/204 20
WNS20-1.25/1.6-YQ 20 1.25/1.6 194/204 20
