Automatic Oil Fired Steam Boiler Industrial Low Pressure Hot Water Boiler
Automatic Oil Fired Steam Boiler Industrial Low Pressure Hot Water Boiler
Automatic Oil Fired Steam Boiler Industrial Low Pressure Hot Water Boiler
Automatic Oil Fired Steam Boiler Industrial Low Pressure Hot Water Boiler
Specifications
Brand Name :
YONGXING
Model Number :
WNS3-1.25-YQ
Certification :
ISO9001,ISO14001,A-CLASS，SGS,BV
Place of Origin :
HENAN
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000SETS/MONTH
Delivery Time :
15-30DAYS
Packaging Details :
Nude packing+wooden box+steel box ,and etc.
FUEL :
NATURAL GAS/LPG/CITY GAS ,ETC
LOW NITROGEN :
support if customer request
USAGE :
Food,texitile,green house ,hotel and so on
PRESSURE :
0.7Mpa,1.0Mpa,1.25Mpa,1.6Mpa,2.5Mpa
Outer Material :
Stainless steel or Color steel
Pressure :
Low pressure
Structure :
Fire Tube
Type :
Natural Circulation
Color :
Customer's Requirement
Name :
Automatic Oil Fired Steam Boiler
Description

Automatic Operation Gas and Oil industrial boilers Steam Boiler and Hot Water Boiler

Industrial boilers Features

1, The Industrial boilers water volume and gas space are large, and the load capacity is strong. The design of the reasonable pot device, the steam belt water rate is low, the household has higher requirements for steam quality.
2, the new thermal insulation material, light weight, less heat loss, good insulation performance.
3, the water level device uses stainless steel sensor, PTFE as insulation material. From the top, it is not easy to smear, the performance is reliable, and the life is long.
4, the front and rear smoke boxes are hinged connection, can be opened, and the maintenance is convenient and quick.
5, oxygen content adjustment: This function monitors the oxygen content in the flue gas, and transmits the data to the control in real time. Through computer intelligent analysis, the automatic equipment ratio makes it in a good working condition in real time, and the efficiency is large, so that it can be greatly Fuel consumption.

Industrial boilers technical data sheet as follow (for reference only) :

Project, unit and data, model WNS0.5-1-Y(Q) WNS1-1-Y(Q) WNS2-1-Y(Q) WNS3-1-Y(Q) WNS4-1.25-Y(Q) WNS5-1.25-Y(Q) WNS6-1.25-Y(Q) WNS8-1.25-Y(Q) WNS10-1.25-Y(Q)
Rated evaporation t/h 0.5 1 2 3 4 5 6 8 10
Rated steam pressure MPa 1 1 1 1 1.25 1.25 1.25 1.25 1.25
Rated steam temperature °C 184 184 184 184 194 194 194 194 194
Rated feed water temperature °C 20 20 20 20 20 20 105 105 105
Total heated area M2 15.4 30.7 60.9 90.5 124.7 128.3 136.3 187 217.6
exhaust temperature °C 230 230 230 230 220 220 220 220 220
Gas boiler efficiency % 91.78 91.44 91.77 92.14 92.3 92.03 92.15 91.87 92.29
Applicable fuel / Diesel, heavy oil, natural gas, liquefied gas, city gas
Diesel oil.Heavy oil.Natural gas.City gas
Ringman black / <1 level
Fuel consumption Diesel Kg/h 31.5 63 125.5 189 253 315 376 501 628
heavy oil Kg/h 33.02 66.99 131.72 197.55 263.12 328.55 394.26 525.57 680
natural gas Nm3/h 37.5 75 151 225 300 375 449 600 750
Liquefied gas Nm3/h 12.66 25.38 50.68 76.01 101.24 126.41 151.7 202.2 252.8
City gas Nm3/h 75 150 302 450 600 750 898 1200 1500
Boiler weight Empty furnace T 2.7 4.87 7.32 10.1 12.86 14.7 15.3 18.6 21.3
Full of water T 3.7 6.4 12.8 16 twenty two 24.7 25.5 32.5 38
using electric V 380V/50Hz
Main steam valve diameter (DN) Mm 50 65 65 100 100 125 125 150 150
Safety valve diameter (DN) Mm 50 50×2 50×2 50×2 50×2 80 50 80 50 80×2 80×2
Drain valve diameter (DN) Mm 40 40 40 40 40 40 40 40 40
Feed pump model SS JGGC1 JGGC2 JGGC2 JGGC4 JGGC4 JGGC6 JGGC8 JGGC12 JGGC12
Chimney caliber Mm Φ316 Φ316 Φ400 Φ530 Φ530 Φ530 Φ530 Φ680 Φ680

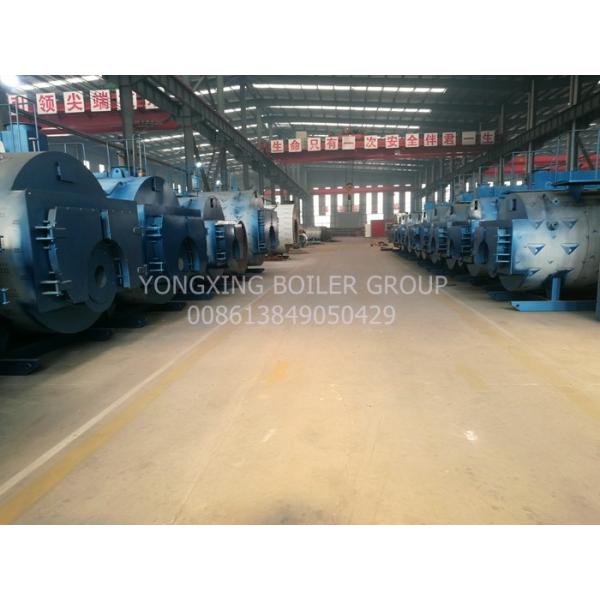

Industrial boilers in factory work shop :

Automatic Oil Fired Steam Boiler Industrial Low Pressure Hot Water Boiler
