Ultra-speed steel-tape armouring machine 0-800rpm rotation speed
Ultra-speed steel-tape armouring machine 0-800rpm rotation speed
Specifications
Brand Name :
Hopda
Model Number :
630
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
,L/C,D/A,T/T,D/P
Supply Ability :
8 sets/month
Delivery Time :
20-45 days
Packaging Details :
Standard package for cargo shipment
Applicable wire diameter :
Φ6 - 30 mm
Steel strip reel diameter :
Φ630 mm
Inner hole of steel strip reel: :
Φ120 mm
Maximum steel strip width: :
5-30mm
Steel strip thickness: :
≤0.4 mm
Steel strip head rotation speed: :
0–800 rpm
Steel strip pitch: :
stepless adjustment
Armoring motor: :
11 kW AC
Description

Product application:

Our armoring machine applies an armor layer (typically steel tape) to the cable structure during production. This process greatly enhances the cable’s mechanical protection—boosting tensile/compressive strength to withstand harsh outdoor fixed installations (e.g., direct burial, tunnel laying). With a compatible outer sheath, it also improves corrosion resistance in complex environments. Armoring is a vital step for cables used in demanding scenarios like outdoor fixed laying, industrial sites, or underground projects.


Technical specifications:

(1)Applicable wire diameter: Φ6 - 30 mm
(2)Steel strip reel diameter: Φ630 mm
(3)Inner hole of steel strip reel: 120 mm
(4)Maximum steel strip width: 5 - 30 mm
(5)Steel strip thickness: ≤0.4 mm
(6)Steel strip head rotation speed: 0–800 rpm
(7)Steel strip pitch: stepless adjustment
(8)Armoring motor: 11 kW AC
(9)Equipped with servo tension device.

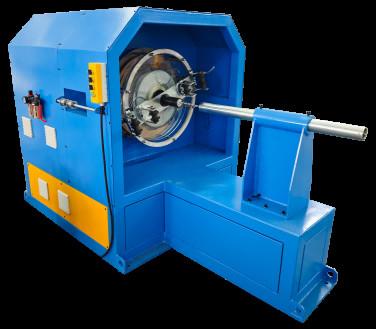

Product Image:

Ultra-speed steel-tape armouring machine 0-800rpm rotation speed
