Specifications
Brand Name :
Hopda
Model Number :
35-200 screw diameters
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10 set per month
Delivery Time :
30-60 days
Packaging Details :
Standard packaging, Cargo shipment
Screw :
90mm
L/D ratio :
25:1
Capacity (PVC) :
280kg/h
Capacity (LSZH) :
435kg/h
Capacity (HFFR) :
320kg/h
Capacity (XLPE) :
210kg/h
OD of outlet wire :
16-50mm
Power :
90-110kW
Description

90mm Cable extruder for insulation and inner and outer sheathing of cable and wire with PVC LSZH HFFR XLPE​

Application:

Our cable extruder series are designed to suit all kinds of cable for insulating and sheathing materials of PVC, PE, LSZH, XLPE with high speed and excellent consistency.

Feature:

  • Dedicated specialised screws for different insulating materials
  • Full PLC control with a user-friendly large touch screen interface

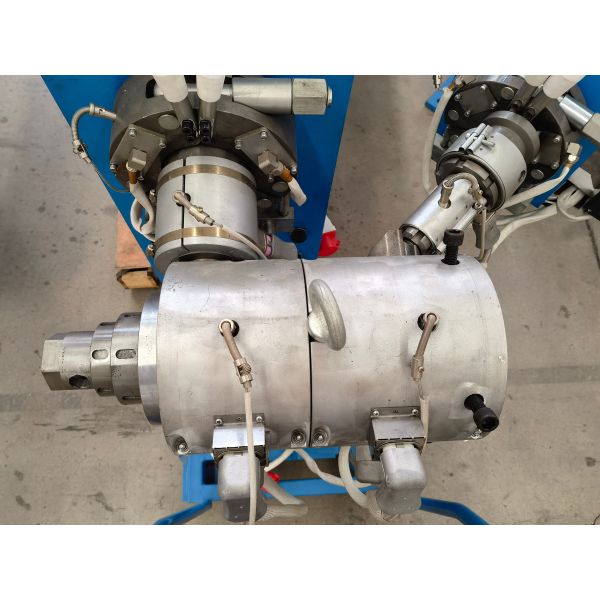

  • Fixed-center crosshead ensures insulation concentricity and uniform diameter
  • Real-time quality control via in-line detecting devices

Specification:

Model/specs HPD-35 HPD-45 HPD-50 HPD-65 HPD-70 HPD-80 HPD-90 HPD-100 HPD-120 HPD-150 HPD-200
Screw diameter (mm) Ø35 Ø45 Ø50 Ø65 Ø70 Ø80 Ø90 Ø100 Ø120 Ø150 Ø200
L/D ratio 18:1 25:1
Extrusion capacity
PE (kg/h) 25.5 68 85 148.75 170 246.5 340 442 637.5 977.5 1360
XLPE (kg/h) 22.5 60 75 131.25 150 217.5 300 390 562.5 862.5 1200
PVC(kg/h) 30 80 100 170 200 290 400 520 750 1150 1600
LSZH(kg/h) 30 85 110 190 220 315 435 565 810 1260 1740
HFFR(kg/h) 20 65 80 140 160 230 320 420 600 900 1300
Power (Kw) 15 15-22 18-30 30-45 37-55 55-75 90-110 110-132 160-185 185-250 280-355
Outlet wire diameter (mm) 0.2-1.0 0.5-3.0 0.8-5.0 1.5-8.0 5-25 16-35 16-50 20-80 30-80 40-140 50-200

Main components:

1. Pay-off (shaftless, end-type, portal type, double-bobbin)

2. Straightener

3. Pre-heater for copper wire

4. Extruder

5. Water tank

6. Diameter gauge

7. Spark tester

8. Meter counter

9. Horizontal accumulator

10. Capstan

11. Take-up

12. PLC control cabinet

Product Images:

Cable extrusion PVC PE XLPE HFFR insulation and sheathing lineCable extrusion PVC PE XLPE HFFR insulation and sheathing line

Q&A:

Q1: Can you export to the EU countries?
Ans: Yes! We are a CE-certified manufacturer.
Q2: Can you do PTFE, FEP, PFA extrusion lines?
Ans: Yes! We can modify our extrusion lines to meet any of our customers' requirements.
Q3: What are your key advantages compared to others?
Ans: As an ODM manufacturer, we have our own sheet metal, boring and precision machining lines, enabling us to provide customised solutions based on our customers' specific needs. We also offer both online and on-site technical support to resolve our clients' issues promptly.
Q4: How many years of warranty do you offer?
Ans: Typically, we offer a one-year warranty to our customers. However, we may extend this warranty period depending on the circumstances, especially for our new clients.
