Semi Servo Drive System Diaper Making Machine with Touch Screen Operation and 350 pcs/min Production Speed
Semi Servo Drive System Diaper Making Machine with Touch Screen Operation and 350 pcs/min Production Speed
Specifications
Brand Name :
HHD
Place of Origin :
Guangdong Province
MOQ :
1set
Price :
1000–200000USD
Payment Terms :
T/T 50% in advance,50% before shipment
Supply Ability :
150 sets / month
Delivery Time :
Within 20 days after downpayment
Packaging Details :
Export Packaging
Control System :
Touch Screen/ Button Operation
Frame Material :
High-Strength Steel
Noise Level :
≤ 80 DB
Humidity Range :
≤ 85% RH
Automation Level :
Semi-automatic
Description
Good Quality Semi Servo Baby Big Waistband Diaper Making Machine
Semi Servo Drive System Diaper Making Machine with Touch Screen Operation and 350 pcs/min Production Speed

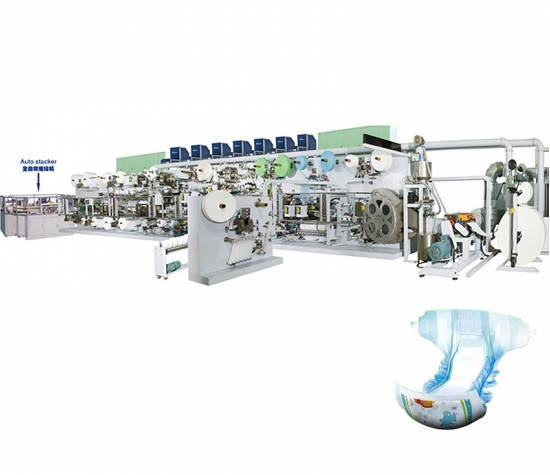

The Semi Servo Baby Big Waistband Diaper Making Machine is engineered for stable, efficient, and high-quality production of baby diapers featuring big waistband construction. This advanced manufacturing system incorporates a servo motor driving system integrated with PLC control and touch screen operation, ensuring precise control, user-friendly operation, and reliable performance.
The machine features a high-speed teeth-like crusher and web-wheel molding system, guaranteeing smooth shaping and consistent product quality. The SAP automatic adding system with precise dosage control enhances absorbency performance while minimizing material waste.
Raw material unwinding is managed by servo-driven unwinding units combined with automatic tension control and auto splicing, ensuring continuous high-speed production. The system includes automatic rejection of defective products, material exhaustion detection, and alarm systems for safe and reliable operation.
With phase adjustment during running without stopping, the production line offers exceptional flexibility and maximized uptime, making it an ideal solution for medium and large-scale baby diaper manufacturers.
Key Features
  • Semi servo drive system with high stability and cost efficiency
  • PLC control with user-friendly touch screen interface
  • High-speed teeth-like crushing system
  • SAP automatic adding with accurate amount control
  • Servo unwinding with automatic tension control and splicing
  • Automatic waste rejection and material shortage alarm
  • Phase adjustment during operation without stopping

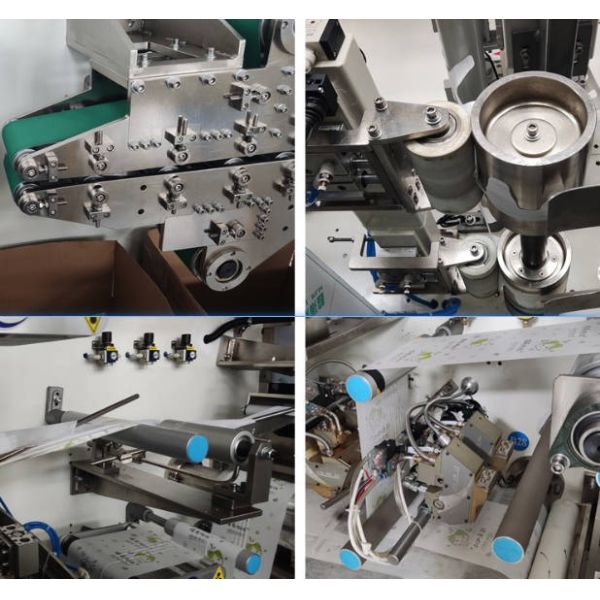

Product Detail Images
Semi Servo Drive System Diaper Making Machine with Touch Screen Operation and 350 pcs/min Production SpeedSemi Servo Drive System Diaper Making Machine with Touch Screen Operation and 350 pcs/min Production Speed
Main Technical Parameters - Baby Diaper Machine
Item Specification
Design Speed 400 pcs/min
Stable Production Speed 350 pcs/min
Product Size S / M / L / XL
Machine Dimensions (L×W×H) 30 × 3 × 5 m
Production Efficiency ≥ 88%
Rejection Rate ≤ 2%
Air Pressure Requirement 0.6 - 0.8 MPa
Power Supply 380V, 50Hz, 3 Phase, 8 Wire
Installed Power 250 kW
Machine Weight Approx. 70 tons
Operation Area (L×W×H) 33 × 8.2 × 4.5 m
Machine Direction Customizable
