USB Plug And Play Screen QR Code Scanner Handsfree Automatical Reading For POS Cashier
USB Plug And Play Screen QR Code Scanner Handsfree Automatical Reading For POS Cashier
USB Plug And Play Screen QR Code Scanner Handsfree Automatical Reading For POS Cashier
USB Plug And Play Screen QR Code Scanner Handsfree Automatical Reading For POS Cashier
USB Plug And Play Screen QR Code Scanner Handsfree Automatical Reading For POS Cashier
USB Plug And Play Screen QR Code Scanner Handsfree Automatical Reading For POS Cashier
Specifications
Brand Name :
HONORWAY
Model Number :
HW-5300
Certification :
CE ROHS FCC ISO9001
Place of Origin :
China
MOQ :
1
Price :
$8-10/pcs
Payment Terms :
T/T
Supply Ability :
30Kpcs per month
Delivery Time :
1-7days
Packaging Details :
Paper box
Product Name :
QR code reader
Resolution :
0.3MP,640*480 pixels
Scan type :
Hands free,auto scan
Interface :
USB plug and play
Shell Color :
White, can be customized
Materials :
PC Plastic
Feature :
Good cost-perform
Appilcation :
Scan QR code on smart phone for payment
Description

Screen QR Code Scanner Handsfree Automatical Reading QR Payment Reader For POS Cashier

Product Introduction

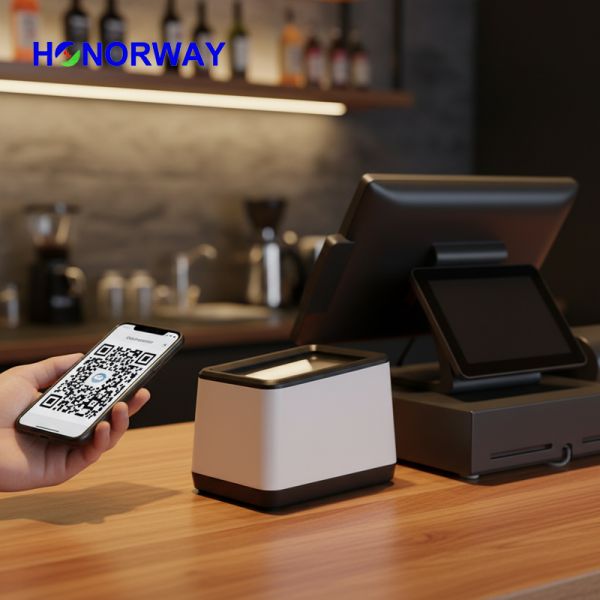

The HW-5300 is a desktop QR Payment Reader, primarily designed to connect with POS terminals for scanning mobile QR codes to process payments. Equipped with a USB interface, it supports plug-and-play functionality, eliminating the need for any driver installation. In China, this payment method has been widely adopted across supermarkets, grocery stores, restaurants and other scenarios.Key features of this product are as follows:

  1. Specialized in scanning mobile QR codes for payment scenarios
  2. Boasting a sleek white exterior and compact size, it looks elegant on the checkout counter without occupying excessive space
  3. Cost-effective advantage: it is significantly cheaper than traditional desktop barcode scanners
  4. Compatible with multiple operating systems including Windows, Android, Mac and more
  5. Offers customizable services such as shell color, logo, cable, label, model number and packaging box

Parameters List

Reading performance

Image Sensor

CMOS

Resolution

0.3MP 640*480pixels

Decoding capacity

Support paper and screen barcodes

2D: QR ,PDF417,Data Matrix etc.

1D: Code128, EAN-8, EAN-13,Interleaved 2 of 5,UPC-A, Code39,UPC-E0,UPC E1 etc.

Precision

8mil

Light Source

White LED

Scan Angle

Rotation360°,tilt±45°,skew±45°

Min Contrast

30%

Scanning Speed

200 times/s

Typical DOF

40-150mm(15mil code128)

30-180mm(20mil screenQR) 50-90mm(13mil PDF417)

Performance may be impacted by bar code quality and environmental conditions

Mechanical and electrical

Interface

USB HID

Working Voltage

DC 5V

Current

260mA(Max) 120mA(working) 2mA(standby)

Dimensions

L118*W85*H83mm

Weight

200g

Cable Length

1.5Meters

Indication

Buzzer & LED

Environment Request

Working Tem

-20~50℃

Storage Tem

-40~70℃

Humidity

5%-95%(Non-condensing)

Light Immunity

0~10,000Lux

Drop Test

1.5M

Application Scenarios

Leveraging its distinctive features, the HW-5300 is mainly used for mobile QR code payment collection. It is applicable to a broad spectrum of scenarios including supermarkets, grocery stores, restaurants, hospital bill payment, social security payment, gym membership point accumulation, hotel front desks, school canteens, meeting check-ins, libraries and beyond. In short, it is suitable for all occasions that require mobile QR code scanning, fully demonstrating its versatility.
