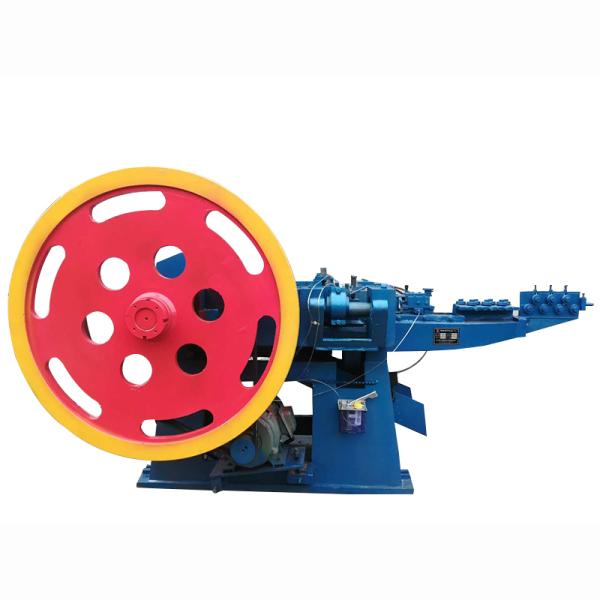

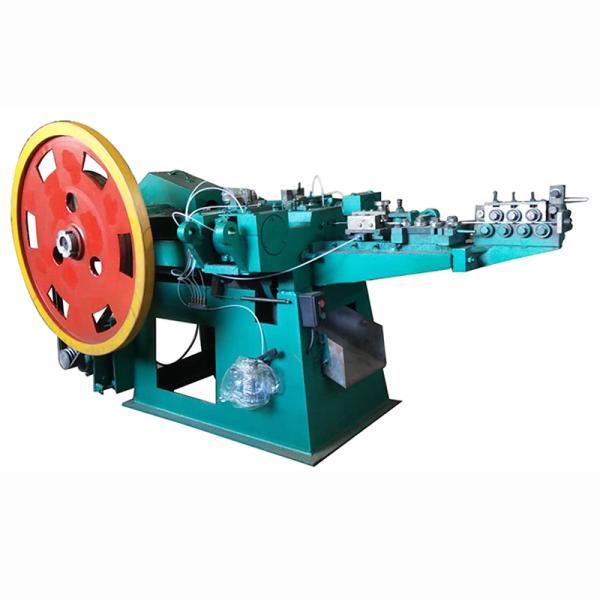

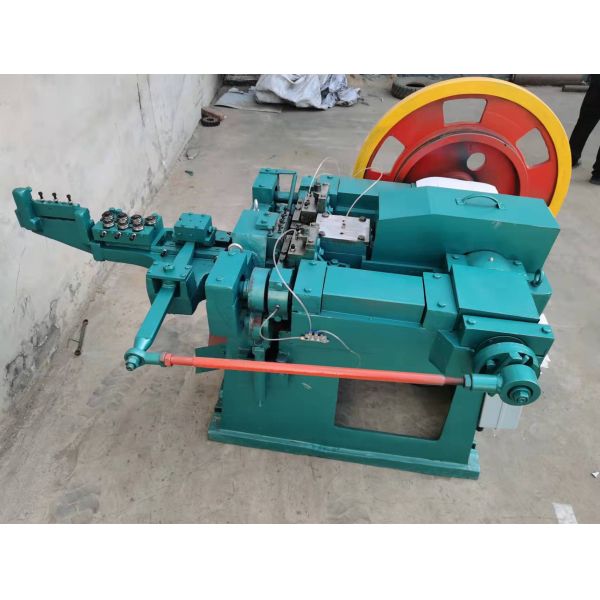

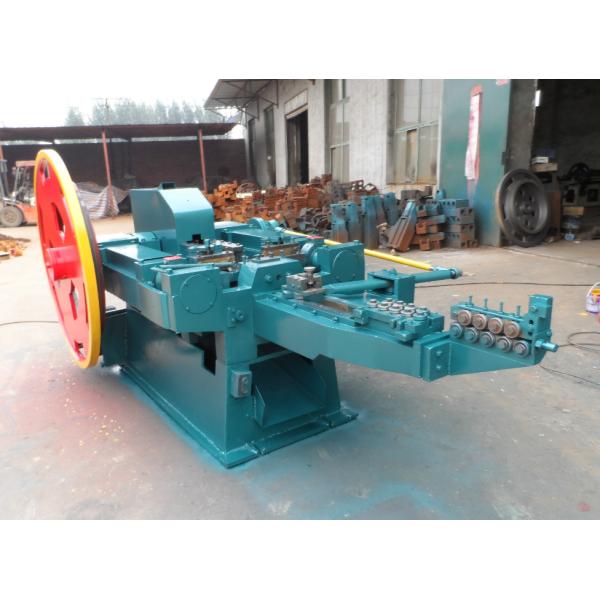

Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
Specifications
Condition :
New
Production Capacity :
320 roots per minute
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2022
Warranty of core components :
1 Year
Core Components :
Bearing, Motor
Place of Origin :
Henan, China
Brand Name :
hongshi
Warranty :
1 Year
Power (kW) :
2.2-4kw
Key Selling Points :
Automatic
Weight (KG) :
800 KG
Applicable Industries :
Manufacturing Plant, Nail Making Machine
Showroom Location :
Kenya, Nigeria

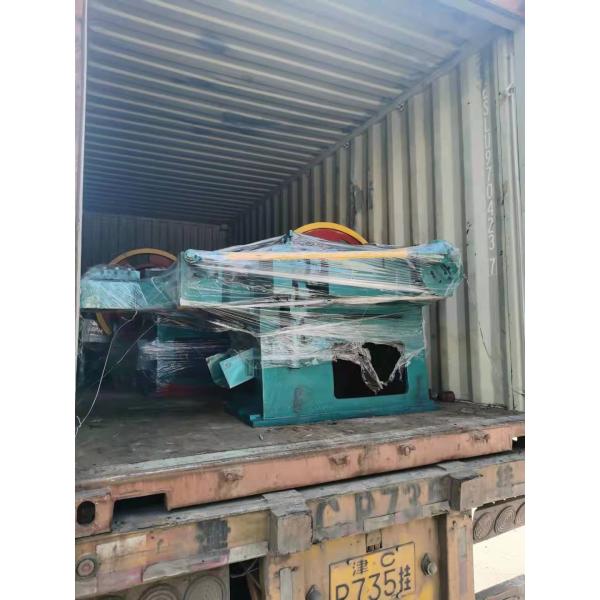

Packaging Details :
nail machine packing:wooden box package
Port :
Qingdao,Shanghai,Ningbo port for quilting making machine
Supply Ability :
100 Set/Sets per Month Machannical Quilting Machine For Sofa Mattresses Blankets
Price :
$2,762.00/Sets >=1 Sets
Description
Product Overview

z9-2c wire nail making machine

The working principle of nail making machine
Each small nail is made of the same diameter as the nail rod is a disc round wire through the nail-making machine straightening, stamping, wire feeding, clamping, shearing, stamping and other circular motion produced. Every step in this process is very important.
The stamping movement of nail making machine is driven by the rotating movement of the spindle (eccentric shaft) connecting rod and punching rod to form reciprocating movement, so as to implement the stamping movement. The clamping movement is made up of the pay shaft on both sides (also eccentric shaft) and the rotation of the CAM on the clamping rod repeated pressure, so that the clamping rod swings around, and the active nail mold is clamped and relaxed to complete a cycle of wire clamping movement. When the spindle rotates, it drives the small connecting rod on both sides to rotate so that the knife tire box on both sides reciprocates, and the cutter fixed in the knife tire box realizes shear motion. The wire of nail making can produce plastic deformation or separation by punching rod, clamping mould and cutting knife, so as to obtain the shape of nail cap, nail tip and nail size
FEATURES AT A GLANCE
Stamping process of nail quality stability, high production efficiency, and easy to operate, to achieve the automation of nail
machine, mechanization, greatly reduce the cost of nail production. Therefore, the precision and structure of the main shaft,
paying shaft, punching rod, die and tool directly affect the nail forming and precision.
Automatic high speed nail making machine
Automatic high speed nail making machine
Right elevation
Automatic high speed nail making machine
Left elevation
Automatic high speed nail making machine
Front elevation
PRODUCT SPECIFICATIONS
No
制钉机型号
z9-1c
z9-2c
z9-3c
z9-4c
z9-5c
1
Nail-making range
9-25mm
16-50mm
25-70mm
40-110mm
60-150mm
2
Maximum diameter
1.6mm
2.5mm
3.5mm
5.0mm
5.5mm
3
Nning speed
500/min
320/min
280/min
200/min
200/min
4
Operating Machine Weight
400kg
800kg
1100kg
1900kg
2200kg
5
power of motor
1.5kw
2.2kw-4kw
3.0kw-4kw
4.0kw-4kw
5.5kw-4kw
6
outline dimension
1150*840*900mm
1650*1150*1100mm
1900*1200*1200mm
2300*1390*1345mm
2400*1400*1350mm
7
8

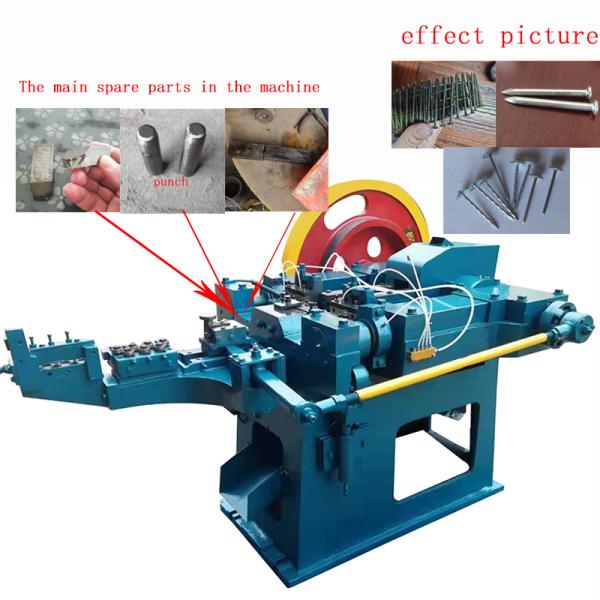

effect picture
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine

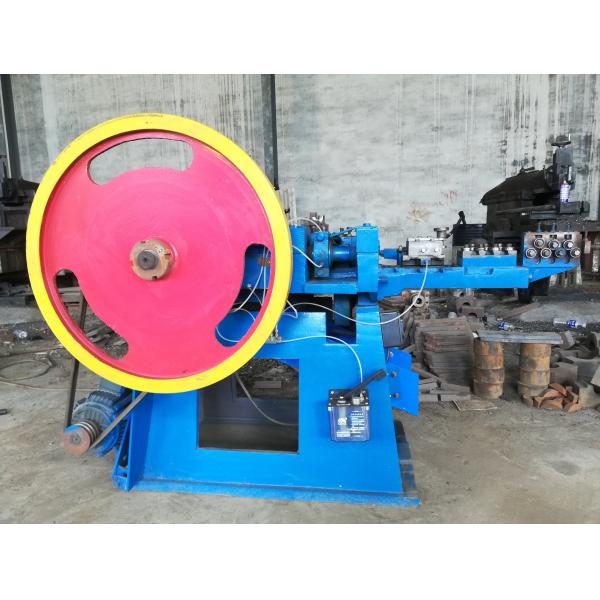

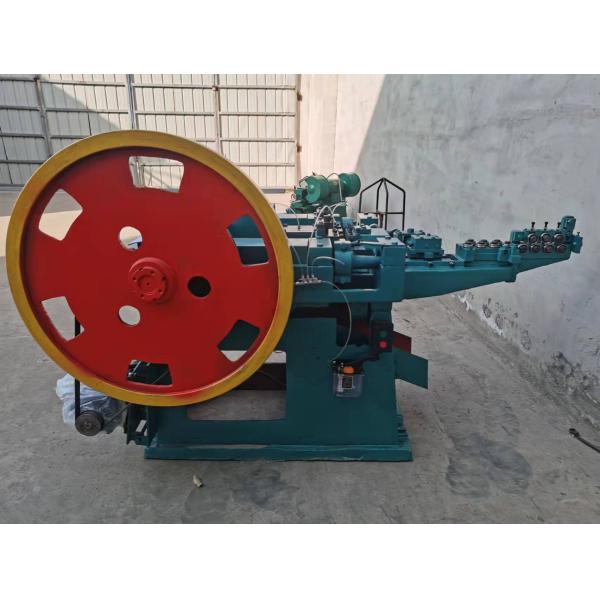

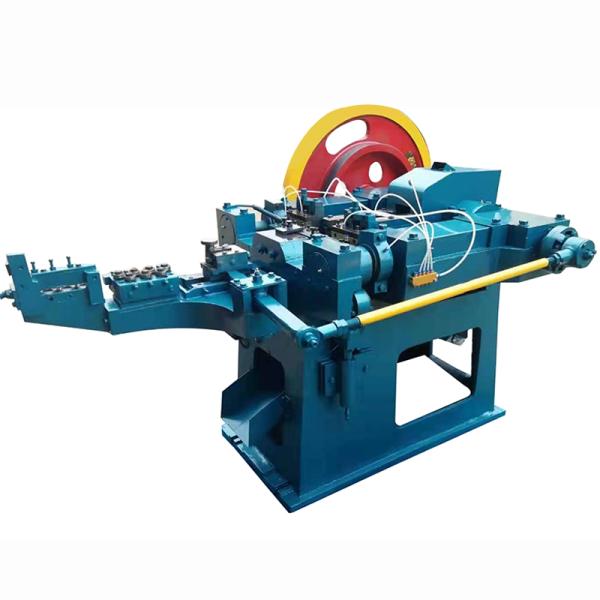

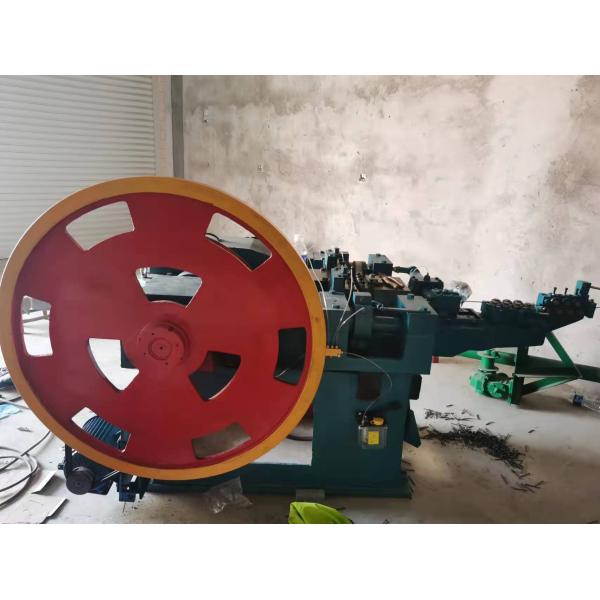

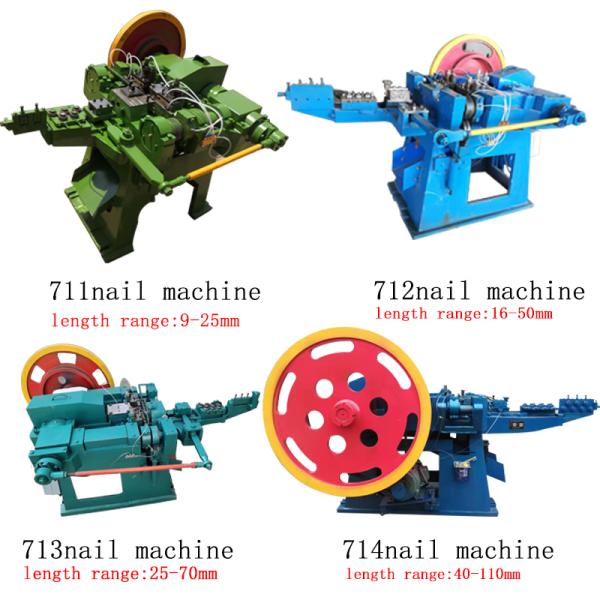

Product Picture Show

z9-1c picture
Automatic high speed nail making machine
Automatic high speed nail making machine

z9-2c picture
Automatic high speed nail making machine
Automatic high speed nail making machine

z9-3c picture
Automatic high speed nail making machine
Automatic high speed nail making machine

z9-4c picture
Automatic high speed nail making machine
Automatic high speed nail making machine

z9-5c picture
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
Automatic high speed nail making machine
FAQ
1.who are we?

We are based in Henan, China, start from 2008,sell to Africa(40.00%),Mid East(25.00%),Eastern Europe(25.00%),Southeast
Asia(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Agriculture Machinery,Food Machinery,Wood Processing Machinery,Briquette Press Machinery

4. why should you buy from us not from other suppliers?

null

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Russian
