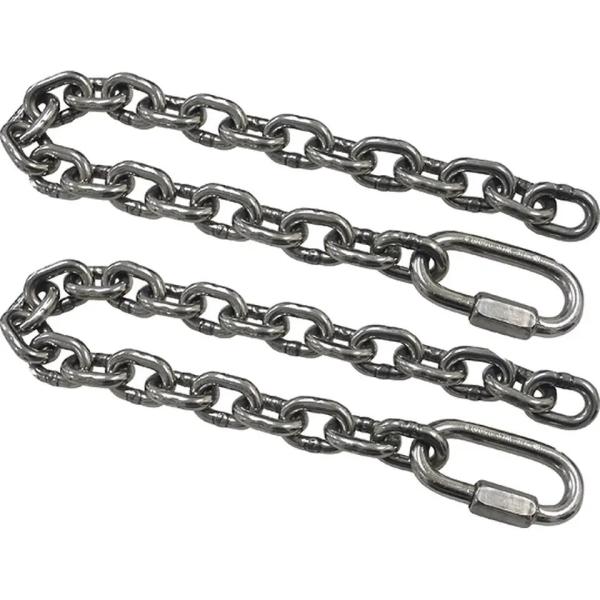

Transmission Chain Welded Structure AISI 304/ 316 Stainless Steel DIN763 Din766 Chain
Transmission Chain Welded Structure AISI 304/ 316 Stainless Steel DIN763 Din766 Chain
Transmission Chain Welded Structure AISI 304/ 316 Stainless Steel DIN763 Din766 Chain
Transmission Chain Welded Structure AISI 304/ 316 Stainless Steel DIN763 Din766 Chain
Transmission Chain Welded Structure AISI 304/ 316 Stainless Steel DIN763 Din766 Chain
Transmission Chain Welded Structure AISI 304/ 316 Stainless Steel DIN763 Din766 Chain
Specifications
Finish :
polish, Galvanized, Black painted, Self color, Polishing, Powder coated
Place of Origin :
China
Brand Name :
Honghao
Model Number :
HHXX-363
Structure :
Welded Chain
Function :
Transmission Chain
Standard or Nonstandard :
Standard
Material :
Stainless steel
Application :
Electric power, metallurgy, petroleum, machinery, chemical industry
Packaging Details :
Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box or as per customer's requirements
Supply Ability :
30 Ton/Tons per Month
MOQ :
1 PC
Price :
$1.00/meters >=1000 meters
Description
Specification
Place of Origin
China
Brand
Honghao
Material:
Stainless Steel( 316,304), Alloy Steel,Carbon Steel.
Surface:
Hot Dipped; Zinc Plated or Galvanized, self-colour,
Colorful Painted,Mirror Polished, Black coated or painted
Standard:
DIN766;DIN763;DIN5685A;DIN5685C;
Short/Medium/Long Link Chain;
ASTM80/NACM96 high tensile chain
Australian,ASTM(G30,G43,G70,G80),Norwegian,Korean,US,double loop chain,Japanese etc.
Package:
1. Plastic reel, then carton and strong pallet
2.Iron or plastic drum, then wooden pallet
3. Gunny bag with labels, the strong pallet
4. Gunnuy bag, then wooden box.
Usage:
Lifting and connecting, Hoist; Elevator
Product Description
1. Material: 300 series stainless steel
2. Standard: Australian /AISI
3. Diameter: 3mm to 24mm
4. Breaking load: 0.06MT - 5.31MT
5. Welding type: argon-arc welding
6. Application: marine link chain, transmission, etc.
Type
Chain size
Working load
Dimension
S
R
F
mm
MT
mm
mm
mm
Middle link chain
3
0.06
3.15
15.7
13.1
4
0.11
4
18.6
16
5
0.19
5
22
19.4
6
0.32
6.3
26.1
23.5
8
0.53
8
32.2
29.5
10
0.83
10
39.1
36.2
12
1.35
12
46
44
13
1.5
13
49.1
46.1
16
2.31
16
59.6
56.5
20
3.67
20
73.3
70
24
5.31
24
87
83.6
Transmission Chain Welded Structure AISI 304/ 316 Stainless Steel DIN763 Din766 Chain
Transmission Chain Welded Structure AISI 304/ 316 Stainless Steel DIN763 Din766 Chain
Recommend Products
Packing & Delivery
Transmission Chain Welded Structure AISI 304/ 316 Stainless Steel DIN763 Din766 Chain
Transmission Chain Welded Structure AISI 304/ 316 Stainless Steel DIN763 Din766 Chain
Company Profile
Transmission Chain Welded Structure AISI 304/ 316 Stainless Steel DIN763 Din766 Chain
We have been in the line of international business for more than 15 years.
FAQ
1. who are we?
We are based in Chongqing, China, start from 2022,sell to North America(25.00%),Eastern Asia(20.00%),Southeast Asia(20.00%),South America(10.00%),Mid East(10.00%),Oceania(5.00%),Central America(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Electric Cars,New Energy Vehicle,EV car

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: null;
Language Spoken:English,Chinese
Product tags

din763 steel chain

,

din603 carriage bolts

,

din 766 chain
