Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Specifications
Description
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Product Description
This BCGF series bottling machine, incorporates rinsing, filling and capping. into one and is a kind of full-automatic equipment.It is innovated and designed in the requirement of beer, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy. BCGF series glass beer filling machine is used to filling all kinds of beer, purified beer into glass bolttes. Machine replacement for PET bottles and cans.Different models can satisfy various requirement of output from 500B/H to 10000B/H.

The whole process of beer filling production line is automatic.
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Main Technical Parameters
Take water as the main parameter for reference, other liquids, please contact customer service for details
All machines could be customized , we could design design and produce machines according to your request.
Model
BCGF8-6-1
BCGF14-12-4
BCGF18-18-6
BCGF24-24-8
Production capacity
500BPH(330ml)
1000BPH(500ml)
2000BPH(500ml)
3000BPH(500ml)
Washing heads
8
14
18
24
Filling heads
6
12
18
24
Capping heads
1
4
6
6
Suitable bottle
Grass bottle
PET bottle,
Plastic bottle
PET bottle,
Plastic bottle
PET bottle,
Plastic bottle
Diameter of bottle
52-84mm
50-110mm
50-110mm
50-110mm
Height of bottle
200-350mm
150-310mm
150-310mm
150-310mm
Suitable cap
Crown cap Aluminum screw cap, 28-40 (can be customized, according to customer needs)
Plastic screw cap
Plastic screw cap
Plastic screw cap
Weight
1300KG
2500KG
3000KG
4000KG
Main motor power
1.5KW
1.5KW
3KW
3KW
Dimension(mm)
1520*1125*2350
1900*1700*2500
2500*1800*2300
2710*2100*2500
This Production Line is a whole Automatic water filling capping machine production line solution;
The Machine Type, Number Of Machines, Speed, Capacity, Size, Etc. Of The Production Line Would Be Customized According To The Customer'S Production Needs; We Can Develop A Professional Integrated Filling And Packaging Production Line Plan For The Customer.
Please contact us to confirm the product parameter before payment.
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line

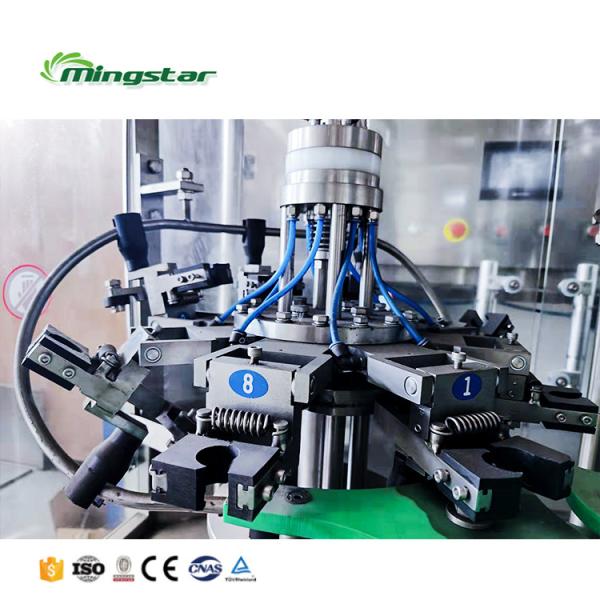

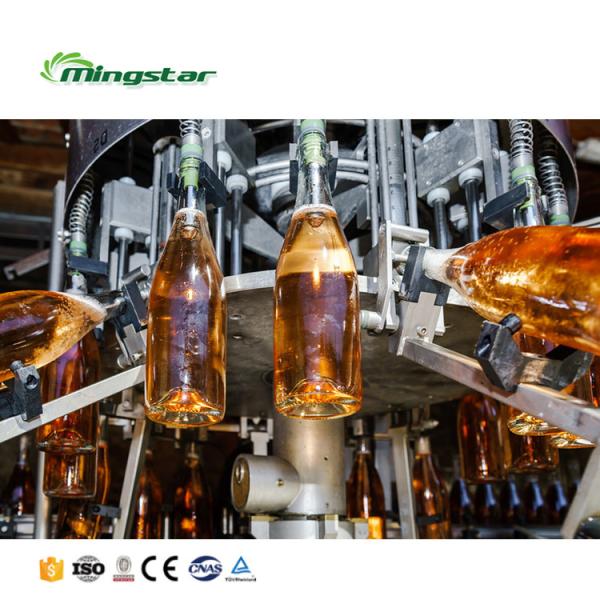

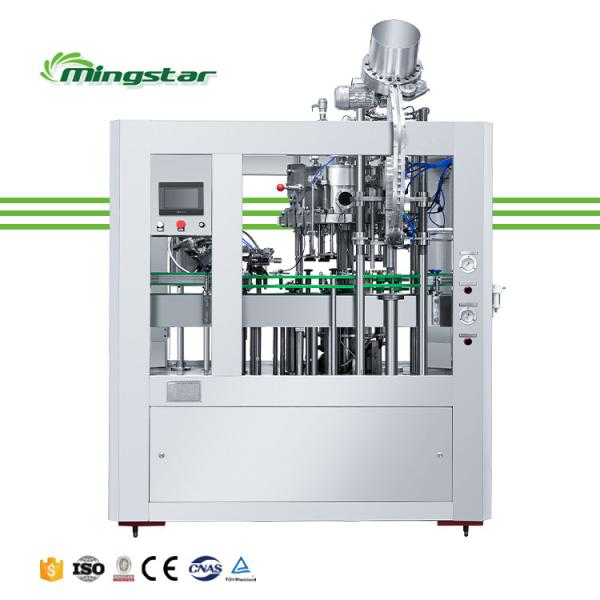

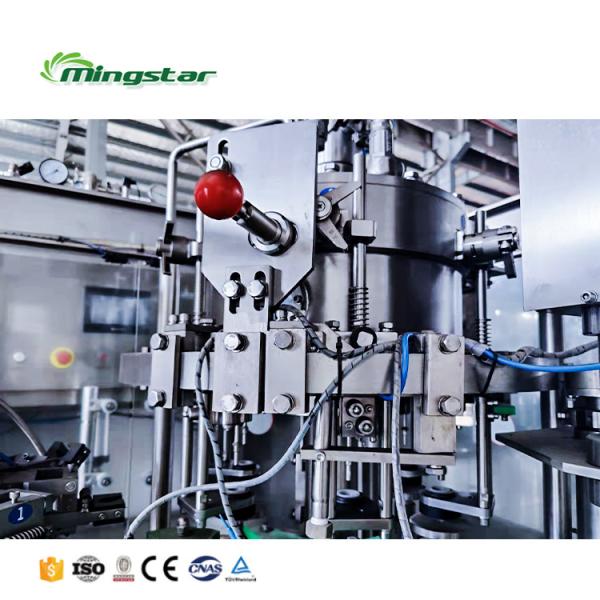

Detailed Images
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Related Products
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
1.Bottle Blowing Machine
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
2.Water Treatment System
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
3.Water Filling Machine
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
4.Bottle Labeling Machine
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
5.Bottle Packing Machine
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
6.Beverage Solution
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Related Products
What We Offer?
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line

Consultation Service

Filling Machine Choosing
Filling Machine Customization
Filling Line Updating
Turn-Key Solution
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line

Manufacture & Test Service

Filling Machine Stress Testing
Packing & Logistic
SGS Certification
Technical Support
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line

After Sales Service

Installation & Worker Training
Technical Support Online
Annual Diagnosis & Updating
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line

Optional Value-added Service

Agent Recruitment Programme
Client Guarantee Programme
Customer Development Programme
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line

Label Design.

We can provide the label design
according to the bottle size, the
icon style you want.

Bottle Design.

Our designers can design bottle
styles according to your
requirement.

Machine Layout.

We will design andconfirm the
machine layout according to
your factory sketch.
Partner Customers
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market.
We have been producing our goods with mature techniques and first-class quality.
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
With years of export experience along with excellent quality, advanced services and competitive prices, Mingstar has won numerous customers' trust and support.
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Packing& Delivery
Liquid Filling Glass Bottle Machine Automatic Beer Filling Machine Line
Packing Details : Plastic film and wooden case packaging, double protection Delivery Details : Delivery within 30 days by sea Two years warranty after receiving the equipment .
FAQ

Q:HOW TO ENSURE THE QUALITY OF FILLING MACHINE?

※In order to ensure the accuracy of each part, we are equipped with a variety of professional processing
equipment.
※Each component before assembly needs strictly control by inspecting personnel.
※Each assembly is in charged by a master who has working experience for more than 6 years.
※After all the machines are completed, we will connect them together and run the full production line
for at least 12 hours to ensure the stable running in clients' factory.
※We offer whole filling line testing production service in our factory for hours by request.

Q: WHAT WARRANTY OF FILLING MACHINE CAN I GET FROM MINGSTAR?

※Two years warranty after receiving the equipment . Free spare parts and technical supports.
※New client guarantee programme offers longer warranty and customized after service.
※Local after service network is under construction.
※Annual engineer visiting for diagnosis and updating service.

Q: ANY OTHER QUESTIONS?

※Send inquiry to Mingstar.
※Chat now through Alibaba APP.
※Call us or reserve a call.
