Diamond Pattern Treadplate Aluminium Honeycomb Panel with Edge Folded for the Lifter Flooring Use

Product Description

Diamond Pattern Treadplate Aluminium Honeycomb Panel with Edge Folded for the Lifter Flooring Use possesses light weight and high strength properties. For the industrial lifter, if the self weight lowers, then the lifter can load more goods if the strength of the lifter panel is increased. The weight of a general aluminum honeycomb panel with a 1 mm thickness panel for the both surface plates is only 6 kg/m2 for a panel of a total thickness of 15mm. The weight of the aluminium honeycomb panel is only 1/5 of the aluminum veneer of the same stiffness, and 1/10 of the steel plate. Because of the I-shaped cell beams distributed in the whole area of the panel, the honeycomb panel is more stable. Further to this, as the treadplate pattern on the surface, it can help to improve the anti-slip functions then the safety of the goods and workers in the lifter can be far more secured.

Features

The center material is aluminum hexagonal honeycomb with a small density (about 3 to 7 kg per square meter), about 1/5 of the weight of wood with the same area and thickness, 1/6 of the glass, 1/7 of solid aluminium, which greatly reduced the building load and construction cost. Thanks to the air contained in the core, the panel can be sound and thermal insulated. Because of no combustible material contained, the fire rating can be at least B1 level. The panel performs well also on waterproof, moisture-proof, no harmful gas release, with a high unit mass of the specific strength and stiffness, not easy to deformation, completely overcoming the collapse and deformation in the center area if with large panel. The panel edge can be cut depending on real conditions. The PVDF coating can guarantee the product life more than 30 years.

After surface treated with corrosion resistant fluorocarbon resin, it can be widely used on curtain wall, roof, large façade, signs and interior decoration. The front plate of the aluminum honeycomb panel is painted with E. C. C. A. quality standards PVDF fluorocarbon paint with ordinary color or metallic color, so the surface has excellent weather resistance.

In case of heavy rain, there is particularly large noise when the raindrops hit the aluminum veneer or aluminum-plastic panel, while honeycomb panel can avoid this situation. Aluminum honeycomb panels are generally made of fluorocarbon coated aluminum plates. The continuous roller coating with PVDF material is the most important point to avoid color difference and flat coating film. Based on this, it can keep the exterior building with bright color for long time.

Mechanical Properties

Application:

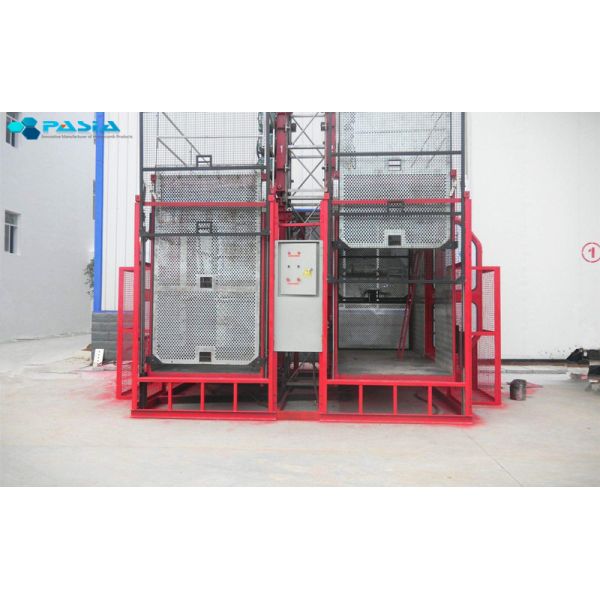

Both for the industrial lifters and public lifters
