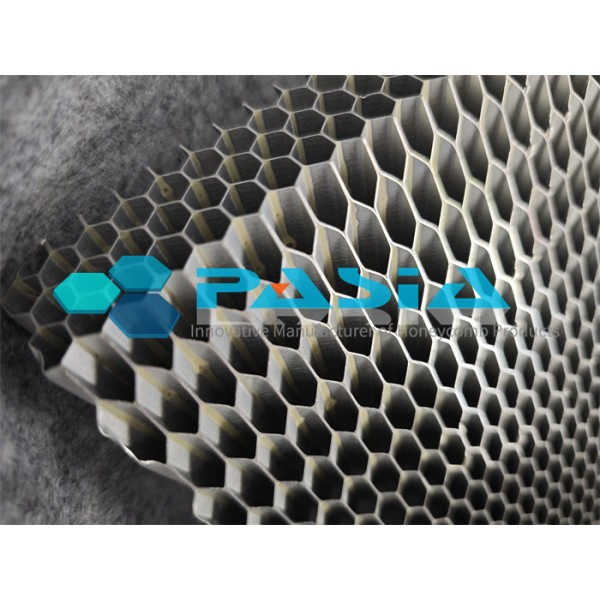

Flame Retardant Lightweigt Honeycomb Energy Absorber with High Heat Dissipation Pyramidal Structure Handling 15 KW/m² for Aerospace Chamber Lining
Flame Retardant Lightweigt Honeycomb Energy Absorber with High Heat Dissipation Pyramidal Structure Handling 15 KW/m² for Aerospace Chamber Lining
Flame Retardant Lightweigt Honeycomb Energy Absorber with High Heat Dissipation Pyramidal Structure Handling 15 KW/m² for Aerospace Chamber Lining
Flame Retardant Lightweigt Honeycomb Energy Absorber with High Heat Dissipation Pyramidal Structure Handling 15 KW/m² for Aerospace Chamber Lining
Flame Retardant Lightweigt Honeycomb Energy Absorber with High Heat Dissipation Pyramidal Structure Handling 15 KW/m² for Aerospace Chamber Lining
Flame Retardant Lightweigt Honeycomb Energy Absorber with High Heat Dissipation Pyramidal Structure Handling 15 KW/m² for Aerospace Chamber Lining
Specifications
Model Number :
PAHEAIU-2501
MOQ :
100 M2 for customized order and no request for stocked goods
Delivery Time :
within 4 weeks for one 20' container loading
Thickness :
25 mm or customized
Price :
Negotiable
Surface Treated :
anodized
Application :
Nuclear power plant
Packaging Details :
Export Package
Payment Terms :
L/C, T/T
Size in mm*mm :
900*1500
Product Name :
energy absorber
Supply Ability :
180,000 square meters per year
Foil thickness :
0.05mm
Brand Name :
PASIA
Certification :
ISO9001-2008
Place of Origin :
P. R. China
Description

Flame Retardant Lightweigt Honeycomb Energy Absorber with High Heat Dissipation Pyramidal Structure Handling 15 KW/m² for Aerospace Chamber Lining

Pasia Industries, a professional advanced honeycomb core innovator and manufacturer, delivers versatile honeycomb-based products to the global market with more than 20 years of experience.

The Flame Retardant Lightweight Honeycomb Energy Absorber is a high-performance pyramidal absorber engineered for high-energy areas of aerospace chambers and test facilities. Featuring a hollow, pyramidal honeycomb architecture, this absorber delivers rapid heat dissipation, exceptional fire retardancy, and lightweight construction—making it the ideal solution for aerospace chamber lining applications where thermal management, safety, and weight efficiency are paramount.

Aerospace Chamber Lining Application

These high-power absorbers are specifically designed for high-energy areas of chambers and equipment, with primary applications including:

· Aerospace & Defense test chambers
· Radar and communications antenna testing facilities
· Electromagnetic compatibility (EMC) test environments
· Academic and research institute laboratories

Chambers can be partially or fully lined depending on specific testing requirements.

Specifications:

Pasia Honeycomb Energy Absorbers can be supplied based on the cell size, foil thickness and layer, aluminum grade, width and length etc. The shape and parts can be also customized as per the request from client. The crush strength can be achieved on the performance of the foil thickness and special structure.

Density Range (pound per cubic foot) Cell size range (diameter inch) Alloy Foil thickness (mm) Foil layers
1-10 1/8, 1/4, 3/8, 3/4, 3/16 etc 3003/5052 0.04, 0.05, 0.06, 0.08, 0.1 Single, double or triple

Sample Lot Specification D1.5-(0.05+0.05)-3003
Client Standard
Required Value Conclusion Plain Crushing Strength: 9.6MPa
Tested By Time

Testing Item: Aluminum Honeycomb Plain Crushing Strength

Testing Data

Serial Sample Name Width(mm) Length(mm) Maximum Loading(N) Crushing Strength(MPa)
Aluminum Honeycomb Core 49.0 48.0 27487.99 9.70
Aluminum Honeycomb Core 50.0 48.0 31790.69 9.57
Aluminum Honeycomb Core 48.0 48.0 24778.45 9.59
Aluminum Honeycomb Core 48.0 50.0 30205.60 9.52
Max Value 50.0 50.0 31790.69 9.70
Min Value 48.0 48.0 24778.45 9.52
X-bar 48.8 48.5 28565.68 9.60

Testing Curve:

Flame Retardant Lightweigt Honeycomb Energy Absorber with High Heat Dissipation Pyramidal Structure Handling 15 KW/m² for Aerospace Chamber Lining
