Specifications
Certification :
ISO9001:2008
Application :
Architectural Interior Ceilings
Model Number :
GLM-PMC
Color :
RAL Color, Wood-grain, Customized Colors
MOQ :
280 pieces
Delivery Time :
5-15 work days
Function :
Fireproof, Waterproof, Sound Insulation and Eco-friendly
Surface Treatment :
Powered Coating/Roller Coating
Payment Terms :
T/T,L/C,FOB,CIF
Specification :
Common Size 1220*2440mm and Customized
Price :
26-90 USDS per piece
Material :
Aluminum Panels and Honeycomb Core
Supply Ability :
10000 pieces per month
Aluminum Thickness :
0.35mm-1.2mm
Brand Name :
Guelinmen
Product Name :
Aluminum Ceiling Panel
Packaging Details :
Protective film, wooden frame
Style :
Lay-in/Clip-in
Place of Origin :
Guangzhou China
Panel Thickness :
350~650mm
Description

Glue-free Polymer Membrane Ceiling Honeycomb Panel Wholesale Supplier

Our aluminum ceiling panels are designed to blend practicality with artistic appeal, suitable for a wide range of applications including hotels, shopping malls, offices, airports, and residential spaces. Available in diverse styles, surface finishes, and custom designs, they can be tailored to complement any interior decor, adding a touch of sophistication and modernity. With easy maintenance, recyclable properties, and excellent acoustic and thermal insulation options, our aluminum ceiling panels.

Main Advantages

1. Fire Resistance and Moisture Resistance: Ensures safety and durability in wet environments.

2. Sound-Absorbing and Mould-Proof: Reduces noise and prevents mold growth.

3. Water Resistance: Keeps ceilings dry and damage-free in humid conditions.

4. Antibacterial and Antistatic: Maintains cleanliness and prevents static buildup.

5. Easy Installation: Quick and straightforward setup process.


Key attributes

Product Name Aluminum Ceiling panel
Brand Name Guilinmen
Usage Interior Architectural Ceilings
Surface treatment PVDF painting/power painting/heat transfer/anodizing
Color RAL Color, Wood-grain, Customized Colors
Core Structure Hexagonal Aluminum Honeycomb Core
Materials Panel:Aluminum 3003H24, 5052AH14/ honeycomb core: Aluminum 3003
Thickness 7mm – 50mm and Customized
Size Common size:1220mm×2440mm, Customized size
Warranty More than 10 years
Production capacity 100000 Square Meters/month
After-sale Service Technical support for installation

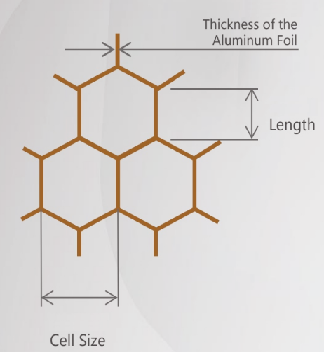

Characters of Honeycomb Aluminum
Parameter Specification
Aluminum Alloy AA3003 H18, AA5052 H18
Total Panel Thickness 4mm,8mm,10mm,15mm,25mm,Max 500mm
Aluminum Skin Thickness 0.5mm,0.8mm,1mm,1.5mm,Max 3mm
Coating Fluorocarbon coating, Flim, Spray coating, Melamine paper PP. Flame-retardant sheet, PVDF, PE, Anodized, MillFinished, Embossed, Granite etc
Length 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm
Width 1000mm, 1220mm, 125Omm, 1500mm, Max 2200mm
Honeycomb Core Foil Thickness 0. 02mm, 0. 04mm, 0. 05mm, 0. 06mm, 0. 08mm Max 0. 1mm
Honeycomb Core Cell Size licro-ApertureHoneycomb:1/10" (2. 6mm), 1/8" (3.17mm),1/6" (3. 47mm), 1/5" (5.2mm), Regular Honeycomb:1/4" (6. 35mm),1/3° (8. 47mm),3/8" (9.53mm),1/2" (12.7mm),3/4" (19.05mm),4/5" (20.32mm),1*(25.9m)
Honeycomb Core Cell Length Micro-Aperture Honeycomb:1. 5mm, 1. 83mm, 2mm, 2.5mm, 3mm,
RegularHoneycomb: 4mm, 5mm, 6mm, 7. 5mm, 1Omm, 12mm, 15mm
Edge Close Edge, Open Edge

Glue Free Polymer Membrane Ceiling Honeycomb Panel Sound Insulation

Glue Free Polymer Membrane Ceiling Honeycomb Panel Sound Insulation

Glue Free Polymer Membrane Ceiling Honeycomb Panel Sound Insulation

Glue Free Polymer Membrane Ceiling Honeycomb Panel Sound Insulation

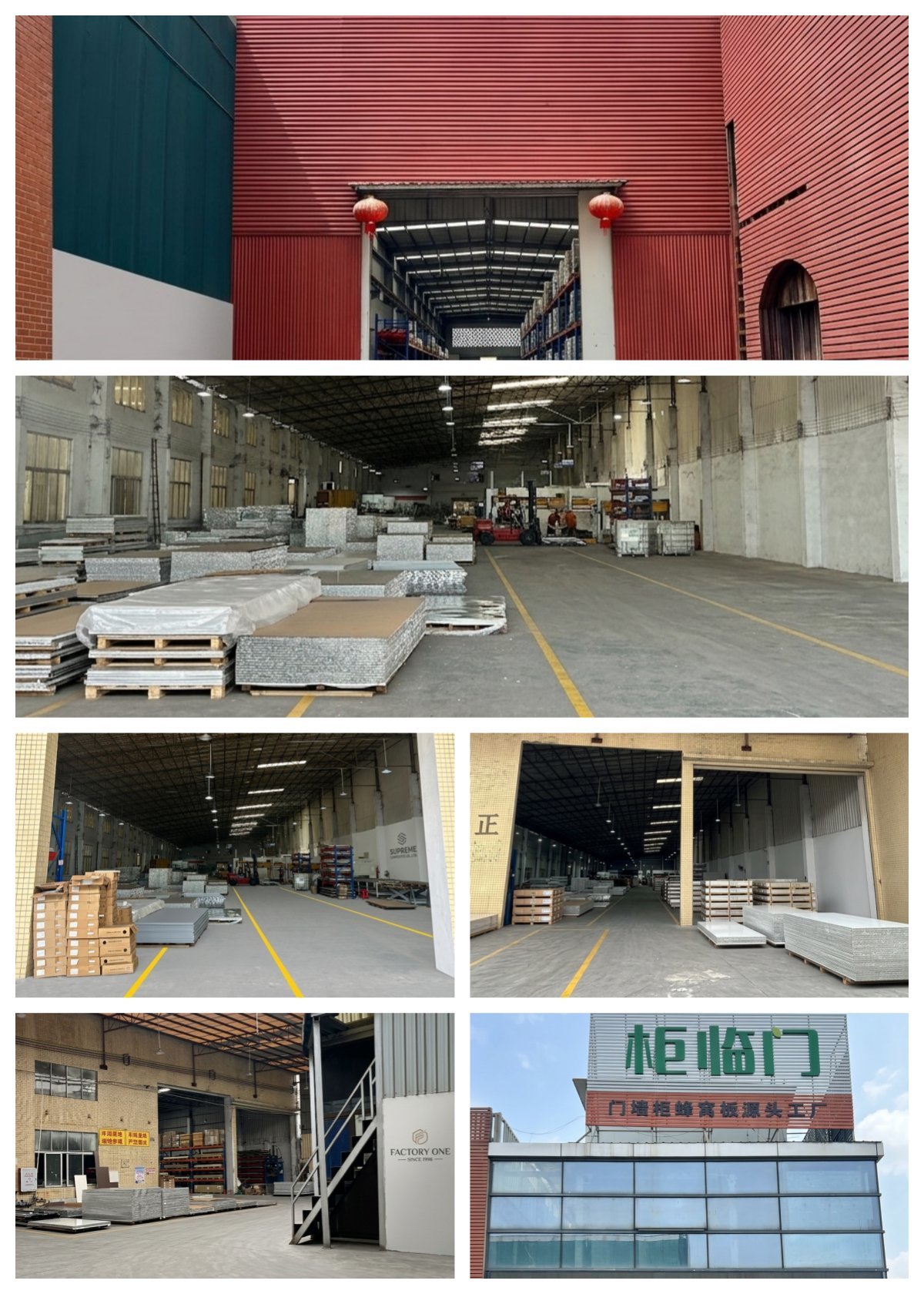

Overview of Our Factory

Glue Free Polymer Membrane Ceiling Honeycomb Panel Sound Insulation

FAQ

1. What are the main advantages of Aluminum Ceiling Panels?

Aluminum Ceiling Panels are lightweight, durable, moisture-resistant and corrosion-resistant, making them suitable for residential, commercial and public buildings. They also offer a wide range of surface finishes and designs, providing both functional and decorative value.

2. Are Aluminum Ceiling Panels suitable for humid and coastal environments?

Yes. With suitable aluminum materials and surface treatments, Aluminum Ceiling Panels are well suited for tropical, humid and coastal environments. They are resistant to moisture and corrosion and are easy to clean and maintain, making them particularly suitable for Southeast Asian and coastal projects.

3. Do you provide fire-rated and acoustic Aluminum Ceiling Panels?

Yes. We can provide different solutions according to project requirements, including fire-performance Aluminum Ceiling Panels and perforated acoustic ceiling panels with acoustic backing. Relevant test reports and technical documentation can be provided for applicable products.

4. Can you customize the size, color, design and perforation pattern?

Yes. We provide OEM & ODM services, including customized panel sizes, thicknesses, shapes, RAL colors, wood-grain finishes, metallic finishes, perforation patterns and perforation rates. We can also customize complete ceiling systems and accessories according to project requirements.

5. Do you provide a complete Aluminum Ceiling System and international shipping?

Yes. In addition to ceiling panels, we can provide compatible carriers, suspension systems, clips and accessories to create a complete ceiling solution. We also provide export-standard packaging and container-loading solutions to help protect panels during long-distance transportation and optimize shipping costs.
