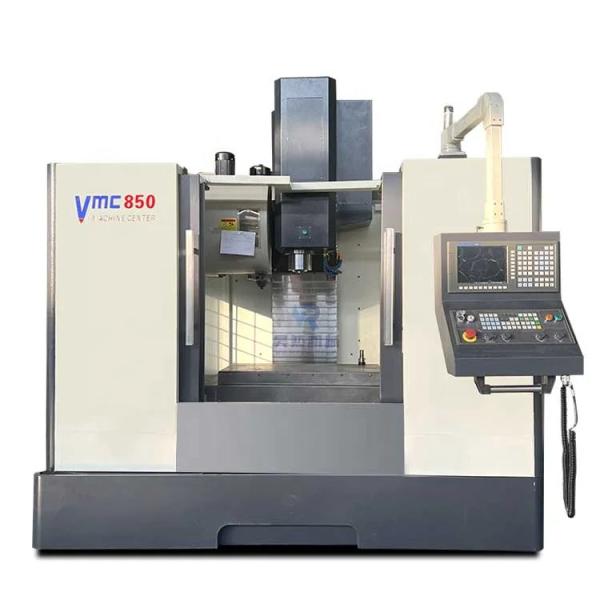

5 Axis Precise VMC850 Vertical CNC Machining Center 8000rpm Spindle 16/24 Tool Changer
5 Axis Precise VMC850 Vertical CNC Machining Center 8000rpm Spindle 16/24 Tool Changer
5 Axis Precise VMC850 Vertical CNC Machining Center 8000rpm Spindle 16/24 Tool Changer
5 Axis Precise VMC850 Vertical CNC Machining Center 8000rpm Spindle 16/24 Tool Changer
Specifications
Brand Name :
HR
Model Number :
VMC850
Place of Origin :
CHINA
Certification :
CE
MOQ :
1 SET
Price :
20800USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 SETS 1 month
Delivery Time :
30 work days
Packaging Details :
Standard materials
Z-Axis Travel :
500mm
Y-Axis Travel :
500mm
Machine Weight (Kg) :
5300kg
Model :
VMC850
Tool Changer Capacity :
16/24
Warranty :
1 Year
Dimension(l*w*h) :
2700*2150*2600
Condition :
New
Type :
Vertical
After-sales service provided :
Field maintenance and repair service
Voltage :
Customer's Requirement
Power(w) :
7.5/11 kW
Machine type :
China manufacturer machining center cnc vertical process center
Product name :
small metal mold processing CNC vertical machining center VMC640L
Inner structure :
Very steady
Worktable size :
900*500 mm
Tool magazine :
drum type or round disc type tool magazine
Description
Product Description

CNC mill high precision CNC vmc machines vmc machine VMC850 machining center

VMC850 is a high performance vertical machining center, it has the characteristics of high speed, high performance, high rigidity and high stability. All castings of this machine are secondary tempered to provide excellent rigidity and stability to the machine, which can make this machine maintain high speed and high stability in the process of processing.

5 Axis Precise VMC850 Vertical CNC Machining Center 8000rpm Spindle 16/24 Tool Changer
Item
VMC850
Size of worktable(length×width)mm
1000×500
T slot (mm)
5-18x100
Max loading weight on worktable
600kg
X-Axis travel(mm)
800
Y-Axis travel(mm)
500
Z-Axis travel(mm)
500
Distance between spindle nose and table
105-605mm
Distance between spindle
center and column(mm)
500
Spindle taper
BT40-150
Max. spindle speed( rpm)
8000/10000/12000
Spindle motor power(Kw)
7.5/11kw
Rapid feeding speed: X,Y,Z axis m/min
16/16/16 (24/24//24 liner guidway)
Fast cutting speed m /min
10m/min
Positional accuracy
±0.005 mm
Repeat positional accuracy
±0.003 mm
Auto Tool changer type
16 tools head type tool changer(optional 24 arm type auto tool changer)
Max. tool length
300mm
Max. Tool diameter
Φ80(adjacent tool)/φ150(not adjacent tool)
Max.tool weight
8kg
Tool changing time(tool-to-tool)
7sec
Air pressure
0.6 Mpa
Machine weight
5500KG
Overall sizse(mm)
2600*2300*2300

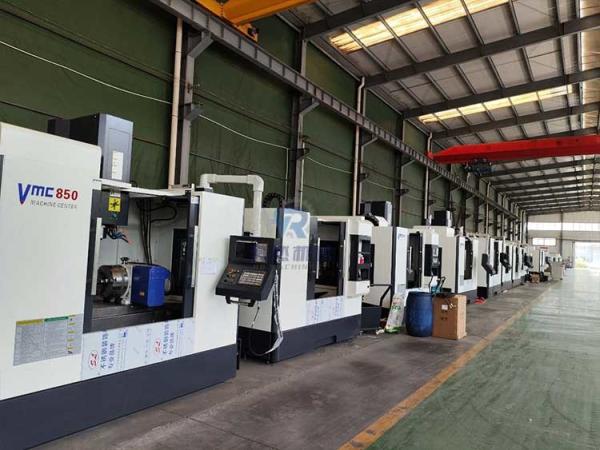

Detailed Images
5 Axis Precise VMC850 Vertical CNC Machining Center 8000rpm Spindle 16/24 Tool Changer
5 Axis Precise VMC850 Vertical CNC Machining Center 8000rpm Spindle 16/24 Tool Changer
