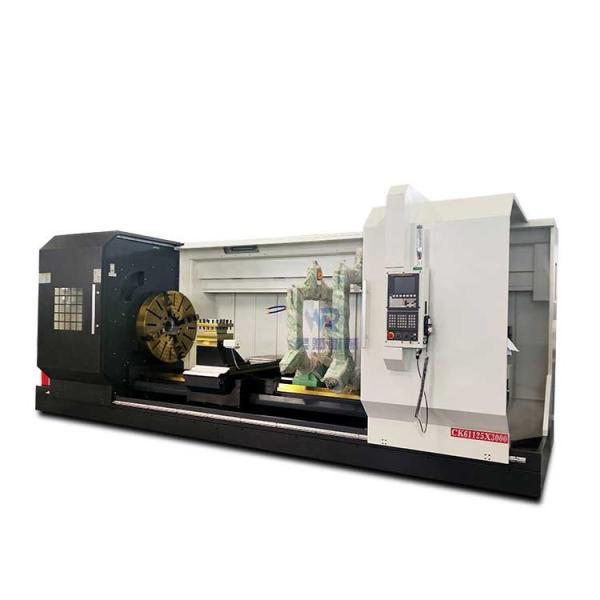

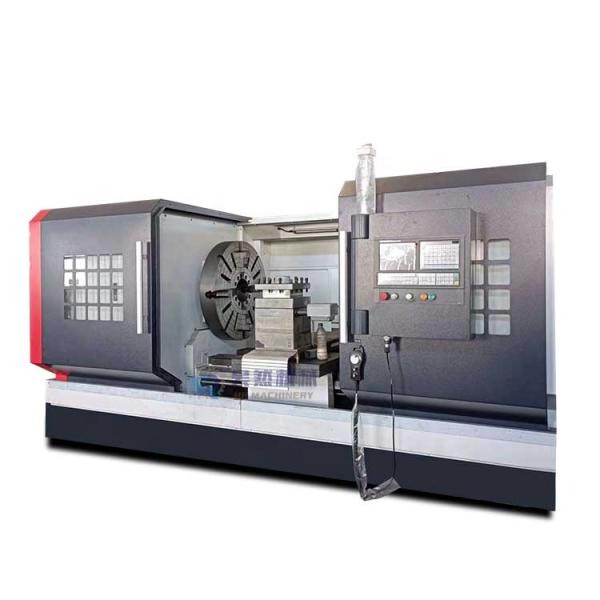

CK61125 CNC Lathe Machine High Precision High Strength
CK61125 CNC Lathe Machine High Precision High Strength
CK61125 CNC Lathe Machine High Precision High Strength
CK61125 CNC Lathe Machine High Precision High Strength
Specifications
Brand Name :
HR
Model Number :
CK61125
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
35400USD/1 Set
Payment Terms :
T/T, L/C
Supply Ability :
100 SETS/Month
Delivery Time :
30 work days
Packaging Details :
Standard material packaging
Voltage :
3 PHASE 380V 50HZ
Automatic grade :
Automatic
Power(w) :
4.0/5.5/7.5kw
Max. swing diameter :
1250mm
Weight :
6500KG
Cnc or not :
CNC
Type :
Horizontal,TURNING CENTER
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support
Warranty :
1 Year,12 Months
Spindle bore :
105mm
Spindle speed :
100-2000r/min
Color :
optional
Machine type :
Flat Bed Lathe
Product name :
CNC lathe machine CK6150 horizontal metal cutting machine
Year :
new
Control system :
SIEMENS GSK FANUC (optional)
Description

CNC Lathe use
The machine tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages.
CK61125 CNC Lathe Machine High Precision High Strength
CK61125 CNC Lathe Machine High Precision High Strength
CK61125 CNC Lathe Machine High Precision High Strength
Left Elevation

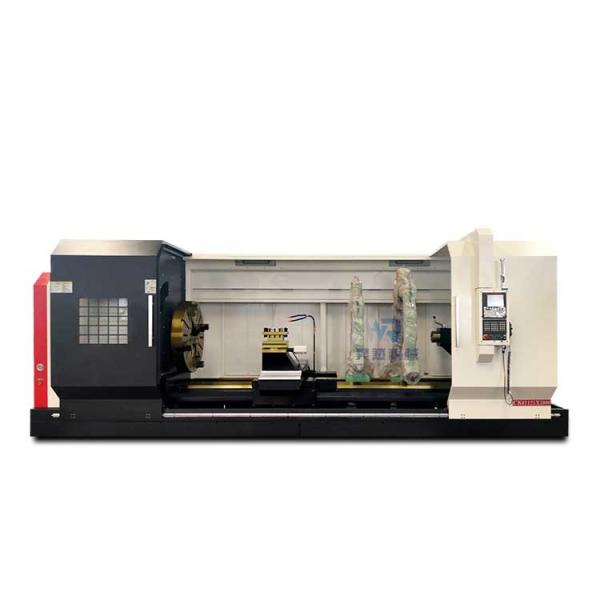

Front Elevation
Right Elevation
CNC Lathe Features
1. A high strength, widening the crriage, suitablefor heavy cutting
2. Four position electricturret
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration:hydraulic chuck
CK61125 CNC Lathe Machine High Precision High Strength
type
Parameter
Max. swing over bed
Φ1250mm
Max. swing dia. over cross slide
Ф900mm
Max turning diameter
Φ1250mm
Processing length
1000-5000mm
Effective processing length
850/1350/2850/3800/4800
X/Z axis max. stroke
530/1000-5000
X/Z axis min.displacement unit
0.001
Diameter of spindle bore
Ф105mm
Form
Four gears No gearshift
Spindle speed
30-84/53-150/125-350/300-835
Main motor power(frequency conversion)
11KW
Frequency converter
15KW
X/Z axis torque
10/15 N.m
X/Z axis Cutting feed rate
4/6 m/min
type
4 station electric tool post
Section of tool shank
40*40
Repetitive position precision
≤0.004
Dia.of tailstock sleeve
Φ75mm
Travel of tailstock sleeve
200mm
Sleeve taper
MT 6#
Net weight
4500/5000/5500/6000/6500/7000kg
Dimension size(L×W×H)
2800/3700/4200/5200/6200/7200*1820*1780
Power demand (power/current)
20kW/30A
Detailed Images
CK61125 CNC Lathe Machine High Precision High Strength

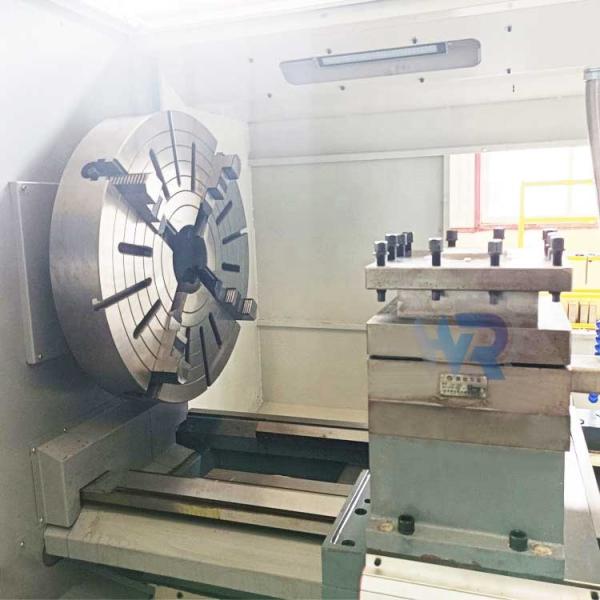

Precision chuck
* Fast clamping product rotation at the same time for processing
* Optional hydraulic chuck

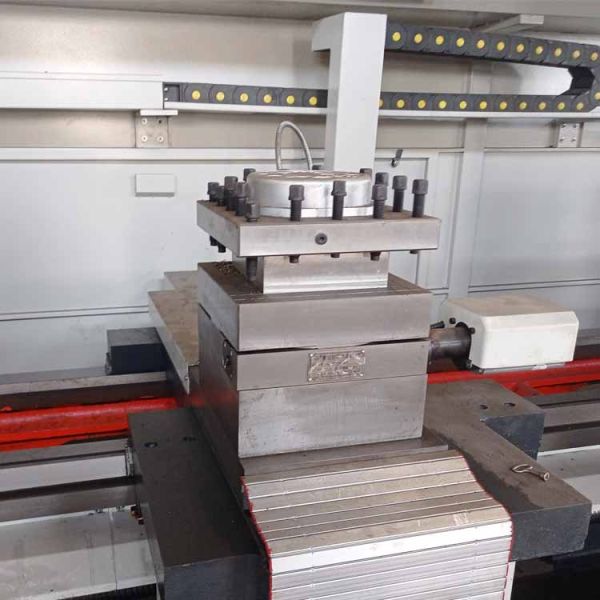

Tool rest tower
* Standard configuration 4 knife position
* Can be selected according to the requirements of 6 knife position, 8 knife position
CK61125 CNC Lathe Machine High Precision High Strength
CK61125 CNC Lathe Machine High Precision High Strength
Numerical Control System
* Assembly of wide numerical control system, but also optional other numerical control system
