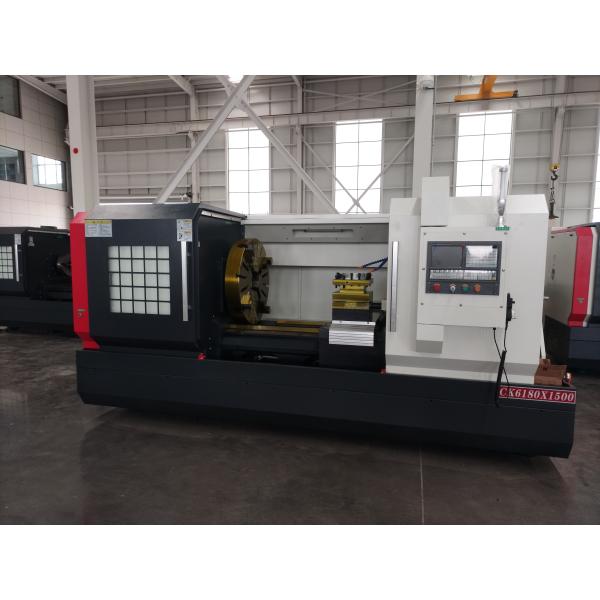

Ck6180 Cnc Lathe Machine 4 Station Turret Optional Chip Conveyor
Ck6180 Cnc Lathe Machine 4 Station Turret Optional Chip Conveyor
Ck6180 Cnc Lathe Machine 4 Station Turret Optional Chip Conveyor
Ck6180 Cnc Lathe Machine 4 Station Turret Optional Chip Conveyor
Specifications
Brand Name :
HR
Model Number :
CK6180
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
16000USD
Payment Terms :
T/T, L/C
Supply Ability :
100 sets/month
Delivery Time :
30 working days
Packaging Details :
Plywood Box
Voltage :
3 PHASE 380V 50HZ,110V/220V
Automatic grade :
Automatic
Power(w) :
7.5kw
Condition :
New
Max. swing diameter :
800mm
Cnc or not :
CNC
Type :
Horizontal,TURNING CENTER
After-sales service provided :
Online support,Video technical support
Warranty :
1 Year
Spindle bore :
105/130
Spindle speed :
0-835rpm
Color :
can be free to choose
Machine type :
Flat Bed Lathe,Horizontal CNC Lathe Mchine
Description

CNC Lathe use
The machine tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages.

Parameter List

Specification:
cnc lathe machine ck6180
Max. swing dia. over bed 800mm
Max. swing dia. over cross slide 450mm
Max. processing length 1000mm
Dia. of spindle 130mm
Spindle taper MT6
Spindle number Manual four-speed
Spindle speed 30-84/53-150/125-350/300-835
Tool holder 4-station Electric tool turret
Tool size 32/32
Main motor power 11kw
Spindle head type A2-11
X/Z axis travel 420/(1000/1500/2000/3000)
X/Z axis lead screw diameter × pitch φ3208/φ5010
X/Z fast moving speed 4/6
Sleeve diameter/stroke Φ100/250
Sleeve inner hole taper MT6
Sleeve drive mode manual
Tailstock body movement mode manual
Dimension 3400mm×1940 mm×1800mm
weight 4300kg
