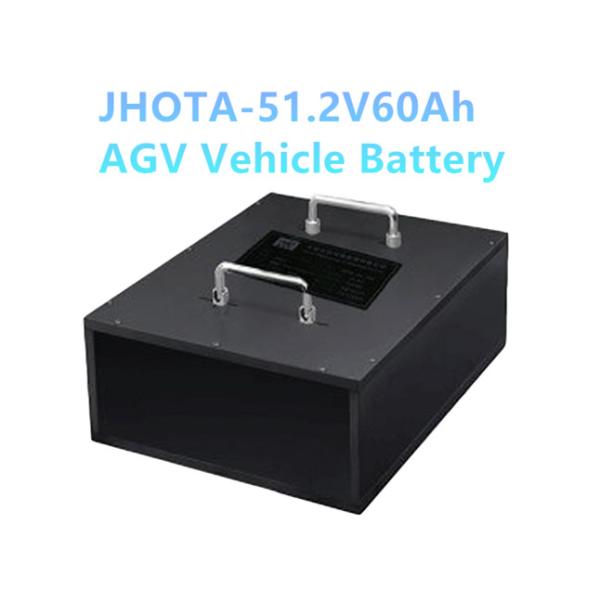

51.2v 60ah High-Energy Density LiFePo4 Battery Pack for AGV AMR Robots
51.2v 60ah High-Energy Density LiFePo4 Battery Pack for AGV AMR Robots
Specifications
Brand Name :
JHOTA
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
20-30 days
Packaging Details :
Carton
Product name :
Communication Base Station Battery
Nominal Voltage :
51.2V
Nominal Capacity :
60Ah
Cycle Life :
2000 times
Warranty :
5 Years
Description
51.2v 60ah LiFePo4 AGV Batteries for Long-Haul and Heavy-Cargo Applications
Specification
Item Parameter
Nominal Voltage 51.2V
Rated Capacity Nominal Capacity: 60Ah,Minimum Capacity: 59Ah
Charging Voltage 58.4V
Charging Method Constant Current / Constant Voltage
Discharge Cut-off Voltage 36.8V
Rated Charging Current ≤30A
Maximum Continuous Charging Current ≤50A
Internal Resistance <100mΩ
Rated Discharge Current ≤60A
Maximum Continuous Discharge Current ≤120A (not exceeding 1 hour)
Overcharge Protection Voltage 3.65±0.05V (adjustable)
Over-discharge Protection Voltage 2.3±0.01V (adjustable)
Overcurrent Protection Discharge overcurrent value: ≥240A
Short Circuit Protection

Condition: External circuit short, Recovery:

Disconnect short circuit
Operating Temperature Range Charge: 0~55°C, Discharge: -20~55°C
Storage Temperature Range Less than 7 days: 20~65°C
Weight Approx. 23kg
Dimensions Customizable
Product Description:
51.2v 60ah High-Energy Density LiFePo4 Battery Pack for AGV AMR Robots
Advantages:
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
51.2v 60ah High-Energy Density LiFePo4 Battery Pack for AGV AMR Robots
Application:

1.Goods-to-Person Systems: Powers AGVs that transport entire shelves of inventory to picking stations, requiring sustained high energy

for continuous movement and lifting.

2.Pallet Transport: Provides the necessary current surge for heavy-duty forklift AGVs to lift and move palletized goods (500kg - 1000kg+).

3. Sortation and Distribution: Fuels AGVs in parcel sorting hubs, enabling rapid acceleration, constant travel, and high throughput with

minimal charging downtime.

51.2v 60ah High-Energy Density LiFePo4 Battery Pack for AGV AMR Robots
