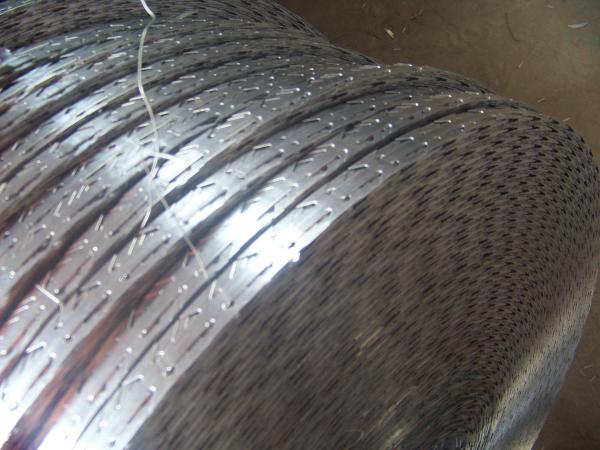

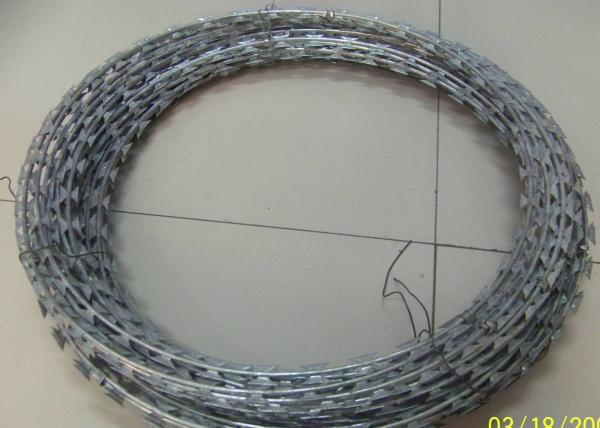

Concertina Bto-22 Type 2.5mm Razor Barbed Wire
Concertina Bto-22 Type 2.5mm Razor Barbed Wire
Concertina Bto-22 Type 2.5mm Razor Barbed Wire
Concertina Bto-22 Type 2.5mm Razor Barbed Wire
Specifications
Brand Name :
HGMT
Model Number :
GF114
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
50 rolls
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000meter per week
Delivery Time :
20-25days
Packaging Details :
1.packing with wooden pallet 2.bulk on the container
Name :
Concertina Barbed Wire
Material :
steel
Wire diameter :
2.5mm
Surface :
hot dip galvanized
Description

Hot Selling Low Price Concertina BTO-22 Type Razor Barbed Wire

Product Description

It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel
sheets or stainless steel sheets.

Specifications

Razor Wire Size Specifications
Peference Model
Thickness (mm)
Wire Diameter (mm)
Barb Length
(mm)
Bard Width
(mm)
Bard Spacing
(mm)
BTO-12
0.5±0.05
2.5±0.1
12±1
15±1
26±1
BTO-15
0.5±0.05
2.5±0.1
18±1
15±1
33±1
BTO-22
0.5±0.05
2.5±0.1
02±1
15±1
34±1
BTO-28
0.5±0.05
2.5±0.1
28
15
45±1
CBT-30
0.5±0.05
2.5±0.1
30
18
45±1
CBT-60
0.6±0.05
2.5±0.1
60±2
32±1
100±1
CBT-65
0.6±0.05
2.5±0.1
65±2
21±1
100±1
Outside Diameter
No. of Loops
Standard Length per Coil
Razor Type
Notes
450mm
33
7M-8M
CBT-60, 65
Single Coil
500mm
56
12M-13M
CBT-60, 65
Single Coil
700mm
56
13M-14M
CBT-60, 65
Single Coil
960mm
56
14M-15M
CBT-60, 65
Single Coil
450mm
56
8M-9M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
500mm
56
9M-10M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
600mm
56
10M-11M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
600mm
56
8M-10M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
700mm
56
10M-12M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
800mm
56
11M-13M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
900mm
56
12M-14M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
960mm
56
13M-15M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
980mm
56
14M-16M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type

Feature

Anticorrosion, prevent aging, sun resistance, weather resistance, etc. Corrosion forms of electroplating, hot dip.

Packing terms

Panel all packing with the pallet (steel pallet or wooden pallet)

in bulk

Concertina Bto-22 Type 2.5mm Razor Barbed Wire
