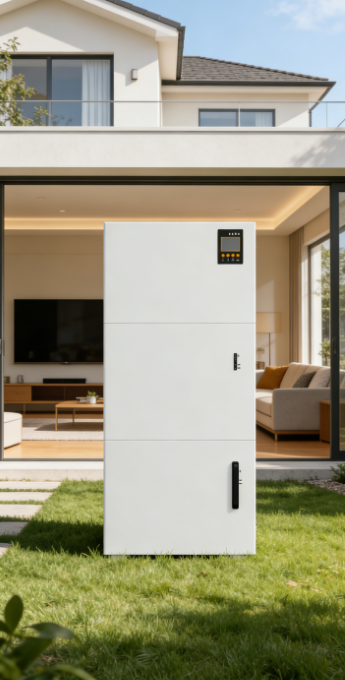

Emergency Home Solar Power Storage 5kW Inverter 5.22kWh UN38.3 Approval
Emergency Home Solar Power Storage 5kW Inverter 5.22kWh UN38.3 Approval
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$1200-1400
Weight (kg) :
60.8
Safety Protection :
High/Under Voltage Protection, Short Circuit Protection, Overload Protection.
Description
Emergency Home Power Supply 5kW Inverter 5.22kWh
This wall-mounted home energy hub serves as an all-in-one unit that scales from 5.22kWh and integrates both inverter and PV input functionality. It optimizes solar self-consumption for residential applications, provides secure power for villas and home offices, and switches to backup power within 20ms during grid failures.
Key Features
  • Cost-Effective & Durable: Utilizes Lithium Iron Phosphate (LiFePO4) technology with cycle life up to 6000 cycles, supporting daily use for over 15 years while reducing long-term operational costs.
  • Single MPPT PV Input: Supports up to 5kW PV input with MPPT range of 150-500V, compatible with most photovoltaic modules.
  • Adjustable Power Factor: Power factor adjustable from 0.8 leading to 0.8 lagging, ensuring compatibility with various grid requirements.
  • High Efficiency & Low THDi: Output THDi less than 3% delivers high power quality, safe for sensitive electronic equipment.
  • Fast Grid Transfer: Grid transfer time of 20ms ensures uninterrupted operation of critical appliances.
  • Smart Communication: Supports CAN/RS485 communication for integration with energy management systems, enabling remote monitoring and O&M to improve management efficiency.
  • Modern Design: Wall-mounted design saves floor space and simplifies cleaning.
Emergency Home Solar Power Storage 5kW Inverter 5.22kWh UN38.3 Approval
Specification of WSL48100
Battery Data
Model W5-5K
Cell Chemistry LFP/102Ah
Rated Energy (kWh) 5.22kWh
Pack Configuration 1P16S
Rated Voltage (V) 51.2V
Operating Voltage Range (VDC) 44.8-57.6VDC
PV Input
Max. PV Input Power (W) 5,000W
Max. PV Input Voltage (V) 500V
MPPT Voltage Range (V) 150-500V
Start-up Voltage (V) 370V
Number of MPPTs (Pcs) 1
Max. PV Input Current per MPPT (A) 60A
AC Input & Output
Rated Input/Output Power (W) 5,000W
Rated Input/Output Voltage (V) 220V/230V/240V (Adjustable)
Rated AC Frequency (Hz) 50/60Hz
Max. Output Current (A) 22A
Total Harmonic Distortion (THDi) <3%
Power Factor 0.8 Leading to 0.8 Lagging
Grid Transfer Time (ms) 20ms
Grid Connection Single Phase
General Data
Dimensions (W×D×H) (mm) 600×163×655
Weight (kg) 60.8
Altitude (m) 4,000m (Derating above 1,000m)
Display LCD Display
Safety Protection High/Under Voltage Protection, Short Circuit Protection, Overload Protection
BMS Communication CAN/RS485
IP Rating IP21
Operating Temperature (℃) -15~60℃ (Battery: 0~40℃)
Relative Humidity 20%~95% (No Condensing)
Cycle Life 6,000 Cycles
Installation Method Wall-Mounted
Certifications CE, RoHS, UN38.3
