Residential Balcony Photovoltaic Plug And Play PV System High Efficiency
Residential Balcony Photovoltaic Plug And Play PV System High Efficiency
Specifications
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$500—1000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Maximum Static Load on Front :
5400Pa
Maximum Static Load on Rear :
2400Pa
Protection Level :
IP68
Maximum Input Voltage :
420V
Start-up Voltage :
50V
Communication Method :
WIFI/PLC
Description

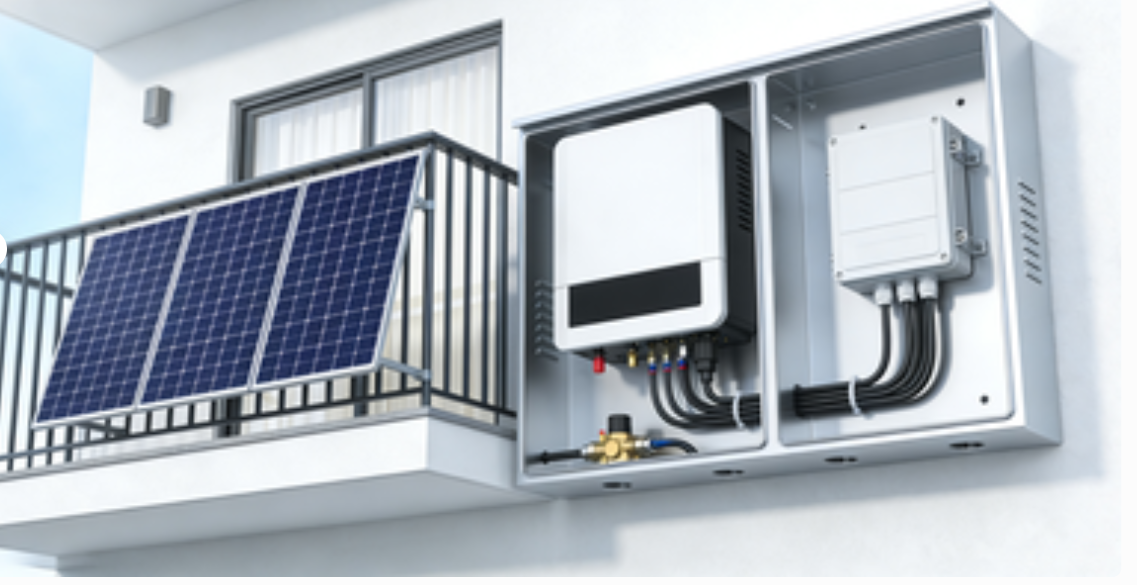

Residential Balcony Solar Power System
Plug-and-Play High Efficiency PV System with Anti-backflow Protection
Integrated panel and inverter system featuring plug-and-play design with 30-minute quick installation, 97.6% peak efficiency, anti-backflow protection, and remote monitoring capabilities. Available in 1kW and 2kW configurations suitable for balcony, roof, and various installation scenarios.
Product Highlights
  • Plug-and-Play Installation: Pre-assembled and factory-debugged system with 3-step installation process and 3-minute network configuration. Can be installed by non-professionals after simple training in just 30 minutes.
  • High-Efficiency Power Generation: Features 4th generation semiconductor GaN technology with 97.6% peak efficiency. Modular independent power generation delivers excellent performance even in low-light conditions.
  • Comprehensive Safety Protection: Integrated AFCI arc fault detection, anti-backflow protection, over-voltage/over-current/short-circuit protection. Fewer cable interfaces reduce failure probability with automatic island protection during grid failures.
  • Flexible Installation Options: Requires no building structure modifications and only 3-5㎡ of sunny area. Suitable for 8 different scenarios including balcony, roof, wall, and fence installations with flexible 1-for-2 and 1-for-4 combinations.
  • Intelligent Monitoring System: Real-time power generation monitoring and fault early warning via mobile app. Supports remote one-click shutdown and system-level intelligent optimization. No grid connection application required for self-use mode.
  • Eco-Friendly Operation: Zero noise and zero pollution operation. A 1kW system reduces carbon emissions by approximately 1 ton annually while significantly cutting electricity costs for households and businesses.
System Performance Details
1kW Balcony PV System
  • Daily Power Generation: Approximately 3kWh with 3 hours of sunlight; 4kWh with 4 hours of sunlight
  • Compatible Equipment: Basic LED lighting, 500W rice cooker, 300W washing machine, 200W refrigerator, routers and other small home appliances
  • Power Coverage: Meets approximately 30% of household basic electricity demand, covering daily use of core small devices
2kW Balcony PV System
  • Daily Power Generation: Approximately 6kWh with 3 hours of sunlight; 8kWh with 4 hours of sunlight
  • Compatible Equipment: All 1kW system equipment plus 1.5 HP air conditioner, 800W microwave oven, 1000W electric kettle and other medium to large home appliances
  • Power Coverage: Meets approximately 80% of household daily electricity demand, providing full coverage of main equipment for a family of three
Residential Balcony Photovoltaic Plug And Play PV System High Efficiency
Technical Specifications
System Model 1to2 1to2 1to4
Component Parameters
Component Model DHT-M56X10 FS(BB) DHN-I48Z16/DG(BW) DHN-I48Z16/DG(BW)
Standard Dimensions 1766x1132x32mm 1762x1134x35mm 1762x1134x35mm
Weight 22.5kg 24.3kg 24.3kg
Electrical Performance Parameters (STC)
Maximum Power (Pmax) 420W 450W 450W
Maximum Power Point Voltage (Vmpp) 97.3V 61.2V 61.2V
Maximum Power Point Current (Impp) 4.32A 7.35A 7.35A
Open Circuit Voltage (Voc) 115.4V 72.0V 72.0V
Short Circuit Current (Isc) 4.56A 7.82A 7.82A
Power per Square Meter (W/m²) 210W 225W 225W
Safety Parameters
Maximum Static Load on Front 5400Pa 5400Pa 5400Pa
Maximum Static Load on Rear 2400Pa 2400Pa 2400Pa
Protection Level IP68 IP68 IP68
Temperature Coefficient
Temperature Coefficient (Isc) 0.05%/℃ 0.046%/℃ 0.046%/℃
Temperature Coefficient (Voc) -0.31%/℃ -0.25%/℃ -0.25%/℃
Temperature Coefficient (Pmpp) -0.35%/℃ -0.29%/℃ -0.29%/℃
Micro-Inverter Parameters
Micro-Inverter Model DHN-SU920D-G0 DHN-SU1KCD-G1 DHN-SU2KCD-G1
Maximum Input Voltage 420V 420V 470V
MPPT Voltage Range 120~360V 70~340V 70-400V
Start-up Voltage 50V 50V 50V
Maximum Input Current 4.2A 7.5A 7.5A
Maximum Output Active Power 920W 1000W 2000W
Maximum Efficiency 0.972 0.9719 0.976
Operating Temperature Range -40℃~+65℃ -40℃~+70℃ -40℃~+70℃
Communication Method WIFI/PLC WIFI/PLC WIFI/PLC
Weight 2.0kg 3.5kg 3.7kg
Dimensions 412*99*43mm 420*112*44mm 420*112*44mm
Protection Level IP65 IP67 IP67
