Energy Storage Residential 48V 280Ah 13.44kWh Battery Storage System For Home
Energy Storage Residential 48V 280Ah 13.44kWh Battery Storage System For Home
Specifications
Certification :
CE
Place of Origin :
China
Price :
$1400-1600
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
MOQ :
1
Weight(kg) :
139
Maximum Dimension(D*W*H)mm :
480*246*990
Cycle Life :
5000+ Times at 80% DOD
Cooling Method :
Natural Air Cooling
Protection Level :
IP20
Discharging Temperature(℃) :
-10~55
Description

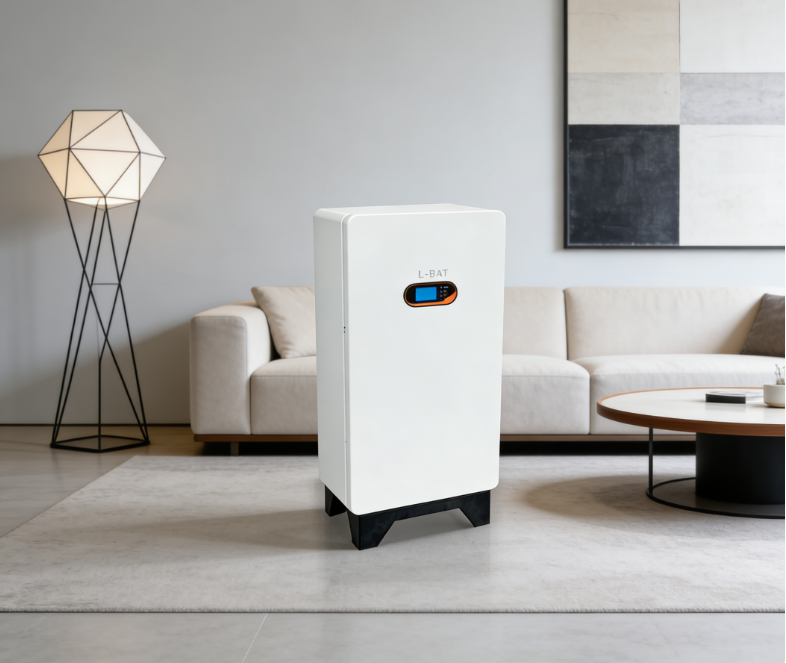

Residential Storage Vertical LiFePO4 Battery 13 kWh 48V 5000+ Cycle Life
This 13kWh vertical-type LiFePO4 battery combines elegant design with convenient mobility. Engineered for residential and small commercial energy storage applications, it features mainstream inverter protocols for direct communication and comprehensive multi-level protection systems with fault isolation to ensure safe operation.
Product Highlights
  • Vertical design for safe and stable operation
  • Hidden wiring with aesthetically pleasing appearance
  • Standard LCD display for real-time battery status monitoring
  • Direct inverter protocol selection capability
  • Environmentally friendly materials free from heavy metals and pollutants
  • Standard cycle life exceeding 5,000 cycles
Energy Storage Residential 48V 280Ah 13.44kWh Battery Storage System For HomeEnergy Storage Residential 48V 280Ah 13.44kWh Battery Storage System For Home Energy Storage Residential 48V 280Ah 13.44kWh Battery Storage System For Home
Technical Specifications
Model CH --GBP48-280HL
Nominal Voltage (V) 48
Cell Specification 280
Nominal Capacity (Ah) 280
Operating Voltage Range (V) 42~54.75
Recommended Charging Voltage (V) 51.75
Recommended Discharge Cut-off Voltage (V) 45
Standard Charge/Discharge Current (A) 100
Maximum Continuous Charge/Discharge Current (A) 150
Operating Temperature (°C) -30~60 (Recommended 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommended 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 480*246*990
Weight (kg) 139
Manufacturing & Customization
Factory direct supply from our own production base ensures maximum efficiency and quality control. We support flexible production capacity with minimum order quantity of just 1 unit for trial orders. Customization services available for product parameters including voltage and interface configurations to meet specific customer requirements.
