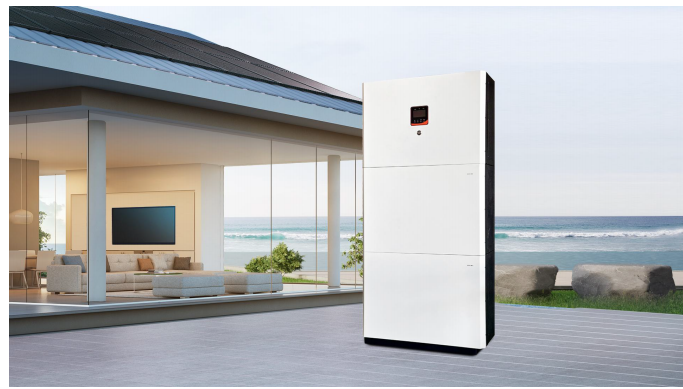

5.5kW 10kWh 48V Residential Power Storage Systems 240VAC Household Solar Batteries
5.5kW 10kWh 48V Residential Power Storage Systems 240VAC Household Solar Batteries
Specifications
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Price :
＄1900-2100
Output Voltage Waveform :
Pure Sine Wave
Inverter to Bypass Transfer Time (ms) :
10(Typical)
Energy (kWh) :
10
Number of Battery Modules :
1
Rated Charge/Discharge Rate :
0.5C
Max AC Charging Current (A) :
60
Description
5.5kW 10kWh Stackable All-in-One Solar Storage System
The GSL Series Stackable All-in-One Solar Storage System integrates a hybrid inverter with modular LiFePO₄ batteries in a scalable stackable design, allowing flexible capacity expansion as needed. Featuring high power density, plug-and-play installation, and concealed wiring, it is ideal for residential and small commercial energy storage applications.
Powered by advanced DSP control technology, the system supports three output modes and four charging modes, enabling intelligent switching between solar priority, grid priority, and hybrid operation. With a maximum inverter efficiency of 93% and MPPT tracking efficiency of up to 99.9%, it maximizes solar energy utilization. The built-in smart battery management system, combined with cloud-based APP monitoring, enables real-time status tracking and remote management.
Key Features
  • Stackable Modular Design: Battery modules can be expanded on demand, supporting flexible configuration from 10kWh to 50kWh
  • High Power Density: Compact structural design delivers high energy storage efficiency per unit volume
  • Plug-and-Play Installation: Concealed wiring design enables easy installation and simple maintenance
  • Multiple Application Modes: Supports three output modes and four charging modes for solar priority, grid priority, and hybrid strategies
  • High Energy Efficiency: Maximum inverter efficiency of 93% and MPPT tracking efficiency of 99.9%
  • Smart Cloud Management: Built-in intelligent battery management system with APP for real-time monitoring and remote management
  • Comprehensive Safety Protection: Includes overload protection, wide voltage range control, and multi-level safety alerts
  • Wide Voltage Compatibility: Supports multiple output voltage settings (200/208/220/230/240VAC) for global standards
  • Quiet & Stable Operation: Noise level below 60dB with adjustable fan speed cooling
5.5kW 10kWh 48V Residential Power Storage Systems 240VAC Household Solar Batteries
Technical Specifications
Model: CH-GSL48-5.5K-10kWh
Inverter Output
Rated Output Power (W) 5500
Rated Output Power (VA) 5500
Max Peak Power (W) 10000
Rated AC Output 230VAC (200/208/220/240VAC can be set) 50/60Hz
Output Voltage Waveform Pure Sine Wave
Inverter to Bypass Transfer Time (ms) 10 (Typical)
Max Battery Mode Efficiency 93%
Overload Protection 102%~110%, 5min; 110%~125%, 10s; >125%, 5s
Battery
Energy (kWh) 10
Number of Battery Modules 1
Rated Battery Voltage (VDC) 48
Battery Voltage Range (V) 42~54.75/44.8~58.4
Rated Charge/Discharge Rate 0.5C
Max MPPT Charging Current (A) 100
Max AC Charging Current (A) 60
Max Hybrid Charging Current (A) 100
PV Charging
Number of MPPT Trackers 1
Max PV Array Power (W) 5500
Max PV Input Current (A) 22
Max Open Circuit Voltage (VDC) 500
MPPT Operating Range (V) 120~450
MPPT Tracking Efficiency 99.9%
AC Input
Input Voltage Range (VAC) 90~280/170~280
Frequency Range (Hz) 50/60±0.3
Physical Specifications
Dimensions (D*W*H) mm 250*690*850
Weight (kg) 125
IP Rating IP20
Operating Temperature Range (°C) -10~55
Storage Temperature Range (°C) -25~60
Noise (dB) <60
Cooling Method Forced Air Cooling (Adjustable Fan Speed) for Inverter / Natural Cooling for Battery
Note: The above data is for reference only and is subject to change without prior notice. Special voltages can be customized.
