16.07kWh 51.2V 314Ah Home LiFePO4 Battery 5000 Cycles Home Battery Storage
16.07kWh 51.2V 314Ah Home LiFePO4 Battery 5000 Cycles Home Battery Storage
Specifications
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$1800-2000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Weight :
145 kg
Recommended Charging Voltage(V) :
55.2V
Dimensions :
480*246*990
Cycle Life :
5000+ Times at 80% DOD
Storage Temperature(℃) :
-20~65(Recommended 10~35)
Operating Voltage Range(V) :
44.8~58.4
Description

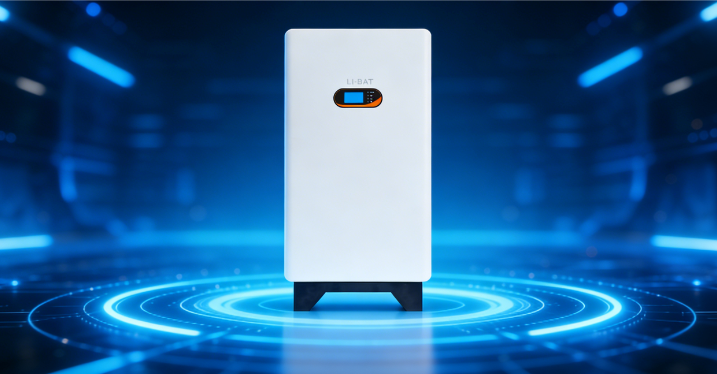

Home Storage Upright LiFePO4 Battery 16.07 kWh 51.2V 5000+ Cycle Life
Product Overview
This vertical LiFePO4 battery features an elegant design with convenient mobility. Equipped with mainstream inverter communication protocols for direct connectivity, it incorporates comprehensive multi-level protection strategies and fault isolation measures to ensure safe system operation. Ideal for small commercial and residential energy storage applications.
Key Features
  • Vertical design for safe and stable operation
  • Hidden wiring with aesthetically pleasing appearance
  • Standard LCD display for real-time battery status monitoring
  • Direct inverter communication protocol selection via display
  • Environmentally friendly materials without heavy metals
  • Standard cycle life exceeding 5,000 cycles
Manufacturing Advantages
Factory Direct Supply: Own production base ensures efficient order processing and reliable supply chain
Flexible Production: Supports small batch trial orders with minimum order quantity of 1 unit
Customization Service: Product parameters including voltage and interface can be customized to meet specific requirements
16.07kWh 51.2V 314Ah Home LiFePO4 Battery 5000 Cycles Home Battery Storage
Technical Specifications
Model CH--GBP51.2-314HL
Nominal Voltage (V) 51.2
Cell Specification 314
Nominal Capacity (Ah) 314
Operating Voltage Range (V) 44.8~58.4
Recommended Charging Voltage (V) 55.2
Recommended Discharge Cut-off Voltage (V) 48
Standard Charge/Discharge Current (A) 100
Maximum Continuous Charge/Discharge Current (A) 150
Operating Temperature (°C) -30~60 (Recommended 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommended 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 480*246*990
Weight (kg) 145
