Vertical Type Home LiFePO4 Battery 48V 314Ah 15.07kWh Solar Panel Battery For Home
Vertical Type Home LiFePO4 Battery 48V 314Ah 15.07kWh Solar Panel Battery For Home
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$1500-1700
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Cell Specification :
314
Operating Voltage Range(V) :
42~54.75
Recommended Charging Voltage(V) :
51.75
Recommended Discharge Cut-off Voltage(V) :
45
Maximun Continuous Charge/Discharge Current(A) :
150
Operating Temperature(℃) :
"-30~60(Recommended 10~35 ) "
Description

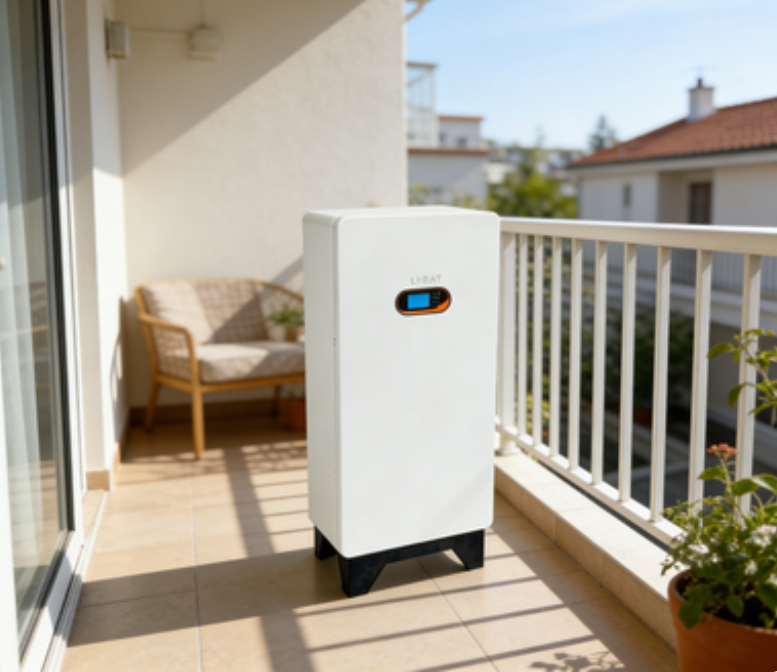

Vertical Type Home LiFePO4 Battery 15.07kWh Solar Panel Battery For Home

Product introduction

The product adopts vertical type design, beautiful shape, and convenient movement; including the mainstream market inverter protocol, directly communicates; adopts a comprehensive and multi -level battery protection strategy and fault isolation measures to ensure the safe operation of the system.Widely used in small commercial and family energy storage.

Product Highlights

1.Vertical Type design, safe and stable.
2.Hidden wiring, beautiful design.
3.Standard LCD display screen, to understand battery status in real time, and directly select the inverter communication protocol on the screen.
4.Environmentally friendly and pollution-free materials, no heavy metals, green and environmentally friendly.
5.Standard cycle life over 5,000 times.

other
Factory Direct Supply: Own production base with direct order processing to ensure supply efficiency
Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
Customization Service: Product parameters (such as voltage, interface) can be customized according to customer requirements
Vertical Type Home LiFePO4 Battery 48V 314Ah 15.07kWh Solar Panel Battery For Home
Model CH—GBP48-314HL
Nominal Voltage (V) 48
Cell Specification 314
Nominal Capacity(Ah) 314
Operating Voltage Range(V) 42~54.75
Recommended Charging Voltage(V) 51.75
Recommended Discharge Cut-off Voltage(V) 45
Standard Charge/Discharge Current (A) 100
Maximun Continuous Charge/Discharge Current(A) 150
Operating Temperature(℃) -30~60(Recommended 10~35 )
Allowable Humidity Range(%RH) <85
Storage Temperature(℃) -20~65(Recommended 10~35)
Charging Temperature(℃) 0~55
Discharging Temperature(℃) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension(D*W*H)mm 480*246*990
Weight(kg) 143
