Stackable Home Solar Storage 48V 10KW 10kWh Solar Batteries For Home Use
Stackable Home Solar Storage 48V 10KW 10kWh Solar Batteries For Home Use
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$2400-2600
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Overload Protection :
102%~110%, 5min; 110%~125%, 10s; >125%, 5s
Energy (kWh) :
10
Output Voltage Waveform :
Pure Sine Wave
Model :
10K-10kWh
Description

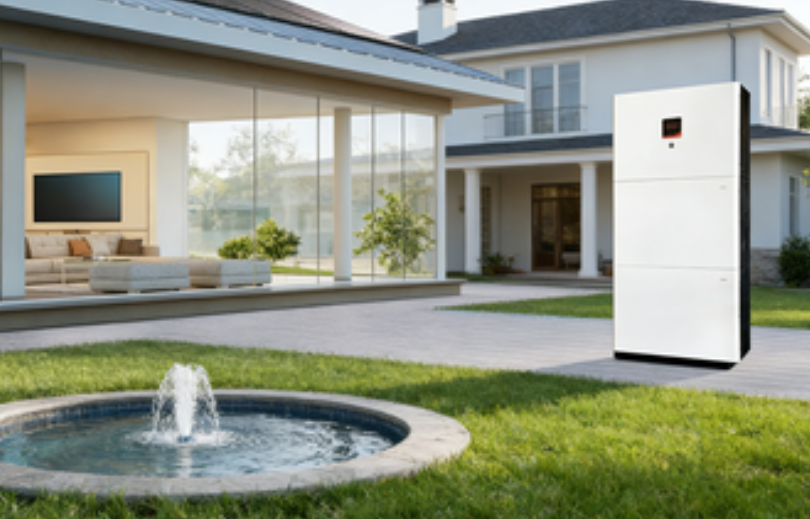

10kW 10kWh Stackable Home Energy Storage System
This all-in-one energy storage system integrates hybrid inverters and LiFePO4 batteries in a stackable design. Featuring multiple application modes, high power density, plug-and-play functionality, and concealed wiring, it's ideal for residential and small commercial energy storage applications.
Key Features
  • Multiple Application Modes: 3 output modes and 4 charging modes for diverse scenarios
  • Flexible Combination: Stackable design allows scalable battery capacity expansion
  • High Safety Standards: DSP control with advanced algorithms and multiple safety protections
  • Smart Monitoring: Intelligent BMS with real-time cloud monitoring via mobile app
Manufacturing & Customization
  • Factory Direct Supply: Direct order processing from our production base
  • Flexible Production: Support for small batch trial orders (MOQ 1 unit)
  • Customization Service: Product parameters including voltage and interface can be tailored
Stackable Home Solar Storage 48V 10KW 10kWh Solar Batteries For Home Use
Technical Specifications
Model: CH-GSL48-10K-10kWh
Inverter Output
Rated Output Power (W) 10000
Rated Output Power (VA) 10000
Max Peak Power (W) 15000
Rated AC Output 230VAC (200/208/220/240VAC can be set) 50/60Hz
Output Voltage Waveform Pure Sine Wave
Inverter to Bypass Transfer Time (ms) 10 (Typical)
Max Battery Mode Efficiency 93%
Overload Protection 102%~110%, 5min; 110%~125%, 10s; >125%, 5s
Battery Specifications
Energy (kWh) 10
Number of Battery Modules 1
Rated Battery Voltage (VDC) 48
Battery Voltage Range (V) 42~54.75/44.8~58.4
Rated Charge/Discharge Rate 1C
Max MPPT Charging Current (A) 200
Max AC Charging Current (A) 120
Max Hybrid Charging Current (A) 200
PV Charging
Number of MPPT Trackers 2
Max PV Array Power (W) 5500+5500
Max PV Input Current (A) 22+22
Max Open Circuit Voltage (VDC) 500+500
MPPT Operating Range (V) 120~450
MPPT Tracking Efficiency 99.9%
AC Input
Input Voltage Range (VAC) 90~280/170~280
Frequency Range (Hz) 50/60±0.3
Physical Specifications
Dimensions (D*W*H) mm 250*690*960
Weight (kg) 128
IP Rating IP20
Operating Temperature Range (°C) -10~55
Storage Temperature Range (°C) -25~60
Noise (dB) <60
Cooling Method Forced Air Cooling (Adjustable Fan Speed) for Inverter / Natural Cooling for Battery
Note: The above data is for reference only and is subject to change without prior notice. Special voltages can be customized.
