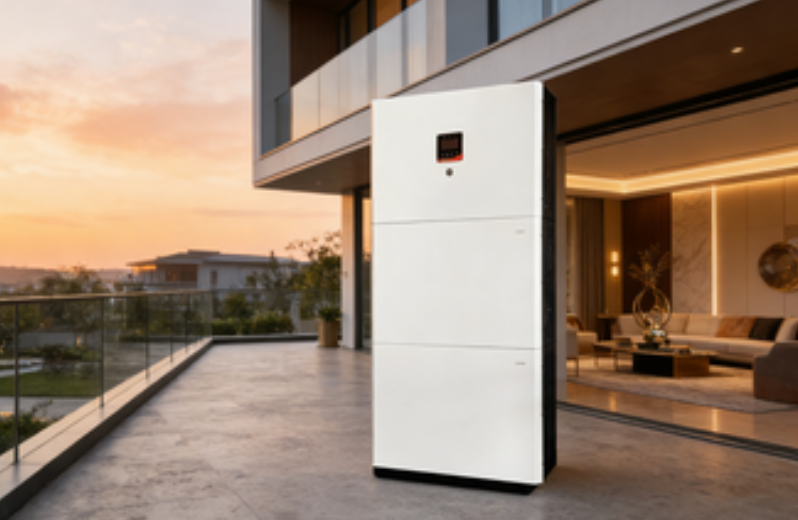

230VAC Home LiFePO4 Battery 5.5kW 48V 30kWh Home ESS With Hybrid Inverter
230VAC Home LiFePO4 Battery 5.5kW 48V 30kWh Home ESS With Hybrid Inverter
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$4500-4700
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Noise (dB) :
<60
Rated Battery Voltage (VDC) :
48
Overload Protection :
102%~110%, 5min; 110%~125%, 10s; >125%, 5s
Rated AC Outpu :
230VAC(200/208/220/240VAC can be set)50/60Hz
Description
5kW 30kWh 48V All-in-One Home ESS with Hybrid Inverter
This stackable all-in-one unit integrates hybrid inverters and energy storage batteries into a single, compact solution. Featuring multiple application modes, high power density, plug-and-play functionality, and concealed wiring design, it is ideal for small commercial and residential energy storage applications.
Key Features
  • Multiple Application Modes: 3 output modes and 4 charging modes to accommodate diverse energy scenarios
  • Flexible Combination: Stackable design enables scalable battery capacity expansion as needed
  • High Safety Standards: DSP control with advanced algorithms, multiple safety alarms, and comprehensive protection systems
  • Smart & User-Friendly: Intelligent BMS with real-time cloud monitoring via mobile app
230VAC Home LiFePO4 Battery 5.5kW 48V 30kWh Home ESS With Hybrid Inverter
Technical Specifications
Inverter Output
Rated Output Power (W) 5500
Rated Output Power (VA) 5500
Max Peak Power (W) 10000
Rated AC Output 230VAC (200/208/220/240VAC can be set) 50/60Hz
Output Voltage Waveform Pure Sine Wave
Inverter to Bypass Transfer Time (ms) 10 (Typical)
Max Battery Mode Efficiency 93%
Overload Protection 102%~110%, 5min; 110%~125%, 10s; >125%, 5s
Battery
Energy (kWh) 30
Number of Battery Modules 3
Rated Battery Voltage (VDC) 48
Battery Voltage Range (V) 42~54.75/44.8~58.4
Rated Charge/Discharge Rate 0.5C
Max MPPT Charging Current (A) 100
Max AC Charging Current (A) 60
Max Hybrid Charging Current (A) 100
PV Charging
Number of MPPT Trackers 1
Max PV Array Power (W) 5500
Max PV Input Current (A) 22
Max Open Circuit Voltage (VDC) 500
MPPT Operating Range (V) 120~450
MPPT Tracking Efficiency 99.9%
AC Input
Input Voltage Range (VAC) 90~280/170~280
Frequency Range (Hz) 50/60±0.3
Physical Specifications
Dimensions (D*W*H) mm 250*690*1170
Weight (kg) 325
IP Rating IP20
Operating Temperature Range (°C) -10~55
Storage Temperature Range (°C) -25~60
Noise (dB) <60
Cooling Method Forced Air Cooling (Adjustable Fan Speed) for Inverter / Natural Cooling for Battery
Manufacturing & Customization
  • Factory Direct Supply: Own production base with direct order processing for maximum efficiency
  • Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
  • Customization Service: Product parameters including voltage and interface can be tailored to customer requirements
Note: The above data is for reference only and is subject to change without prior notice. Special voltages can be customized.
