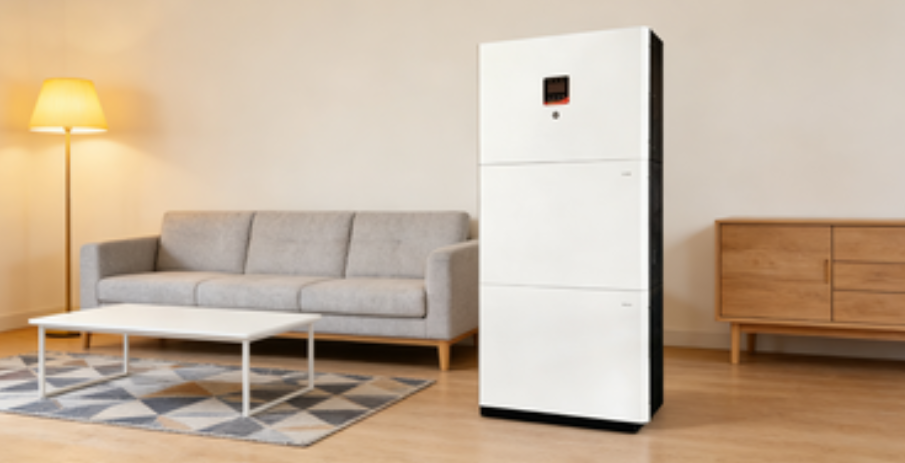

48V 10kW 10kWh Home Solar Energy Storage Home Solar Power Storage
48V 10kW 10kWh Home Solar Energy Storage Home Solar Power Storage
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$2400-2600
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Charge/Discharge Rate :
1C
Rated AC Outpu :
230VAC(200/208/220/240VAC can be set)50/60Hz
Inverter to Bypass Transfer Time (ms)  :
10(Typical)
Max Peak Power (W) :
15000
Description
10kW 48V 10kWh Home Solar Energy Storage System
Stackable all-in-one unit integrating hybrid inverters and energy storage batteries with plug-and-play functionality and concealed wiring design. Ideal for small commercial and residential energy storage applications.
Key Features
  • Multiple Application Modes: 3 output modes and 4 charging modes for diverse scenarios
  • Flexible Combination: Stackable design allows for scalable battery capacity
  • High Safety: DSP control with advanced algorithms and multiple safety protections
  • Smart & User-Friendly: Intelligent BMS with real-time cloud monitoring via mobile APP
Manufacturing & Customization
Factory direct supply with flexible production capacity. Support for small batch trial orders (MOQ 1 unit) and customization of product parameters including voltage and interface specifications.
48V 10kW 10kWh Home Solar Energy Storage Home Solar Power Storage
Technical Specifications
Model: CH--GSL48-10K-10kWh
Inverter Output
Rated Output Power (W) 10000
Rated Output Power (VA) 10000
Max Peak Power (W) 15000
Rated AC Output 230VAC (200/208/220/240VAC can be set) 50/60Hz
Output Voltage Waveform Pure Sine Wave
Inverter to Bypass Transfer Time (ms) 10 (Typical)
Max Battery Mode Efficiency 93%
Overload Protection 102%~110%, 5min; 110%~125%, 10s; >125%, 5s
Battery
Energy (kWh) 10
Number of Battery Modules 1
Rated Battery Voltage (VDC) 48
Battery Voltage Range (V) 42~54.75/44.8~58.4
Rated Charge/Discharge Rate 1C
Max MPPT Charging Current (A) 200
Max AC Charging Current (A) 120
Max Hybrid Charging Current (A) 200
PV Charging
Number of MPPT Trackers 2
Max PV Array Power (W) 5500+5500
Max PV Input Current (A) 22+22
Max Open Circuit Voltage (VDC) 500+500
MPPT Operating Range (V) 120~450
MPPT Tracking Efficiency 99.9%
AC Input
Input Voltage Range (VAC) 90~280/170~280
Frequency Range (Hz) 50/60±0.3
Physical Specifications
Dimensions (D*W*H) mm 250*690*960
Weight (kg) 128
IP Rating IP20
Operating Temperature Range (°C) -10~55
Storage Temperature Range (°C) -25~60
Noise (dB) <60
Cooling Method Forced Air Cooling (Adjustable Fan Speed) for Inverter / Natural Cooling for Battery
Note: The above data is for reference only and is subject to change without prior notice. Special voltages can be customized.
