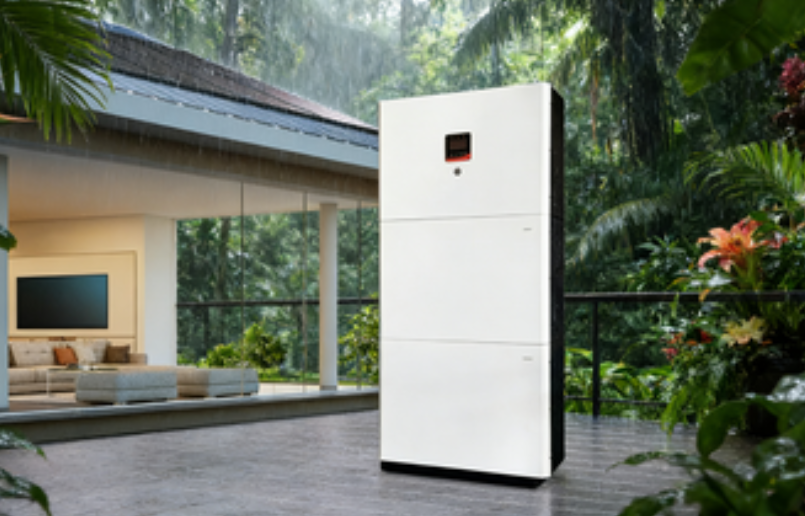

5.5kW Hybrid Inverter48V 30kWh Stackable Lithium Battery Home Storage
5.5kW Hybrid Inverter48V 30kWh Stackable Lithium Battery Home Storage
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$4500-4700
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Max Peak Power (W) :
10000
Input Voltage Range (VAC) :
90~280/170~280
MPPT Tracking Efficiency  :
99.9%
Inverter to Bypass Transfer Time (ms)  :
10(Typical)
Description
5kW 48V 30kWh Home Solar Energy Storage System
Plug & Play Stackable Design with Hybrid Inverter and Battery
This all-in-one energy storage system integrates hybrid inverters and batteries in a stackable unit. Featuring multiple application modes, high power density, plug-and-play functionality, and concealed wiring design, it's ideal for residential and small commercial energy storage applications.
Key Features
  • Multiple Application Modes: 3 output modes and 4 charging modes for diverse scenarios
  • Flexible Combination: Stackable design allows scalable battery capacity expansion
  • High Safety: DSP control with advanced algorithms and multiple safety protections
  • Smart & User-Friendly: Intelligent BMS with real-time cloud monitoring via mobile app
5.5kW Hybrid Inverter48V 30kWh Stackable Lithium Battery Home Storage
Technical Specifications
Model: CH--GSL48-5.5K-30kWh
Inverter Output
Rated Output Power (W) 5500
Rated Output Power (VA) 5500
Max Peak Power (W) 10000
Rated AC Output 230VAC (200/208/220/240VAC can be set) 50/60Hz
Output Voltage Waveform Pure Sine Wave
Inverter to Bypass Transfer Time (ms) 10 (Typical)
Max Battery Mode Efficiency 93%
Overload Protection 102%~110%, 5min; 110%~125%, 10s; >125%, 5s
Battery
Energy (kWh) 30
Number of Battery Modules 3
Rated Battery Voltage (VDC) 48
Battery Voltage Range (V) 42~54.75/44.8~58.4
Rated Charge/Discharge Rate 0.5C
Max MPPT Charging Current (A) 100
Max AC Charging Current (A) 60
Max Hybrid Charging Current (A) 100
PV Charging
Number of MPPT Trackers 1
Max PV Array Power (W) 5500
Max PV Input Current (A) 22
Max Open Circuit Voltage (VDC) 500
MPPT Operating Range (V) 120~450
MPPT Tracking Efficiency 99.9%
AC Input
Input Voltage Range (VAC) 90~280/170~280
Frequency Range (Hz) 50/60±0.3
Physical Specifications
Dimensions (D*W*H) mm 250*690*1170
Weight (kg) 325
IP Rating IP20
Operating Temperature Range (°C) -10~55
Storage Temperature Range (°C) -25~60
Noise (dB) <60
Cooling Method Forced Air Cooling (Adjustable Fan Speed) for Inverter / Natural Cooling for Battery
Manufacturing & Customization
  • Factory Direct Supply: Own production base with direct order processing
  • Flexible Production: Support for small batch trial orders (MOQ 1 unit)
  • Customization Service: Product parameters including voltage and interface can be tailored to requirements
Note: The above data is for reference only and is subject to change without prior notice. Special voltages can be customized.
