20kWh 48V Home LiFePO4 Battery 10kW Hybrid Inverter Energy Storage Residential
20kWh 48V Home LiFePO4 Battery 10kW Hybrid Inverter Energy Storage Residential
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$3850-4050
Payment Terms :
D/A,L/C,D/P,T/T,Western Union
Battery Voltage Range (V) :
42~54.75/44.8~58.4
Max PV Input Current (A) :
22+22
Input Voltage Range (VAC) :
90~280/170~280
Rated Charge/Discharge Rate :
1C
Description

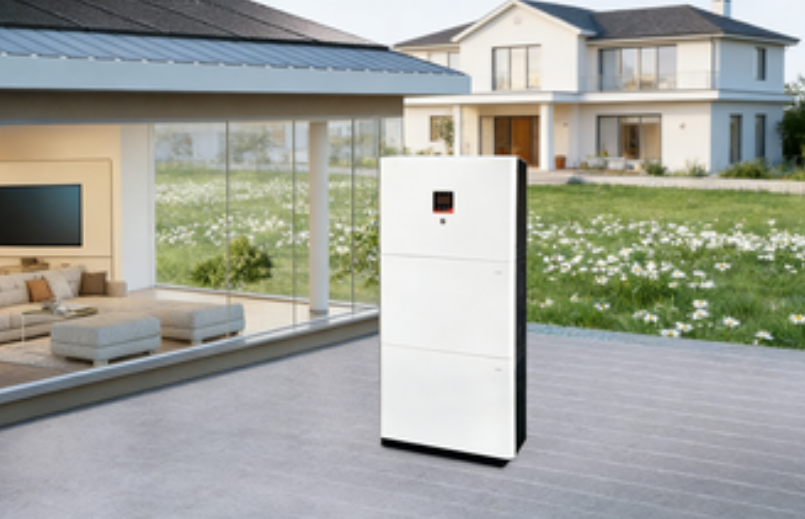

10kW 20kWh 48V Stackable All-in-One Solar Storage System
Complete 10kW hybrid inverter with 20kWh modular LiFePO4 battery - an expandable energy solution for home and small business applications.
System Overview
This stackable all-in-one unit integrates hybrid inverters and energy storage batteries into a single, compact solution. Featuring multiple application modes, high power density, plug-and-play functionality, and concealed wiring design, it's ideal for small commercial and residential energy storage scenarios.
Key Features
  • Multiple Application Modes: 3 output modes and 4 charging modes to meet diverse operational scenarios
  • Flexible Combination: Stackable design allows for scalable battery capacity expansion as needed
  • High Safety Standards: DSP control with advanced algorithms, multiple safety alarms and comprehensive protection systems
  • Smart & User-Friendly: Intelligent BMS with real-time cloud monitoring via mobile APP
20kWh 48V Home LiFePO4 Battery 10kW Hybrid Inverter Energy Storage Residential
Technical Specifications
Model: CH-GSL48-10K-20kWh
Inverter Output
Rated Output Power (W) 10000
Rated Output Power (VA) 10000
Max Peak Power (W) 15000
Rated AC Output 230VAC (200/208/220/240VAC can be set) 50/60Hz
Output Voltage Waveform Pure Sine Wave
Inverter to Bypass Transfer Time (ms) 10 (Typical)
Max Battery Mode Efficiency 93%
Overload Protection 102%~110%, 5min; 110%~125%, 10s; >125%, 5s
Battery
Energy (kWh) 20
Number of Battery Modules 2
Rated Battery Voltage (VDC) 48
Battery Voltage Range (V) 42~54.75/44.8~58.4
Rated Charge/Discharge Rate 1C
Max MPPT Charging Current (A) 200
Max AC Charging Current (A) 120
Max Hybrid Charging Current (A) 200
PV Charging
Number of MPPT Trackers 2
Max PV Array Power (W) 5500+5500
Max PV Input Current (A) 22+22
Max Open Circuit Voltage (VDC) 500+500
MPPT Operating Range (V) 120~450
MPPT Tracking Efficiency 99.9%
AC Input
Input Voltage Range (VAC) 90~280/170~280
Frequency Range (Hz) 50/60±0.3
Physical Specifications
Dimensions (D*W*H) mm 250*690*1420
Weight (kg) 228
IP Rating IP20
Operating Temperature Range (°C) -10~55
Storage Temperature Range (°C) -25~60
Noise (dB) <60
Cooling Method Forced Air Cooling (Adjustable Fan Speed) for Inverter / Natural Cooling for Battery
Manufacturing & Customization
  • Factory Direct Supply: Own production base with direct order processing for maximum efficiency
  • Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
  • Customization Service: Product parameters including voltage and interface specifications can be tailored to customer requirements
Note: The above data is for reference only and is subject to change without prior notice. Special voltages can be customized.
