Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Specifications
Brand Name :
Holtop
Model Number :
CFA 300T
Certification :
CE
Place of Origin :
Beijing,China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
200000 units per year
Delivery Time :
Two weeks
Packaging Details :
box
Rated Voltage 、Rated Frequency :
Single Phase 230V~50Hz
Power Supply Voltage :
Rated Voltage ±10%
Operating Conditions :
Temperature: -10～40℃ Relative Humidity: ≤85% RH
Storage Conditions :
Temperature: -10～55℃ Relative Humidity: ≤85% RH
Control Method :
Dual Screen Control, Buttons + Indicator Lights / Digital Tubes
Fan Type :
EC Fan
Heat Exchanger :
Specially Engineered Resin
Filter :
Aluminum Alloy Frame + PU Foam / G4
Description
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Product Overview

The CFA Series Fresh Air Ventilator is a ventilation device that integrates air purification with energy recovery. Comprising components such as a heat exchanger, filters, and EC fans, it provides comprehensive indoor air quality management.

Key Functions
  • Fresh Air Ventilation: Continuously supplies treated fresh air indoors while exhausting stale indoor air to improve indoor air quality
  • Air Purification: Outdoor air is purified through filters before being supplied indoors
  • Energy Recovery: Equipped with a sensible heat exchanger that extracts energy from exhaust air to heat (in winter) or cool (in summer) incoming fresh air, reducing energy consumption
Product Features
Intelligent Control
  • Dual display control with multiple control interfaces combining buttons with indicator lights/buttons with digital tubes
  • Built-in temperature and temperature/humidity sensors for real-time monitoring
  • Equipped with intelligent controls including automatic bypass, automatic humidity adjustment, and frost protection
  • Features constant air volume characteristics, maintaining stable supply and exhaust air volumes consistently
High Operability
  • Four fan speed settings with user-adjustable air volume for each level
  • "One-Touch High Speed" function for instant rapid air exchange
  • Adjustable supply/exhaust air balance ratio for simple adjustment of indoor positive or negative pressure
High Efficiency & Energy Saving
  • Utilizes EC fans for low energy consumption and low noise operation
  • Incorporates proprietary core technology: highly efficient 3D counterflow heat exchanger with heat exchange efficiency exceeding 95%
Product Benefits
Enjoy the refreshing effect of opening a window or door while preserving indoor comfort and system efficiency. This HRV offers the ability to remove moisture from incoming air during hot, steamy months and can supply a refreshing infusion of outdoor air all year long. It's the perfect addition to your modestly-sized home.

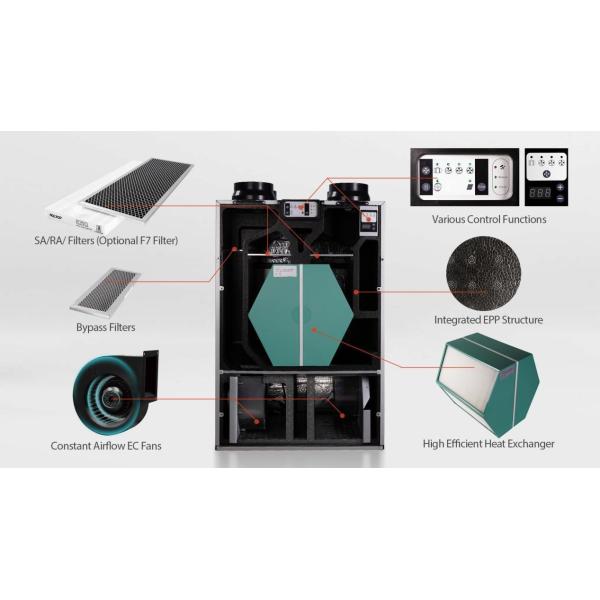

Product Design & Components
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Top port, compact unit. Ideally suited for tight installations.
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Structure of Top Ports Vertical Compact Heat Recovery Ventilator
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Heat exchanger for Top Port Vertical Heat Recovery Ventilator
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Motor for Top Port Vertical Heat Recovery Ventilator
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Controllers for Top Port Vertical Heat Recovery Ventilator
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Installation for Top Port Vertical Heat Recovery Ventilator
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Certificates for Top Port Vertical Heat Recovery Ventilator
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Maintenance Tips for Top Port Vertical Heat Recovery Ventilator
Product Specifications
Residential ERV HRV System Featuring EC Fans and Heat Exchanger for Continuous Fresh Air Ventilation and Energy Saving
Product Specifications for Top Port Vertical Heat Recovery Ventilator
MODEL No. CFA 250T CFA 350T CFA 500T
Voltage [ V ] / Frequency [ Hz ] 230V/50Hz
Airflow [ m³/h ] 250 350 500
External Static Pressure [ Pa ] 130 150 160
Temperature Efficiency at Rated Airflow [ % ] 85 85 85
Max Temperature Efficiency [ % ] 95 95 95
Rated Power [ W ] 170 320 480
Noise [ dB(A) ] 35 37 39
Energy Efficiency Class A A A
Weight [ kg ] 40 40 50
