Specifications
Delivery Time :
Negotiate
Power supply :
380V/3N~/50Hz
Nominal Heating capacity(kw) :
1210.0
Brand Name :
Holtop
Model Number :
HFW-1120HA1
Net Weight(kg) :
10700
Place of Origin :
China,Beijing
Refrigerant type :
R410A
Packaging Details :
Carton
Payment Terms :
T/T
Nominal cooling capacity(kw) :
1120.0
Certification :
CE
Model :
HFW-1120HA1
Gross Weight (kg) :
11080
MOQ :
1pc
Supply Ability :
20000PCS/years
Nominal refrigeration input total power(kw) :
344.6
Price :
Negotiate
Fan type :
Axial-flow low-noise fan
Nominal heating input total power(kw) :
352.8
Dimension(mm) :
8240*2280*2540
Description

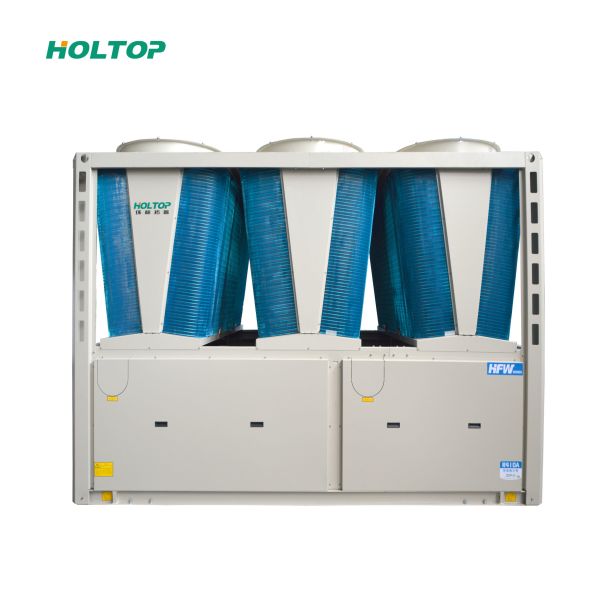

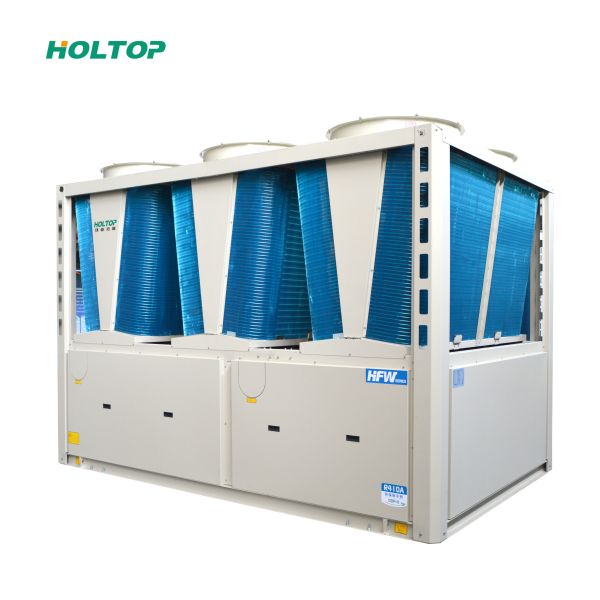

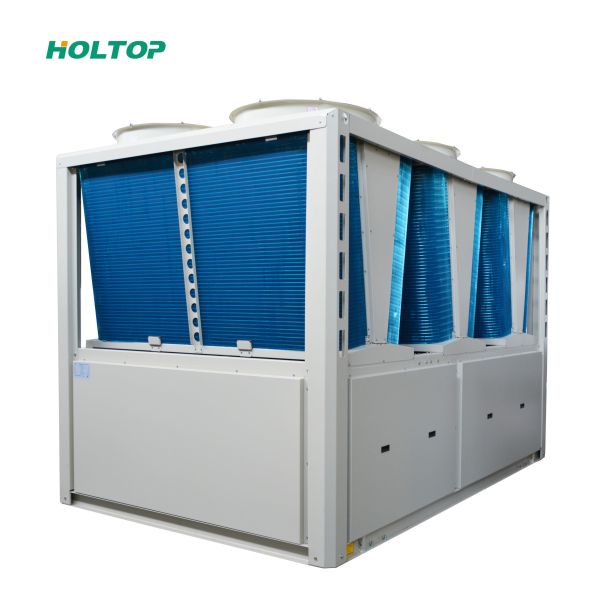

Holtop Vortex Module-Type Air-Cooled Chilled Water (Heat Pump) Unit HFW-1120HA1
The vortex module-type air-cooled chilled water (heat pump) unit utilizes advanced modular technology with air as the cooling and heating medium. This integrated central air conditioning equipment serves as both a cooling/heating source and combined unit, designed to work with fan coil units, cabinet-type, ceiling-mounted air handling units, and fresh air units to form semi-centralized air conditioning systems.
Key Features
  • Modular Combination & Hierarchical Startup: Modular design allows flexible combination without distinguishing between main and secondary machines. Supports up to 16 units per group with hierarchical startup to reduce current impact on power grid.
  • Intelligent Defrosting: Multi-variable detection for precise frost determination and optimal defrost timing. Dual-system design enables interval defrosting with manual override capability in harsh conditions.
  • Flexible Application: Easy unit expansion suitable for phased investment. Compact size allows independent transportation and installation without special equipment. Compatible with both fixed water flow and variable water flow systems.
  • Safe Operation Control: Multiple safety protection functions with intelligent multi-variable monitoring for efficient and stable operation.
  • Fault Backup Operation: Dual-compressor design ensures continued operation if one compressor fails, maintaining system functionality.
Technical Specifications
ParameterSpecification
Rated VoltageThree-phase 380V/3N~
Rated Frequency50Hz
Power Supply Voltage±10% of rated voltage
Storage ConditionsEnvironmental temperature: -28 to 85℃
Control MethodRemote controller
Fan TypeAxial flow low-noise fan
Operating Range
Operating ConditionOutdoor Ambient TemperatureOutlet Water Temperature
Cooling15℃ ≤ Temperature ≤ 48℃5℃ ≤ Temperature ≤ 15℃
Heating-15℃ ≤ Temperature ≤ 21℃40℃ ≤ Temperature ≤ 50℃
Model Specifications
Model HFW-420HA1 HFW-560HA1 HFW-840HA1 HFW-980HA1 HFW-1120HA1
Nominal Cooling Capacity (kW)420.0560.0840.0980.01120.0
Nominal Heating Capacity (kW)454.0605.0908.01059.01210.0
Refrigeration Input Power (kW)129.2172.3258.4301.5344.6
Heating Input Power (kW)132.4176.4264.8308.8352.8
Compressor Quantity34678
Fan Power (kW)1.8×61.8×81.8×121.8×141.8×16
Nominal Water Flow Rate (m³/h)72.296.3144.4168.5192.6
Dimensions L×W×H (mm)3540×2280×25404700×2280×25407080×2280×25408240×2280×25409400×2280×2540
Weight (kg)4020/41605350/55408040/83209370/970010700/11080
Notes:
1. Nominal cooling capacity test conditions: water flow rate 0.172 m³/(h*kW), outlet water temperature 7°C, outdoor ambient temperature 35°C.
2. Nominal heating capacity test conditions: water flow rate 0.172 m³/(h*kW), outlet water temperature 45°C, outdoor dry/wet bulb temperature 7/6°C.
3. Total water pipe for modular unit combination requires on-site fabrication and installation.
4. Modular units can be combined from 1 to 16 units as needed. Above table shows single unit parameters.
5. Control accessories (remote controller, user manual, connection cables) must be ordered separately.
