Specifications
Nominal refrigeration input total power(kw) :
301.5
Certification :
CE
Brand Name :
Holtop
MOQ :
1pc
Nominal cooling capacity(kw) :
980
Delivery Time :
Negotiate
Model :
HFW-980HA1
Packaging Details :
Carton
Place of Origin :
China,Beijing
Supply Ability :
20000PCS/years
Net Weight(kg) :
9370
Price :
Negotiate
Nominal heating input total power(kw) :
308.8
Power supply :
380V/3N~/50Hz
Gross Weight (kg) :
9700
Refrigerant type :
R410A
Fan type :
Axial-flow low-noise fan
Model Number :
HFW-980HA1
Payment Terms :
T/T
Nominal Heating capacity(kw) :
1059.0
Dimension(mm) :
8240*2280*2540
Description

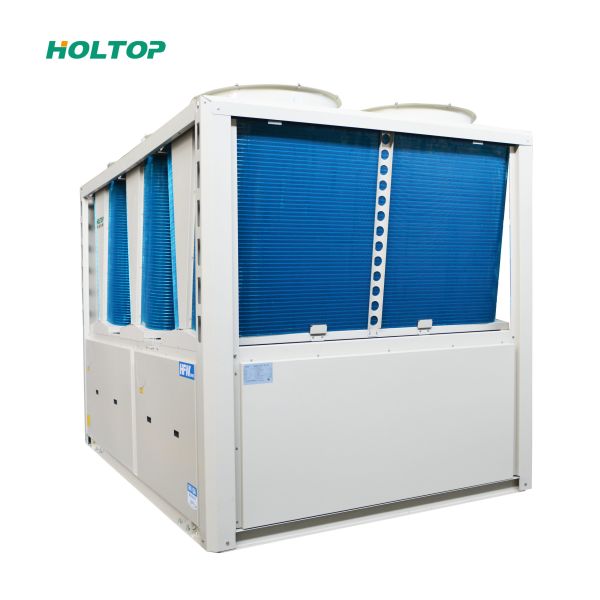

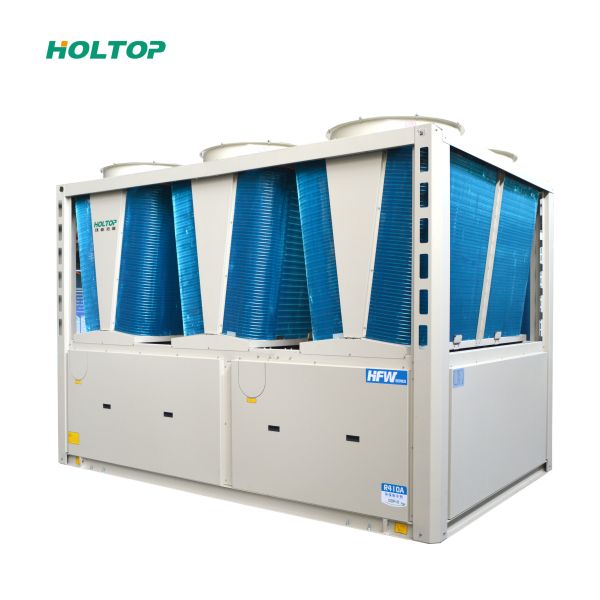

Holtop HFW-980HA1 Vortex Module-Type Air-Cooled Chilled Water (Heat Pump) Unit
The Holtop vortex module-type air-cooled chilled water (heat pump) unit utilizes advanced modular technology with air as the cooling/heating medium. This integrated central air conditioning equipment serves as both a cooling/heating source and combined unit, compatible with fan coil units, cabinet-type air handlers, ceiling-mounted units, and fresh air systems to form semi-centralized air conditioning solutions.
Key Features & Benefits
  • Modular Design & Hierarchical Startup: Flexible module combination without main/secondary distinction. Supports up to 16 units per group with hierarchical startup to reduce current impact on power grids.
  • Intelligent Defrosting: Multi-variable detection for precise frost timing. Dual-system design enables interval defrosting with manual override for harsh conditions.
  • Flexible Application: Easy expansion for phased investment. Compact size enables independent transport and installation without special机房 or cooling water systems.
  • Safe Operation Control: Comprehensive safety protection functions with intelligent multi-variable monitoring for efficient, stable performance.
  • Fault Backup Operation: Dual-compressor design ensures continued operation if one compressor fails, maintaining system functionality.
Technical Specifications
Rated Voltage:Three-phase 380V/3N~
Rated Frequency:50Hz
Power Supply Voltage:±10% of rated voltage
Control Method:Remote controller
Fan Type:Axial flow low-noise fan
Storage Conditions:-28 to 85℃
Operating Range
Operating ConditionOutdoor Ambient TemperatureUnit Outlet Water Temperature
Cooling15℃ ≤ Temperature ≤ 48℃5℃ ≤ Temperature ≤ 15℃
Heating-15℃ ≤ Temperature ≤ 21℃40℃ ≤ Temperature ≤ 50℃
Variable Operating Conditions - Refrigeration Systems
Outlet Temperature (℃) 25℃ Environment 30℃ Environment 35℃ Environment 40℃ Environment 45℃ Environment
51.071.000.940.840.81
61.101.030.970.870.83
71.141.071.000.910.86
81.171.101.030.940.88
91.201.131.060.980.91
101.231.161.091.010.93
111.271.191.121.040.96
121.311.231.151.070.99
131.341.261.171.091.01
141.371.291.201.121.03
151.411.321.231.141.06
Variable Operating Conditions - Heating Mode
Outlet Temperature (℃) 15℃ Environment 10℃ Environment 7℃ Environment 0℃ Environment -5℃ Environment -10℃ Environment
301.231.101.030.940.880.75
351.211.091.020.930.870.75
401.201.081.010.910.850.74
451.191.071.000.900.840.74
501.171.050.980.850.800.74
Model Comparison - Large Vortex Modular Units
Parameter HFW-420HA1 HFW-560HA1 HFW-840HA1 HFW-980HA1 HFW-1120HA1
Nominal Cooling Capacity (kW)420.0560.0840.0980.01120.0
Nominal Heating Capacity (kW)454.0605.0908.01059.01210.0
Refrigeration Input Power (kW)129.2172.3258.4301.5344.6
Heating Input Power (kW)132.4176.4264.8308.8352.8
Compressor Quantity34678
Fan Power (kW)1.8x61.8x81.8x121.8x141.8x16
Airflow (m³/h)23500x623500x823500x1223500x1423500x16
Nominal Water Flow Rate (m³/h)72.296.3144.4168.5192.6
Water Resistance (kPa)6565656565
Pipe ConnectionsDN125DN125DN125*2DN125*2DN125*2
Refrigerant Charge (kg)24.0x324.0x424.0x624.0x724.0x8
Dimensions LxWxH (mm)3540x2280x25404700x2280x25407080x2280x25408240x2280x25409400x2280x2540
Weight (kg)4020/41605350/55408040/83209370/970010700/11080
Important Notes:
1. Nominal cooling capacity test conditions: water flow rate 0.172 m³/(h*kW), outlet water temperature 7°C, outdoor ambient temperature 35°C.
2. Nominal heating capacity test conditions: water flow rate 0.172 m³/(h*kW), outlet water temperature 45°C, outdoor dry/wet bulb temperature 7/6°C.
3. Modular unit combination total water pipe requires on-site fabrication and installation.
4. Modular units can be combined from 1 to 16 units as needed. Above table shows single unit parameters.
5. Control accessories (remote controller, user manual, connection cables) must be ordered separately.
