Environmental Protection Hollow Paddle Dryer Industry Machine Sludge Treatment
Environmental Protection Hollow Paddle Dryer Industry Machine Sludge Treatment
Specifications
Brand Name :
Xin Shengman
Model Number :
sludge Dryer
Certification :
ISO9001 and CE
Place of Origin :
CHANGZHOU
MOQ :
1 pc
Price :
USD1,5000-USD20,3000
Payment Terms :
T/T
Supply Ability :
6sets/Month
Delivery Time :
30-60 days

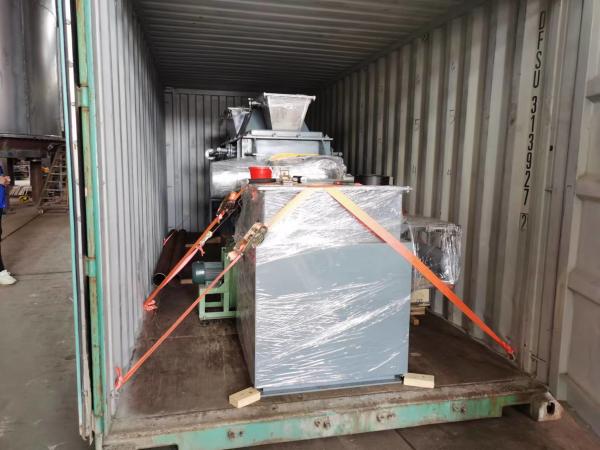

Packaging Details :
Plywood cases
Name :
Sludge Treatment
After-sales Service :
Engineers available to service machinery overseas
Warranty :
1 year
Material :
SUS304, SUS304L, SUS316, SUS316L
Heating Method :
hot water/steam/oil
Capacity :
10-5000 Kg/h
Heating source :
Steam, electricity, etc
Condition :
New
Application :
sludge
Color :
Stainless Steel Color
Supplier :
chinese factory
Description

Environmental Protection Hollow Paddle Dryer Industry Drying Machine

The machine has a heated through, containing rotating heated paddle shafts. The specially shaped paddles do not have a transport function but are designed for maximum heat transfer. This results in an excellent control of the temperature of the product and enables a uniform product quality. At the outlet side, the product moves out of the machine via an adjustable overflow.

paddle dryers are well-known for their robust construction with accurate constant tolerances. ANDRITZ Gouda offers any solution that contributes to the reliability of your particular production process. The machines are manufactured with sophisticated, state-of-the-art welding procedures, according to FEM analysis, so they can withstand high temperatures, heavy duty products and corrosion. The machines are designed for a long, continuous lifecycle.

Environmental Protection Hollow Paddle Dryer Industry Machine Sludge Treatment

Working Principle

KJG Series New Type Hollow Paddle Dryer for Industrial Sludge is a kind of conduction heating and low rotating speed-stirring type drier. There is jacket on the body of drier, hollow oar blade on the hollow shaft, filling heating medium in them, wet material is stirred by oar blade and carries on heat exchange with shaft and oar blade. The structure of the machine is generally horizontal type with two or four shafts.

Environmental Protection Hollow Paddle Dryer Industry Machine Sludge Treatment

Environmental Protection Hollow Paddle Dryer Industry Machine Sludge Treatment

Technical parameters

Model KJG-2.7 KJG-24 KJG-52 KJG-81 KJG-110
Heat transfer area 2.7 24 52 81 110
effective volume 0.06 1.53 3.96 6.43 9.46
revolution 15-30 10-20 10-20 5-15 5-10
power 2.2 11 30 55 95
width of dryer body 306 1118 1474 1828 2210
total width 736 1474 1854 2286 2668
length of dryer body 1956 3454 5258 6020 6122
total length 2972 6147 8306 9678 9880
distance between feeding and disharging 1752 3150 4954 5562 5664
height in center 380 1066 1220 1220
total height 762 2032 2464 2668
steam inlet (2) 3/4 (2) 1 (2) 11/2 (2) 11/2 (2) 2
water outlet (2) 3/4 (2) 1 (2) 11/2 (2) 11/2 (2) 2

Environmental Protection Hollow Paddle Dryer Industry Machine Sludge Treatment

Applications

Petrochemical industry: polyolefin powder, polycarbonate resin, high and low-density polyethylene, linear low-density polyethylene, polyacetal granules, nylon 6, nylon 66, nylon 12, acetate, polyphenylene sulfide, propylene base resin, polypropylene, engineering plastics, polyvinyl chloride, polyvinyl alcohol, polystyrene, polyester, polyoxymethylene, styrene-acrylonitrile copolymerization, ethylene-propylene copolymerization.


Environmental protection industry: sludge, electroplating sewage sludge, boiler soot, sugar factory waste residue, pharmaceutical factory waste residue, MSG factory waste residue, coal ash.


Feed industry: soy sauce residue, bone-based feed, distiller's grains, food scraps, apple pomace, orange peel, soybean meal, chicken bone feed, fish meal, feed additives, bio-sludge.


Food industry: starch, cocoa beans, corn kernels, salt, modified starch, medicines.


Chemical industry: soda ash, NPK compound fertilizer, kaolin, bentonite, white carbon black, carbon black, phosphogypsum, calcium sulfate, calcium nitrate, magnesium carbonate, sodium cyanide, oxidized sodium fluoride, aluminum hydroxide, barium sulfate, calcium carbonate, molecular sieves, dyes, saponins.

Environmental Protection Hollow Paddle Dryer Industry Machine Sludge Treatment

Features

1) Low energy consumption: As a result of indirect heating, no much air take away the heating, the outer wall has insulation layer, the heat efficiency can be up to 90%. For slurry, evaporating 1kg of water just need 1.2kg vapor.
2) cheap investment: it has huge effective heat transfer surface area per unit, reduce treatment time, let the machine size become small, so It greatly reduces the construction area and building space.
3) wide range of materials handling: can use different types of media, not only can treat heat-sensitive materials, but also handle high-temperature materials. Common medias are: water vapor, thermal oil, hot water, cooling water and so on.
4) flexible operation method: Can be continuous operation or intermittent operation, can be applied in many fields.
5) Low environmental pollution: don't use air to dry material, dust material entrainment is rare. Small solvent evaporation, easy to treat. For contaminated materials or solvent recovery conditions, closed-loop can be used.
6) Cheap operating costs: Low-speed mixing and reasonable structure, Low wear, low maintenance costs. For normal operation, just only 1 person / day.
7) Stable operation: Due to the special compression-expansion stirring of the wedge blades, the material particle contact with the heat transfer surface enough, it ensure the processing is stable.

Environmental Protection Hollow Paddle Dryer Industry Machine Sludge Treatment
