Specifications
Brand Name :
HLD
Model Number :
P3/P6
Certification :
CCC/CE/FCC/RoHS
Place of Origin :
China
Description

SculptStone Holographic Invisible Screen Ultralam Series P2.5/P3.9/P6 Flexible & Cuttable

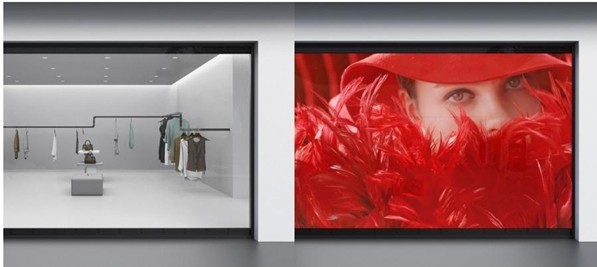

The screen is as transparent as nothing when turned off, with sensory transparency exceeding 90%.

It maximizes spatiallighting and visibility, achieving perfect coexistence of display and environment.

SculptStone Holographic Invisible Screen Ultralam Series P2.5/P3.9/P6 Flexible & Cuttable

The innovative display panel enables large-size, seamless and structure-free splicing, with the screen's

transparent ratio over 90%. Images appear to float in the air, breaking the boundary between reality and digital.

SculptStone Holographic Invisible Screen Ultralam Series P2.5/P3.9/P6 Flexible & Cuttable

Adopting vertical and horizontal equal-pitch pixel arrangement and integrated lamp-driver static driving technology,

combined with 16-bit high grayscale level, it presents rich and delicate colors with flicker-free and jitter-free HD stable images.

SculptStone Holographic Invisible Screen Ultralam Series P2.5/P3.9/P6 Flexible & Cuttable

Directly delivering spatial floating image effects, it creates a stunning naked-eye AR visual feast, immersing audiences in the shocking scene of virtual-real integration.

SculptStone Holographic Invisible Screen Ultralam Series P2.5/P3.9/P6 Flexible & Cuttable

Display modules, receiving cards and HUB boards are highly integrated, with power and signal interfaces featuring integrated quick connection. It greatly simplifies the installation process and improves maintenance efficiency.

SculptStone Holographic Invisible Screen Ultralam Series P2.5/P3.9/P6 Flexible & Cuttable

Built-in FLASH chip can automatically store and intelligently restore calibration data.No manual debugging is required after module replacement, as the system automatically retrieves data to ensure consistent color and brightness across the entire screen.

SculptStone Holographic Invisible Screen Ultralam Series P2.5/P3.9/P6 Flexible & Cuttable

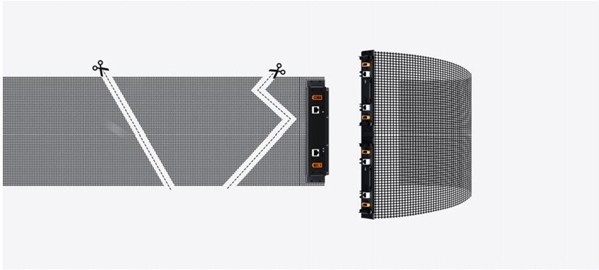

The screen is not only flexible and bendable to fit curved and irregular spaces, but also can be flexibly cut according to scenarios, truly realizing customized creative display.

SculptStone Holographic Invisible Screen Ultralam Series P2.5/P3.9/P6 Flexible & Cuttable

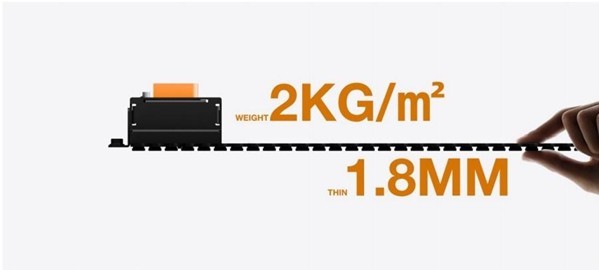

With a weight of only 2kg/m² and a thickness as thin as 1.8mm, its extreme thinness and lightness allow it to be easily integrated into various special application scenarios such as glass curtain walls, windows and exhibition halls without occupying extra space.


Model

U3

U6

LED Specification

2121

2121

Pixel Pitch (mm)(horizontal/vertical)

3.91-3.91

6.25-6.25

Pixel Density(dot/m²)

65536

25600

Transparency Rate

92%

95%

Profile Dimension(mm)(w*h)

250*1000/250*1199/250*1500

250*1000/250*1200/250*1500

Display Dimension(mm)(w*h)

Module Non-Coplanarity Module Coplanarity

250*1000/250*1199/250*1500 250*953/250*1152/250*1453

Module Non-Coplanarity Module Coplanarity

250*1000/250*1200/250*1500 250*953/250*1153/250*1453

Resolution (dot)(w*h)

Module Non-Coplanarity Module Coplanarity

64*256/64*307/64*384 64*244/64*295/64*372

Module Non-Coplanarity Module Coplanarity 40*160/40*192/40*240 40*152/40*184/40*232

Brightness(cd/m²)

≥3000(Black Body)≥4000(White Body),Module Size≤1200mm

≥2000(Black Body)≥3000(White Body),Module Size≤1500mm

≥3000(Black Body)≥4000(White Body),Module Size≤1200mm

≥2000(Black Body)≥3000(White Body),Module Size≤1500mm

Calibration Parameters

Module/Recelver Card Flash Calibration Storage

Module/Receiver Card Flash Calibration Storage

Maximum Power Consumption (w/m)

560

560

Average Power Consumption (w/m)

232

232

Weight (Kg/set)

1.5KG(1000*1000V/1.6KG(1000*1199/1.7KG(1000*1500)

1.5KG(1000*1000V1.6KG(1000*1200)/1.7KG(1000*1500)

Color Temperature(K)

6500

6500

Scanning Mode

Light &Driver Integrated Static Driving

Light &Driver Integrated Static Driving

Frame Rate(Hz)

60~120

60~120

Lifespan

≥100,000.00 hours

≥100,000.00 hours

Pixel Configuration

16bit

16bit

Input Voltage

AC100~240V50/60 Hz

AC100~240V50/60Hz

Power Supply

Chenlian CL-PAS6-300-4.2

Chenlian CL-PAS6-300-4.2

Recelving Card

B7S/N6S Supports Direct Replacement of the Receiving Card

B7S/N6S Supports Direct Raplacementof the Receiving Card

Working Temperature

Temperature-20-50℃

Temperature-20℃-50℃

Working Humidity

Humidity:20%-85%(Without Condensation)

Humidity:20%-85%(Without Condensation)

Storage Temperature

Temperature-20℃~60℃

Temperature-20℃-60℃

Storage Humidity

Humidity:10%-85%(Without Condensation)

Humidity:10%-85%(Without Condensaion)

Protetion Degree

IP20

IP20

Installation Method

Hanging Up,Fixed Mounting,PCB Side Glued

Hanging Up,Fixed Mounting,PCB Side Glued

Instllation Environment

Indoor

Indoor

Packing Way

Pearl Cotton+Wooden Box/Flight Case

Pearl Cotton+Wooden Box/Flight Case
