Sub Adapters Drill Bit Connector For Hard Soft Formation Water Well Drilling
Sub Adapters Drill Bit Connector For Hard Soft Formation Water Well Drilling
Sub Adapters Drill Bit Connector For Hard Soft Formation Water Well Drilling
Sub Adapters Drill Bit Connector For Hard Soft Formation Water Well Drilling
Sub Adapters Drill Bit Connector For Hard Soft Formation Water Well Drilling
Sub Adapters Drill Bit Connector For Hard Soft Formation Water Well Drilling
Specifications
Brand Name :
JCDRILL
Model Number :
all
Certification :
ISO,CE
Place of Origin :
Hebei,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs/year
Delivery Time :
5-7 days
Packaging Details :
Standard Export Packaging
Material :
Carbon Steel
Machine Type :
Drilling Tools
Application :
drilling tools connection
Production Time :
5-7 Days
Length :
as needed
Size :
Customized
Description

Sub Adapters Drill Bit Connector For Hard Soft Formation Water Well Drilling

Application

Sub & adapters are used to connect two different types or sizes of threads. Getting the right tooling sizes and styles

for different types of casing or drill rod isn’t easy; to simplify the task N&N Drilling Supply offers a full line of quality sub adapters.

Manufactured From Heat Treated 4142 Alloy

Subs and Adaptors are manufactured from quality heat treated alloy steel for durability and strength.

At JCDRILL, you can get just about any customized thread adapter or saver sub you wish.
We do keep quite an assortment in stock, but you can also have your sub made to your specifications.
Call us with your desired outer diameter, length, type of threads, and wrench flats, and your customized sub will be ready very soon.

Available Adapter Configurations:

  • Box x Pin
  • Pin x Pin
  • Box x Box
  • Pin x Blank
  • Box x Blank

Sub Adapters Drill Bit Connector For Hard Soft Formation Water Well Drilling

Sub Adapters Drill Bit Connector For Hard Soft Formation Water Well Drilling

Specification

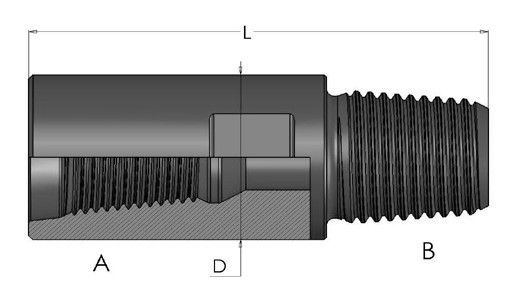

Female A Male B Diameter A Diameter B Length
2 3/8API Reg 2 3/8API Reg 77 77 140
2 3/8API Reg 2 3/8API Reg 90 90 140
2 3/8API Reg 2 3/8API Reg 102 102 130
2 3/8API Reg 2 3/8API Reg 90 90 144
2 3/8API Reg 2 3/8API IF 95 95 130
2 3/8API Reg 2 7/8API Reg 90 102 120
2 3/8API IF 3 1/2API Reg 90 90 164
2 7/8API Reg 2 3/8API Reg 90 90 154
2 7/8API Reg 2 3/8API Reg 90 115 120
3 1/2API Reg 3 1/2API Reg 115 115 219
3 1/2API Reg 2 3/8API IF 115 115 160
3 1/2API Reg 2 7/8API Reg 115 115 160
3 1/2API Reg 2 7/8API IF 115 115 160
3 1/2API Reg 3 1/2API Reg 115 115 160
3 1/2API Reg 4 1/2API Reg 146 146 132
4 1/2API Reg 3 1/2API Reg 146 115 235
F48×10 F42×10 59 59 203
F48×10 F48×10 59 59 203
F48×10 2"API Reg 59 59 203

Female - Female

Female A Male B Diameter A Diameter B Length
2 3/8API Reg 2 3/8API Reg 77 77 200
2 3/8API Reg 2 3/8API Reg 90 90 200
2 3/8API Reg 2 7/8API Reg 90 90 225
2 3/8API Reg 3 1/2API Reg 115 115 210

Male - Male

Female A Male B Diameter A Diameter B Length
2 3/8API Reg 2 3/8API Reg 90 90 70
2 3/8API Reg 3 1/2API Reg 90 115 97
3 1/2API Reg 3 1/2API Reg 115 115 90


Packing& Delivery

Sub Adapters Drill Bit Connector For Hard Soft Formation Water Well Drilling

FAQ
1. Shipping time for an order
We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
2. Quality Control
Strict inspection and testing for every order before shipping out .
3. How can we trust your company?
We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
4. After Sales Service
Free replacement will provide once the failure confirmed caused by our product quality.
