Specifications
Place of Origin :
Henan, China
Type :
Blast Furnace
Use :
Melting Furnace
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
Pump
Brand Name :
Recycle
Voltage :
380V
Dimension(L*W*H) :
As the Capacity
Weight (T) :
20 T
Power (kW) :
49
Warranty :
12 months
Key Selling Points :
Accurate temperature control
After-sales Service Provided :
Engineers available to service machinery overseas
Application :
Car Battery Recycling Plant
Product Name :
20 Ton melting Cupola Furnace For the Lead Smelting
Name :
Lead Smelting Cupola Furnace
Melting Material :
Lead Paste
Capacity :
20-100ton
Duty cycle :
24H Continuous Work
Feature :
Environmentally Friendly
Output Lead Shape :
Lead Ingot
Function :
Car Battery Smelting Furnace
Condition :
New
After Warranty Service :
Video technical support, Online support
Local Service Location :
United States, Philippines, Pakistan, Japan
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Home Use
Showroom Location :
Pakistan, India
Marketing Type :
New Product 2022
Certification :
CE
Packaging Details :
Standard Packing or as Customer's Requirement
Lead Smelting Cupola Furnace
Port :
Qingdao Port or Specified Port
Supply Ability :
10 Set/Sets per Month Lead Smelting Cupola Furnace
Price :
$30,000.00 - $120,000.00/sets
Description
Lead Acid Battery Recycling Melting Cupola Furnace
Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting


Background
There are different alternatives to the final disposition of batteries: landfill, incineration and recycling. The number of processes for waste lead acid battery recycling have increased over the last few years, mainly because of the environmental impact caused by their disposal.
Therefore, the reearch of battery recycling and reuse is becoming more and more necessary. As for this international situation, we designed the china supply lead plate grid battery scrap recycling cupola furnace for lead battery separating and recycling.
Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting

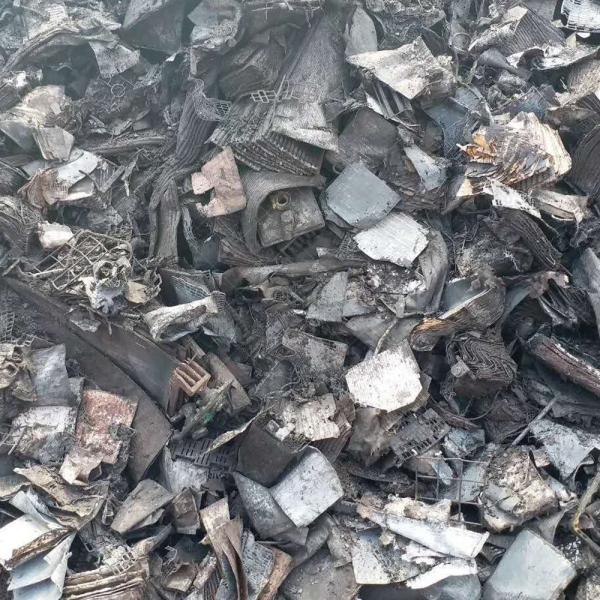

Raw Materials


Raw materials are the lead separated by the battery separation section
(automotive battery, truck battery, electric bicycle battery, etc.)
Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting


Final Products


Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting

Product Introduction
Lead Acid Battery Melting Cupola Furnace is a melting device used in foundries that can be used to melt cast iron, copper, lead etc. The cupola can be made almost any practical size. The overall shape is cylindrical and the equipment is arranged vertically, usually supported by four legs.
The overall of Lead Acid Battery Melting Cupola Furnace look is similar to a large smokestack. The bottom of the cylinder is fitted with doors which swing down and out to "drop bottom" . The top where gases escape can be open or fitted with a cap to prevent rain from entering the cupola. To control emissions a cupola may be fitted with a cap that is designed to pull the gases into a device to cool the gases and remove particulate matter.

Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting

Structure
1. Raw materials are melting in Lead Acid Battery Melting Cupola Furnace with water cooling system.
Lava flows out from the side hole at lower part of cupola furnace, and there will be lead slag out from another exit and be collected by the mould.

2. The final product is the lead ingot, the lead slag can be sold directly.

3. There is the environmental protection system installed combined with the cupola furnace, which can keep there is an efficient pollution control system in steady. The composition of waste gas contains: CO2, CO, SO2 and dust.

Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting

Environmental Protection System
Our research and development of products are carried out on the premise of environmental protection. As lead blocks are smelted to produce harmful gases such as carbon dioxide, carbon monoxide and sulfur dioxide, we are equipped with a flue gas collection system and a harmful gas purification system.
It is an environmentally friendly product that can become rich.

Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting


Product Advantages

1. Lead Acid Battery Melting Cupola Furnace can run as your needs, 24 hours running is no problem, Higher output performance than traditional lead melting furnace;

2. Feeding automatically, lower manpower cost, output continuously; The lead liquid output continuously which is different from the output by batch;

3. Better safety control system; The system will cut of the power automatically in case of some emergency;

4. Environmental protection system - the whole line is configured with the air pollution control system.
Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting

Technical Parameters
Model
Capacity (24 Hours)
RQ-20
20 Ton
RQ-40
40-50 Ton
RQ-60
60-70 Ton
RQ-80
80-90 Ton
RQ-100
100-120 Ton
Working Performance
Raw Material
Lead Plate Separated From Lead Acid Battery
Final Product
Lead Ingot
NOTE:

Working voltage: 380±10V(415V ,440V also can be customized);

(If you want more detailed parameters and quotations, please feel free to send an inquiry)

Customer Site
80 Tons Per Day Customer Working Site In African
Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting

70 Tons Daily Customer Worksite, Automatic Lead Output
Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting

50 T/D Working Site, Automatic Circulation, Air Pollution Treatment System
Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting

70 Tons Daily Customer Site, Welcome To Visit
Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting

60 Tons Per Day, You Can Visit Customer Sites In China
Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting
Company Show
As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.
We can dispatch engineers to overseas to help you with installation, training if you need.
Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting
Advanced and Environmentally Friendly 20 Ton Melting Cupola Furnace for Lead Smelting
FAQ
Q: What type of Lining for Furnaces?

A: High manganese furnace plate, The minimum capacity is 20 ton/d.

Q: Which Raw Materials Are Suitable For Melting Furnace?

A: For scrap battery lead recycling, can not used to melt the lead ore.

Q: How Many Reducing Lead Ingot Can Be Produced By Investing A Ton of Raw Materials(Car Battery)?

A: One ton Car Battery can produce about 600 kg Reducing lead ingot.

Q: What About The Machine Installation?

A: We will send engineers to customer working site for the installation guidance,commissioning and training when everything is ready on the working site, like power, cable, labors, forklift, etc.
