High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
Specifications
Place of Origin :
Henan, China
Condition :
New
Machine Type :
Automatic
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2019
Warranty of core components :
1 Year
Core Components :
Engine, Motor
Brand Name :
RECYCLE
Voltage :
220V/380V
Power :
220KW~700KW
Dimension(L*W*H) :
As Designed
Warranty :
1 Year
Key Selling Points :
High Productivity
Showroom Location :
Egypt, Canada, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, Chile, UAE, Algeria, Sri Lanka, South Africa, Malaysia, Morocco
Applicable Industries :
Manufacturing Plant, Energy & Mining
Product name :
High Performance Copper Rod Upward Continuous Casting Unit
Color :
As Requirements Copper Rod Upward Continuous Casting Unit
Raw material :
Scrap Copper/Cathode Copper
Diameter :
8mm to 30mm High Performance Copper Rod Upward Continuous Casting Unit
Rod Casting Speed :
0~2.8m/min
Application :
Oxygen-free Copper Rod Production
Usage :
Copper Wire Making Equipment
Supplier :
China Automatic Copper Aluminum Rod Upward Continuous Casting Machine
Output :
Electric Wire
Feature :
High Efficency Copper Rod Upward Continuous Casting Unit
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Egypt, Canada, Viet Nam, Philippines, Brazil, Saudi Arabia, Pakistan, India, Thailand, Malaysia, Chile, UAE, Sri Lanka, South Africa, Nigeria
Certification :
CE
Packaging Details :
1). Name: High Performance Copper Rod Upward Continuous Casting Unit
2). Packaging Details: Standard Packaging Or As Customers' Requirements Packaging High Performance Copper Rod Upward Continuous Casting Unit
Port :
Qingdao/Shanghai/Tianjin Port
Supply Ability :
20 Set/Sets per Year
Price :
$30,000.00 - $200,000.00/sets
Description
High Performance Copper Rod Upward Continuous Casting Unit
Product Application

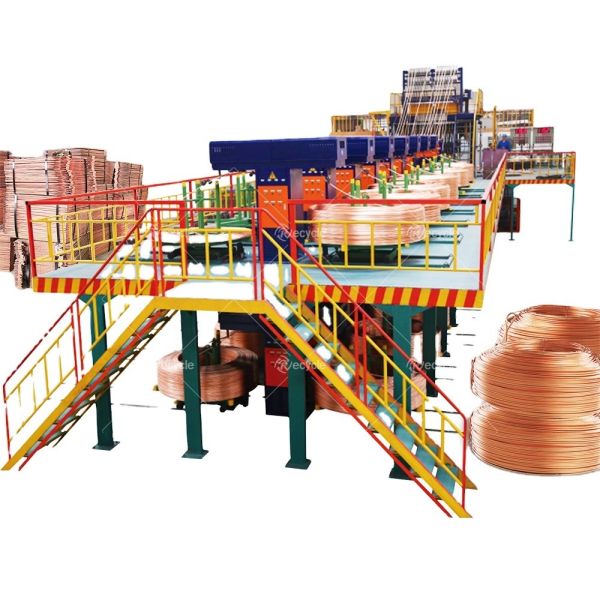

Copper Rod Upward Continuous Casting Machine ( up cast line )
Upward Copper Rod Continuous Casting Full Plant is used to produce the long and bright oxygen-free copper rod with the diameter from 8 to 25mm. Large-length bright oxygen-free copper tube blanks and large-length bright oxygen-free copper slabs.
As a conductive material with high conductivity and low oxygen content, the oxygen-free copper rod is widely used in wire,cable,electromagnetic wire and other industries.
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
Raw Material
The raw materials for Upward Copper Rod Continuous Casting Full Plant should meet the requirements of GB/T467-2010 cathode copper No.1 standard copper Cu-CATH-2, Generally, cathode copper is commonly used, and pure copper is more than 99% waste copper.
High Performance Copper Rod Upward Continuous Casting Unit
Final Products
Long and bright oxygen-free copper rod with the diameter from 8 to 25mm. Large-length bright oxygen-free copper tube blanks and large-length bright oxygen-free copper slabs.
High Performance Copper Rod Upward Continuous Casting Unit

FINAL PRODUCT STANDARD

Raw Materials
The raw materials should meet the requirements of GB/T467-2010 cathode copper No.1 standard copper Cu-CATH-2
Battery Cover Remover
2200*2000*1300 mm
Copper Rod
Copper rod technical indicators should meet the GB/T3952-2008 standard
Density
~8.9Kg/dm3
Tensile Strength
>170N/mm2
Soft Electrical Conductivity
>100% IACS ( 2m2n Flexble Wire )
Soft Electrical Resistivity
>0.15328Ωg/m2
Elongation
>37%

Oxygen Content

≤20ppm
High Performance Copper Rod Upward Continuous Casting Unit

PROCESS DETAILS
1. Cathode copper is directly added to the melting furnace and melted into a liquid by power frequency induction;

2. After melting, the copper liquid will automatically and smoothly overflow into the intermediate holding furnace through the transition chamber;

3. The copper liquid has a stable reduction process by the covered surface of charcoal;

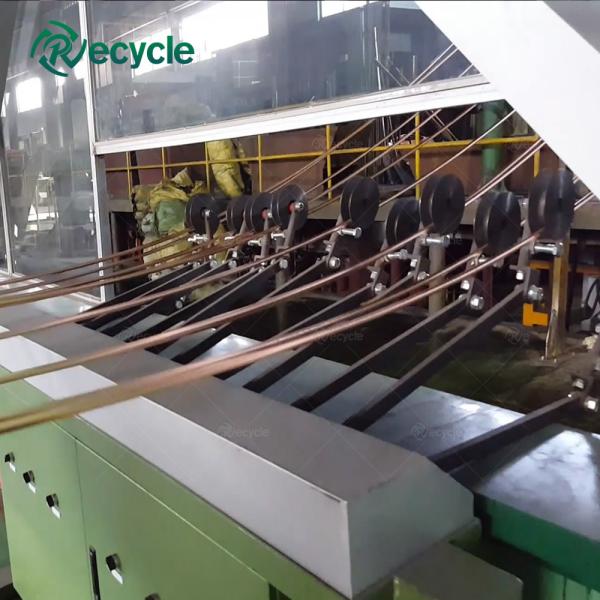

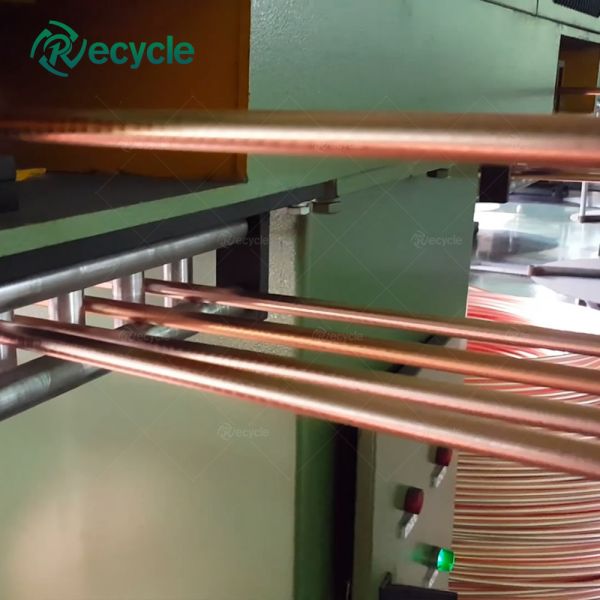

4. After the reduction, the copper liquid is rapidly crystallized into a cast rod through a crystallizer through the continuous casting machine in the holding furnace;

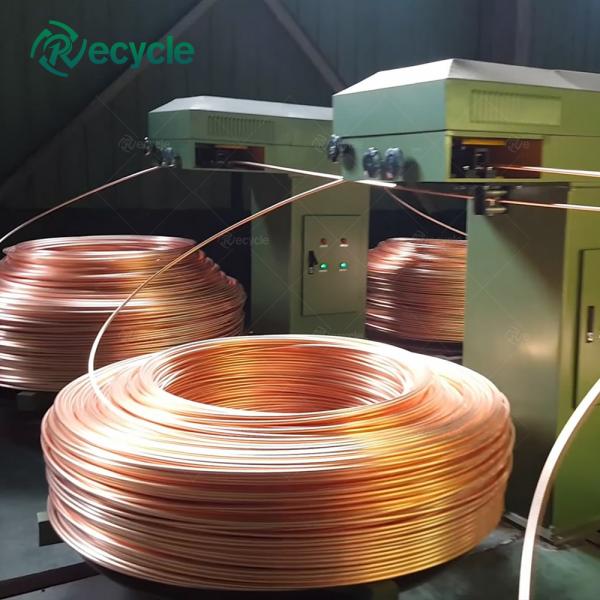

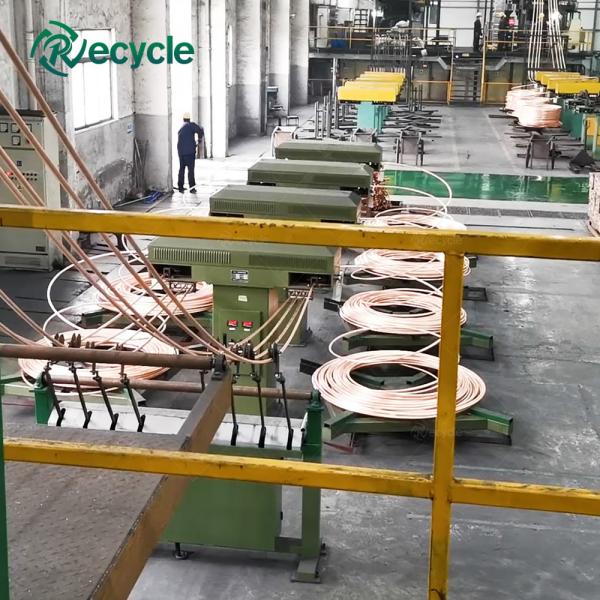

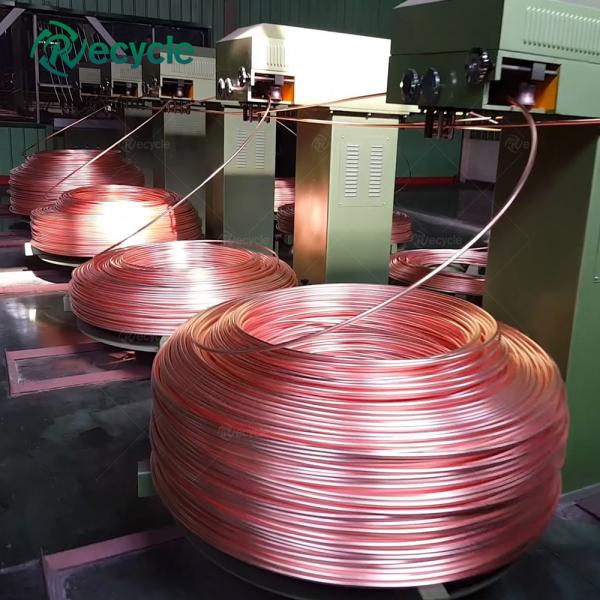

5. Every casting rod is equipped with a controller and a torsion bar machine.The casting rod is led from the continuous casting machine to the controller and the torsion bar through the regulating wheel device to form a circle. After the completion of the circle, the casting rod is cut and hoisted away for the next process.
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
Technical Parameters
Capacity
3000 - 12000T/Year
Furnace Number
2 Melting Furnace+1 Heat Preservation Furnace
Casting Rod Number
24 Pcs
Casting Rob Diameter
φ8mm ~ φ20mm
Upward Speed
6.0 ~ 2800mm/min
Upward Circular Pitch
3-6mm ( Adjustable )
Traction Frequency
0 ~ 800 times/time
Traction Way
Servo Motor Tranction
Winding Specification
φ1000xφ1550x800 ( mm )
Voltage
380V, 50Hz, 3Phase
Melting Copper Speed
1550 Kg/H
Maximum Operating Power
≤560 Kw
Power Consumption
≤330 Kwh/T
High Performance Copper Rod Upward Continuous Casting Unit

DEEP PROCESSING EQUIPMENT
High Performance Copper Rod Upward Continuous Casting Unit

CUSTOMER COOPERATION
Our company can offer you whole processing solution for the copper, such as copper separator, copper electrolysis, copper bar production line etc, and we will offer you the professional installing and training service, to help you to build a perfect copper recycling factory.
High Performance Copper Rod Upward Continuous Casting Unit
About Us
As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.
We can dispatch engineers to overseas to help you with installation, training if you need.
Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
High Performance Copper Rod Upward Continuous Casting Unit
High Performance Copper Rod Upward Continuous Casting Unit
FAQ
Q: Why Choose Us?

1). We are manufacturer with own factory for many years with CE Certification

2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.

3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).

Q: What Is Our Service?

1). Pre-Sale Service

According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.

2). Sales Service

You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.

3). After-Sale Service

We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.

Q: How Do You Ensure The Machine Quality?

A: You can send your sample scrap materials to us and we will test the machine for you
without charging the fees. And we can send the machine test video to you. According to your time, you can pay a visit to our factory to test our machine.

Q: How About The Motor?

A: We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your
requirement.
