Specifications
Payment Terms :
L/C/T/T
Supply Ability :
10pcs/month
Condition :
New
type :
Induction Furnace
Pressure Rising Rate :
0.67
voltage :
380
key selling points :
Flexible Manufacturing
machinery test report :
Provided
weight (t) :
8 T
Ultimate Vacuum Degree :
50Pa
brand name :
OEM
Maximam temperature :
1800℃
Temperature Uniformity :
±5℃
core components :
PLC, Gearbox
Application :
C/C composite material,ceramic matrix composite
usage :
Siliconization Furnace
Brand Name :
Jingtan
Certification :
CE
MOQ :
1 set
Delivery Time :
60 days
Packaging Details :
wooden case
Price :
USD10,000-80,000/SET
Working Atmosphere :
Vacuum /Nitrogen/Argon
place of origin :
Hunan, China
Heating Method :
Resistance/Induction
warranty :
1 Year
video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Description
Specification

Usage:

Silicon penetration furnace is mainly used for liquid phase silicon penetration ceramization of carbon-carbon composites and ceramic matrix composites. The process is mainly used to induce diffusion between powder particles by adding a molten or liquid phase to achieve sintering and bonding of the particles. It has a wide range of applications in the fields of metals, ceramics and composites.

Easy Charging and Discharging Materials Method High Temperature Vacuum Sintering Siliconization Furnace

Processing:

High-temperature silicone penetration furnace makes silicon form a silicide film on the metal surface by contacting the liquid containing silicon element with the surface of the metal material at high temperature. This process is called silicosis. During the process of silicon penetration, the silicon element will diffuse from the penetrant to the surface of the metal material through diffusion, and then combine with the metal atoms to form a silicide. This silicide film improves the surface hardness, wear resistance and corrosion resistance of the metal material.

Easy Charging and Discharging Materials Method High Temperature Vacuum Sintering Siliconization Furnace

Features:

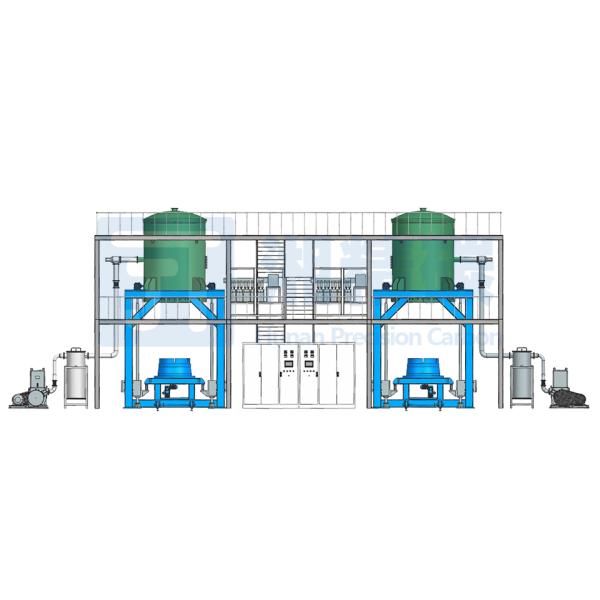

Structural form is horizontal - single door / double door; vertical - top discharge / bottom discharge. Vertical furnace, double-layer furnace structure, water-cooled jacket design. Furnace chamber graphite carbon tube heating body, insulation layer, temperature measurement, monitoring thermocouples and other components. Discharging and loading disk is installed at the bottom of the furnace by motor-driven lifting, which is convenient for discharging and loading. PLC plus touch screen operation mode, with alarm function, high automation program, safe and reliable.

Model SGL-0690 SGL-1015 SGL-1220 SGL-1530 SGL-0610 SGL-1120 SGL-1320 SGL-1520
Working volume(mm) 600*600*900 1000*1000*1500 1200*1200*2000 1500*1500*3000 600*1000 1100*2000 1300*2000 1500*2000
Ultimate temperature(℃) 1800 1800 1800 1800 1800 1800 1800 1800
Temperature uniformity(℃) ±5 ±7.5 ±10 ±15 ±7.5/±10 ±10/±15 ±10/±15 ±15/±20
Ultimate vacuum(Pa) 50 50 50 50 50 50 50 50
PRESSURE RISE RATE(Pa/h) 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67
Heating method resistance resistance resistance resistance resistance/induction resistance/induction resistance/induction resistance/induction
Processing atmosphere vaccum/nitrogen/hydrogen
Company Profile

Easy Charging and Discharging Materials Method High Temperature Vacuum Sintering Siliconization Furnace
Easy Charging and Discharging Materials Method High Temperature Vacuum Sintering Siliconization Furnace

Our company philosoph:

We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.

The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:

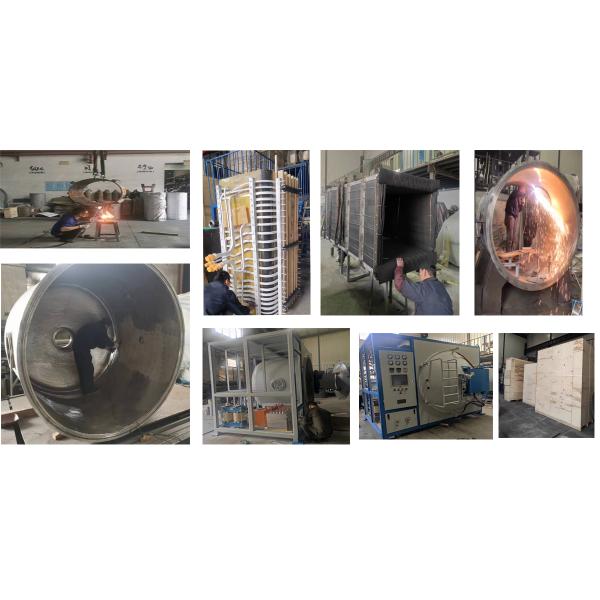

Production process
Easy Charging and Discharging Materials Method High Temperature Vacuum Sintering Siliconization Furnace

Customer Photos

Easy Charging and Discharging Materials Method High Temperature Vacuum Sintering Siliconization Furnace

Customer cooperation cases:

Easy Charging and Discharging Materials Method High Temperature Vacuum Sintering Siliconization Furnace

Our logistics system is all around the world.

Easy Charging and Discharging Materials Method High Temperature Vacuum Sintering Siliconization Furnace
Easy Charging and Discharging Materials Method High Temperature Vacuum Sintering Siliconization Furnace
Easy Charging and Discharging Materials Method High Temperature Vacuum Sintering Siliconization Furnace
Easy Charging and Discharging Materials Method High Temperature Vacuum Sintering Siliconization Furnace
Easy Charging and Discharging Materials Method High Temperature Vacuum Sintering Siliconization Furnace
Easy Charging and Discharging Materials Method High Temperature Vacuum Sintering Siliconization Furnace

Contact me as follow:

Easy Charging and Discharging Materials Method High Temperature Vacuum Sintering Siliconization Furnace
FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?

A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??

A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?

A:Quick response to your enquiry

High quality control

Stable supply chain in the domestic maket

Timely delivery

Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
