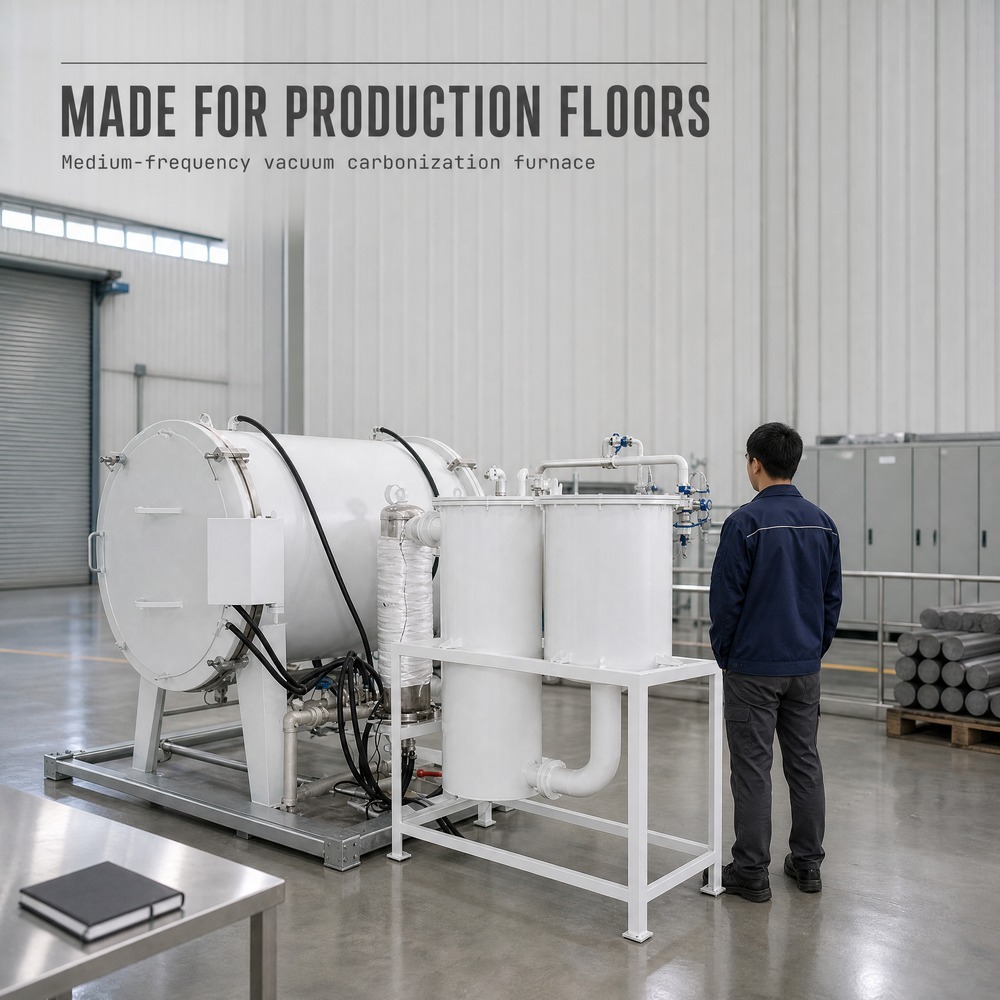

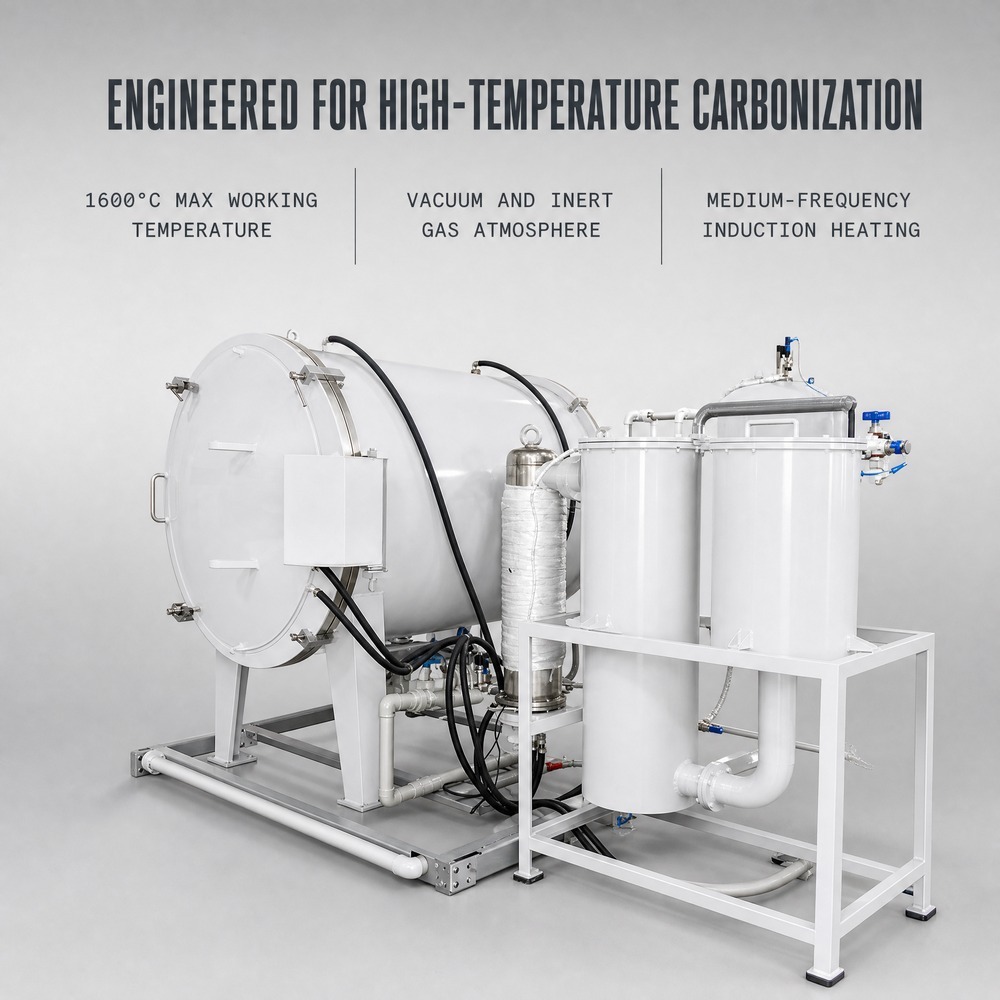

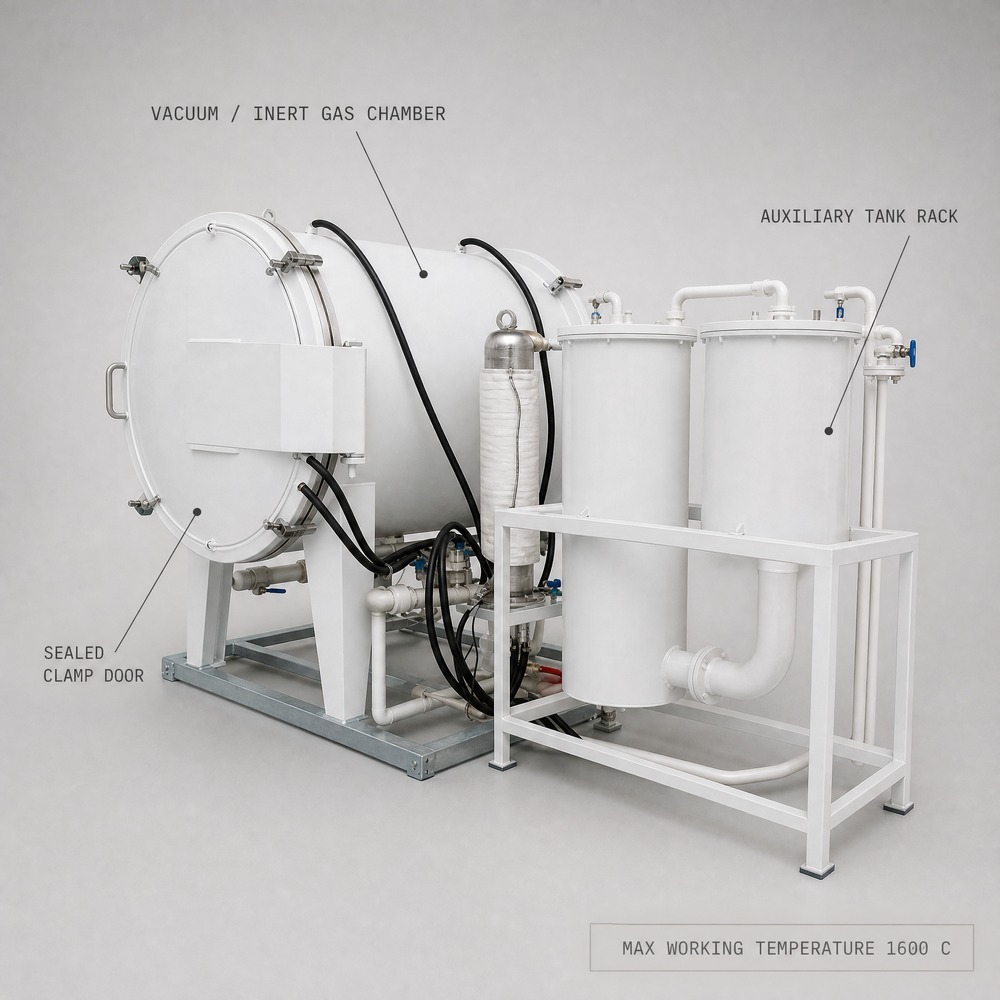

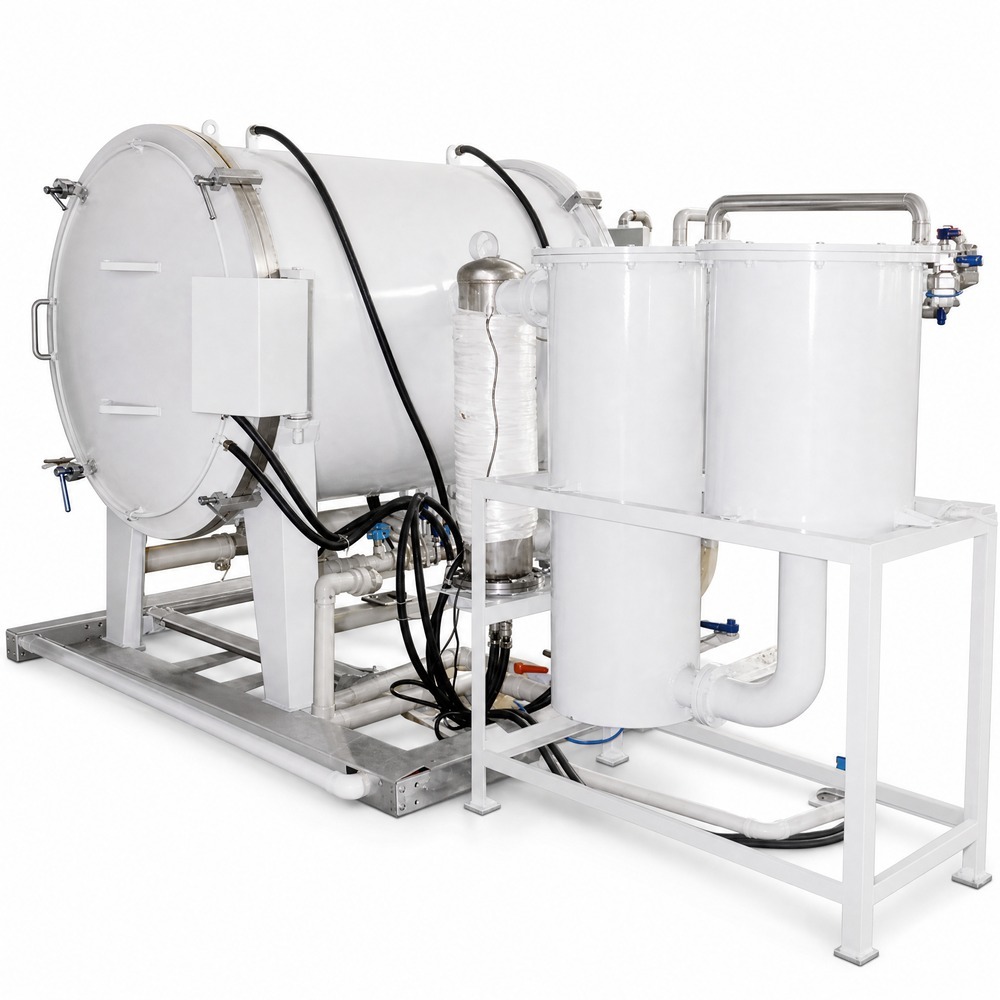

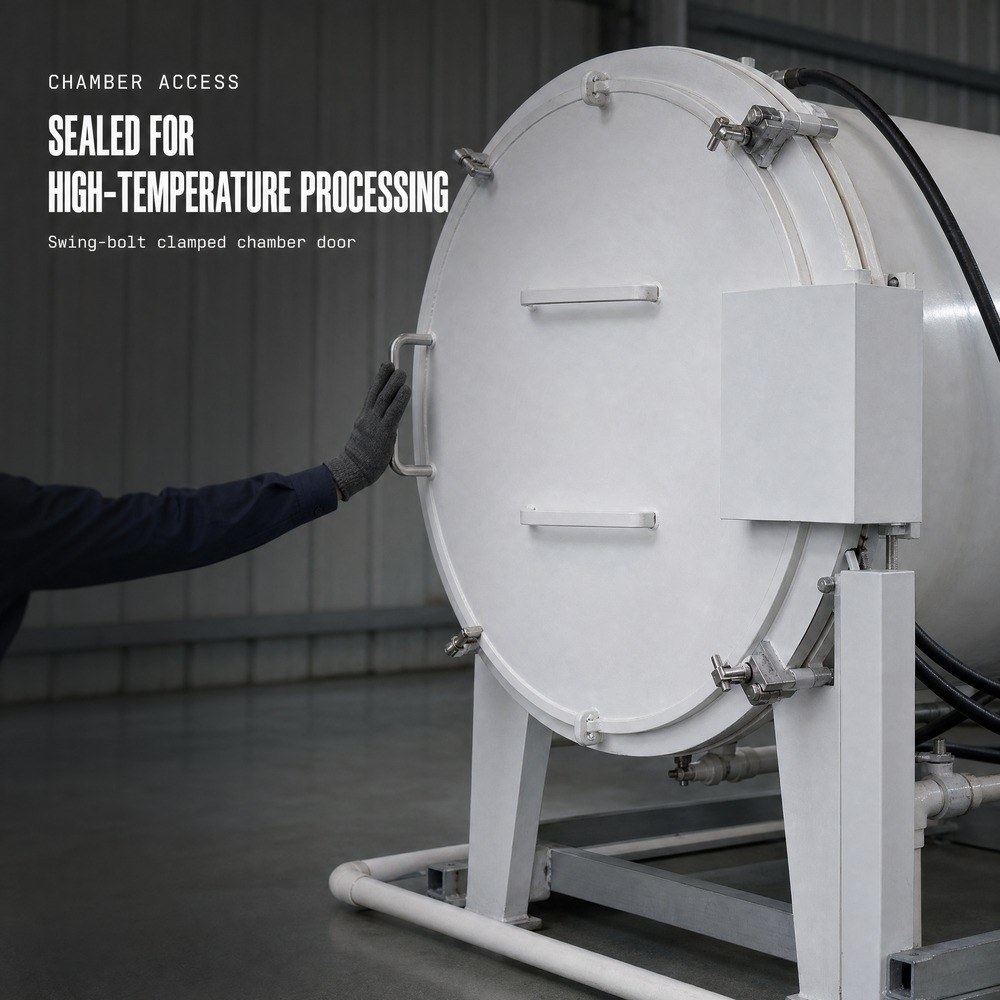

1600 degree horizontal medium frequency Carbonization stove
1600 degree horizontal medium frequency Carbonization stove
1600 degree horizontal medium frequency Carbonization stove
1600 degree horizontal medium frequency Carbonization stove
1600 degree horizontal medium frequency Carbonization stove
1600 degree horizontal medium frequency Carbonization stove
1600 degree horizontal medium frequency Carbonization stove
1600 degree horizontal medium frequency Carbonization stove
1600 degree horizontal medium frequency Carbonization stove
1600 degree horizontal medium frequency Carbonization stove
1600 degree horizontal medium frequency Carbonization stove
1600 degree horizontal medium frequency Carbonization stove
Specifications
Certification :
CE
Payment Terms :
L/C/T/T
Color :
Customized
Place of Origin :
China
Price :
USD8,000-60,000/SET
Packaging Details :
wooden case
size :
Customized
Supply Ability :
10pcs/month
warranty :
one year
Delivery Time :
60 days
Max Temperature :
1600-1800°C
Brand Name :
Jingtan
Cooling Method :
Water Cooling
MOQ :
1 set
Description
Products Description

Medium frequency carbonization furnace is an intermittent induction heating furnace, mainly used for carbide, powder metallurgy industry production of tungsten carbide powder, titanium carbide powder, vanadium carbide powder and other metal powder and composite metal powder.

Operating temperature 1600℃
High temperature volume 35L,100L,200L,340L,540L
Working atmosphere in furnace Vacuum, hydrogen, nitrogen, inert gases, etc
Temperature uniformity ≤±10℃
Temperature measurement Far infrared optical temperature measurement
Temperature Range 800~2400℃ or Normal Temperature 2400℃ Thermocouple measurement
Temperature measurement accuracy 0.2~0.75%
Temperature Control Program control and manual control
Temperature control precision ±1℃
Limiting rate of heating 30℃/min(Empty Furnace,Depending on the high temperature zone volume and furnace structure
1600 degree horizontal medium frequency Carbonization stove

Feature 1:

1800℃ ultra-high temperature furnace body can meet the carbonization heating process of fine, medium and coarse granular WC powder and composite material.

Comprehensive PLC water, electricity, gas automatic control and protection system.

1600 degree horizontal medium frequency Carbonization stove

Feature 2:

Using digital display programmable intelligent temperature control system, automatic precision to complete the temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 20 pieces of a total of 400 different process heating curve.

1600 degree horizontal medium frequency Carbonization stove

Feature 3:

Adopt pure water cooling system, digital flow monitoring system.

Performance medium frequency contactor is used for automatic conversion of furnace body. Compared with traditional carbonization furnace, the system has the advantages of complete reaction, uniform particle size, high combined carbon content, low free carbon content, and high output, good working conditions, long service life.

Company Profile
1600 degree horizontal medium frequency Carbonization stove

Our company philosoph:

We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.

The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:

1600 degree horizontal medium frequency Carbonization stove

Patent for high temperature graphitization furnace:


1600 degree horizontal medium frequency Carbonization stove

Patent for high temperature vacuum hot pressure furnace:


1600 degree horizontal medium frequency Carbonization stove

Patent for high temperature continuous furifing graphitization furnace:


1600 degree horizontal medium frequency Carbonization stove

Patent for carbonization sintering furnace:


1600 degree horizontal medium frequency Carbonization stove

Patent for bottom discharge graphitization furnace:


1600 degree horizontal medium frequency Carbonization stove

Patent for carbon fiber continuous furnace


Production process
1600 degree horizontal medium frequency Carbonization stove

Customer Photos

1600 degree horizontal medium frequency Carbonization stove
Customer cooperation cases:
1600 degree horizontal medium frequency Carbonization stove

Our logistics system is all around the world.

1600 degree horizontal medium frequency Carbonization stove
1600 degree horizontal medium frequency Carbonization stove
1600 degree horizontal medium frequency Carbonization stove

Pre-sales and after sales service

1600 degree horizontal medium frequency Carbonization stove 1600 degree horizontal medium frequency Carbonization stove
FAQ
Are you a factory or trading company?

Q: Are you a factory or trading company?

A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??

A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?

A:Quick response to your enquiry

High quality control

Stable supply chain in the domestic maket

Timely delivery

Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
