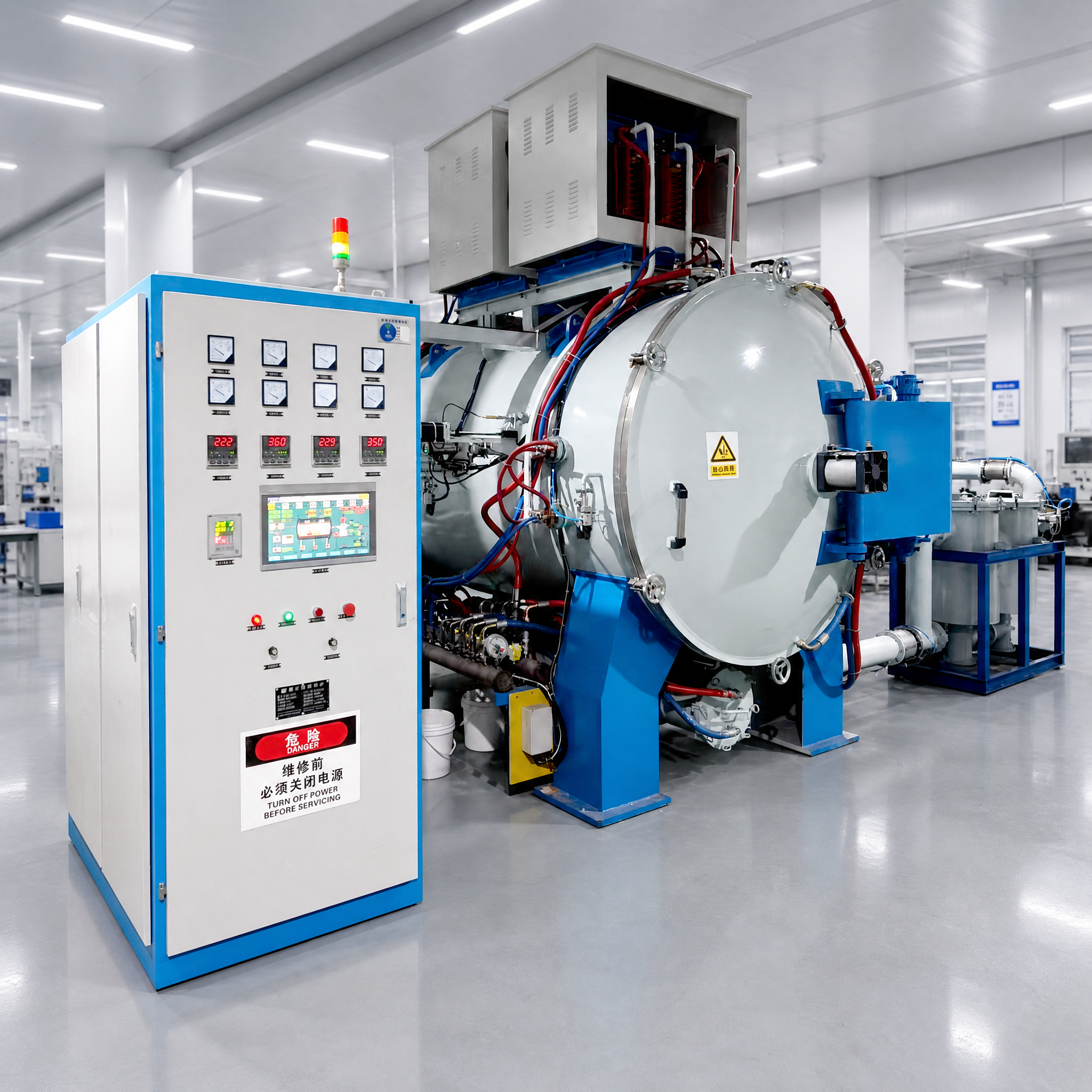

Sintering Furnace Designed to Deliver Consistent Heat Treatment and Controlled Atmosphere for Powder Metallurgy Products
Sintering Furnace Designed to Deliver Consistent Heat Treatment and Controlled Atmosphere for Powder Metallurgy Products
Specifications
Price :
USD10,000-80,000/SET
Packaging Details :
wooden case
machinery test report :
Provided
High Temperature Volume :
0.01m³,0.02m³,0.03m³,0.05m³,0.1m³,0.15m³, 0.2m³,0.3m³
Place of Origin :
China
weight (kg) :
2000
Showroom Location :
United States, Germany, Peru
MOQ :
1 set
video outgoing-inspection :
Provided
Certification :
CE
brand name :
Jingtan
Supply Ability :
10pcs/month
warranty :
1 Year
Marketing Type :
Ordinary Product
Applicable Industries :
Manufacturing Plant, Powder matellurgy industry
Payment Terms :
L/C/T/T
core components :
PLC, Pump
Warranty of core components :
1 Year
Delivery Time :
60 days
Maximum Use Temperature :
1600℃,2000℃,2400℃
Condition :
New
Brand Name :
Jingtan
place of origin :
Hunan, China
Temperature Measurement accuracy :
0.2~0.75%
Description
Specification

Application:

The intermediate frequency induction sintering furnace produced by our factory is an intermittent gas (vacuum) protection furnace.
vacuum/atmosphere sintering of cemented carbide, copper-tungsten alloy, tungsten, molybdenum, alnico-cobalt permanent magnet, SmCo5, Sm2Co17, Ndfeb, titanium alloy and other alloy materials.
Product Advantage:
1).Performance intelligent electric furnace,specially suitable for cemented carbide industry (process permits can also be applied to other industries)
2).Absorb the temperature measurement, temperature control technology, intelligence, new material technology and furnace design
technology at home and abroad.
3).A single set of power supply can be configured with multiple electric furnaces, which are heated by electricity and cooled by
electricity respectively for a single furnace to achieve continuous work.
Maximum Use Temperature
1600℃,2000℃,2400℃
High Temperature Volume
0.01m³,0.02m³,0.03m³,0.05m³,0.1m³,0.15m³, 0.2m³,0.3m³
Working atmosphere n furnace
Vacuum,hydrogen, nitrogen,inert gases,etc
Temperature Uniformity
≤±10℃
Temperature Measurement
Infrared optical temperature measurement,temperature measurement range 800~2400℃ or 0~2400℃
Temperature Measurement accuracy
0.2~0.75%
Temperature Control
Program control and manual control
Temperature Control accuracy
±1℃
Limit heating rate
200℃/min(Empty Furnace,depending on the volume of high temperature zone and furnace structure)

Features:

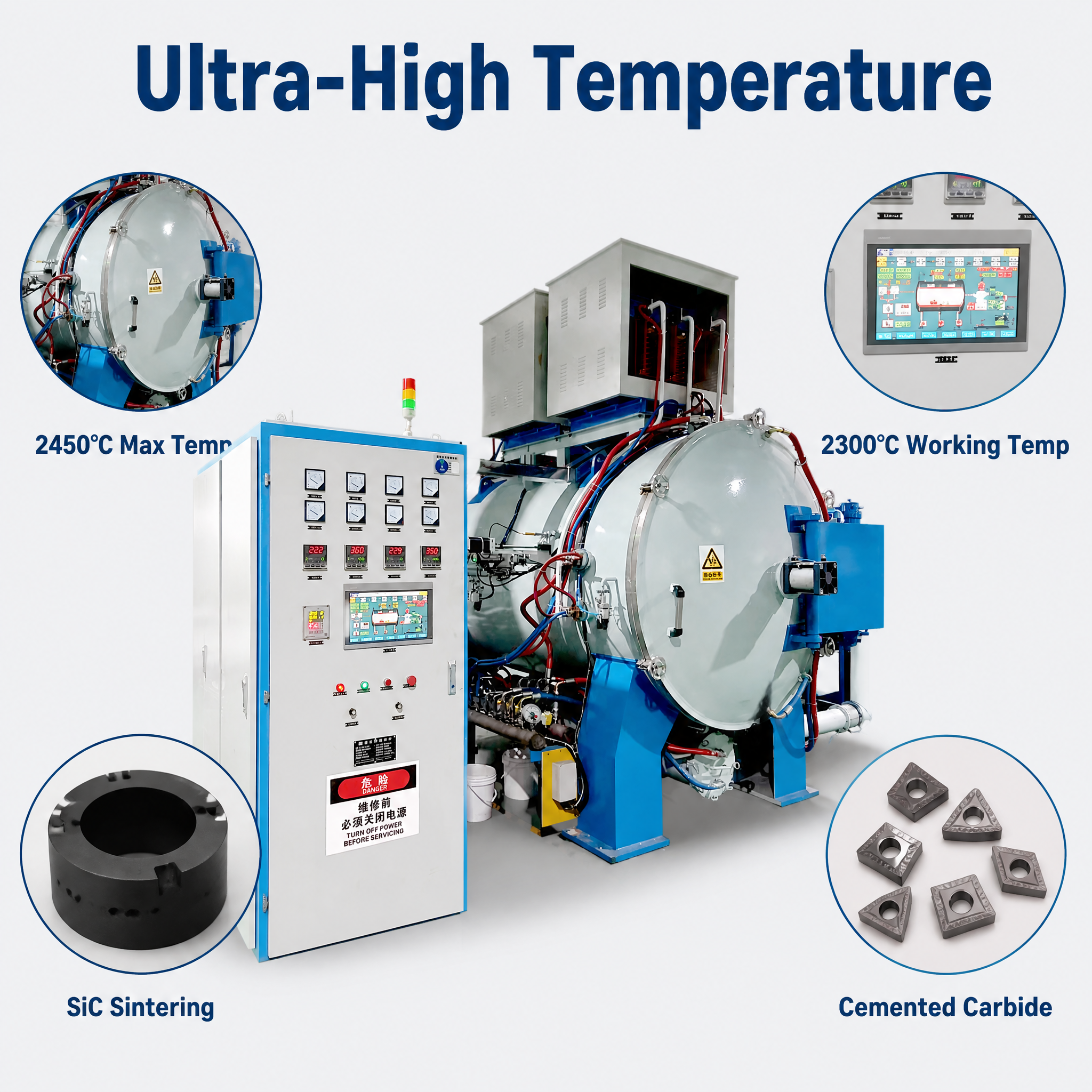

Ultra-high temperature furnace body within 2400℃ can fully meet the sintering of various materials. Using digital display intelligent temperature control system, automatic precision to complete the temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 20 pieces of a total of 400 different process heating curve.
Adopt internal circulation pure water cooling system, digital flow monitoring system;High performance medium frequency contactor is used for automatic conversion of furnace body.
Comprehensive PLC water, electricity, gas automatic control and protection system.
Product parameter:
Sintering Furnace Designed to Deliver Consistent Heat Treatment and Controlled Atmosphere for Powder Metallurgy Products

Features 1:

Ultra-high temperature furnace body within 2400℃ can fully meet the sintering of various materials. Using digital display intelligent temperature control system, automatic precision to complete the temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 20 pieces of a total of 400 different process heating curve.
Sintering Furnace Designed to Deliver Consistent Heat Treatment and Controlled Atmosphere for Powder Metallurgy Products

Features 2:

Adopt internal circulation pure water cooling system, digital flow monitoring system;High performance medium frequency contactor is used for automatic conversion of furnace body.
Comprehensive PLC water, electricity, gas automatic control and protection system.
Sintering Furnace Designed to Deliver Consistent Heat Treatment and Controlled Atmosphere for Powder Metallurgy Products
Sintering Furnace Designed to Deliver Consistent Heat Treatment and Controlled Atmosphere for Powder Metallurgy Products
Sintering Furnace Designed to Deliver Consistent Heat Treatment and Controlled Atmosphere for Powder Metallurgy Products
Sintering Furnace Designed to Deliver Consistent Heat Treatment and Controlled Atmosphere for Powder Metallurgy Products
Sintering Furnace Designed to Deliver Consistent Heat Treatment and Controlled Atmosphere for Powder Metallurgy ProductsSintering Furnace Designed to Deliver Consistent Heat Treatment and Controlled Atmosphere for Powder Metallurgy Products
Sintering Furnace Designed to Deliver Consistent Heat Treatment and Controlled Atmosphere for Powder Metallurgy Products
Sintering Furnace Designed to Deliver Consistent Heat Treatment and Controlled Atmosphere for Powder Metallurgy Products
Sintering Furnace Designed to Deliver Consistent Heat Treatment and Controlled Atmosphere for Powder Metallurgy Products
