GCE Master BMS 204.8V 160A Battery Management System With 16S BMU For ESS Energy Storage Systems
GCE Master BMS 204.8V 160A Battery Management System With 16S BMU For ESS Energy Storage Systems
Specifications
Brand Name :
GCE
Model Number :
RBMS07S2-3-160A204.8V
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
Please contact: ellen@hngce.com
Payment Terms :
T/T,L/C
Supply Ability :
5000sets / Month
Delivery Time :
10-15 work days
Packaging Details :
Blister & Carton
Product Name :
high voltage BMS
Warranty :
3 years
Battery Type :
LFP / NMC / LTO
Charge and Discharge Current :
160Amp
Communication :
RS485 / CAN
Strings :
64S
Touch Screen :
7-inch
Application :
BESS, Solar Energy, UPS...
Description

GCE Master BMS 204.8V 160A Battery Management System With 16S BMU For ESS Energy Storage Systems

BMS Configuration

64S 204.8V 160A high voltage BMS(HV BMS) * 1set

16S BMU * 4sets

16S wire harness *13sets

(15S48V battery module,13 modules in series for 195S 624V 250A system)

Application

Battery Energy Storage System(BESS)
Off-grid energy storage
Data Center
Grid frequency modulation energy storage
Track power / traction
LFP UPS power supply

Specification

Product Name
64S 204.8V 160A high voltage BMS(HV BMS)
Model no.
RBMS-S27-160A204.8V
protecting method
MCCB+Contactor
Rated Current range160
 160
Voltage Range
120V-1000V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS

RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
4U (440*133*500)
Tap center
Not support
Net weight
22kg

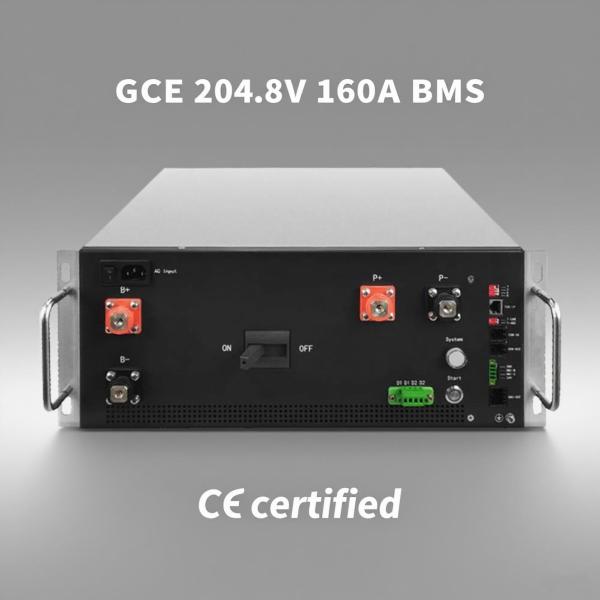

Products Display

GCE Master BMS 204.8V 160A Battery Management System With 16S BMU For ESS Energy Storage Systems

GCE Master BMS 204.8V 160A Battery Management System With 16S BMU For ESS Energy Storage Systems

GCE Master BMS 204.8V 160A Battery Management System With 16S BMU For ESS Energy Storage Systems

GCE BMS

GCE has over 10 years of experience in high voltage BMS R&D and manufacturing in China. The BMS voltage up to 1500V, mainly used for LFP, NMC, and LTO batteries in applications such as UPS, residential, commercial & industrial energy storage system.

GCE BMS supports multiple parallel connections and can be configured as a two-level or three-level architecture, making it suitable for a wide range of applications from KWh to MWh.
GCE BMS is compatible with well-known inverter brands in the market, such as Deye, Kehua, Sofar, Growatt, Sinexcel, ATESS, Sungrow Goodwe, Megarevo, Voltronic power and more.

FAQ

Q. What is your MOQ?
A: 1pcs.


Q. How long is the lead time?
A: If in stock,ship within 2-3 work days.If out of stock, 12-20 days depending on requirement and quantity.


Q. How is your warranty?
A: 3 years.


Q. What is the difference between smart BMS and non-smart BMS?
A: Smart BMS can be connected PC, RS485, CAN. You can see battery information real time.


Q. What specification of BMS do you have ?
A: 96V-1000V 50A~500A for LFP,NCM.LTO Batteries.

Integrated BMS: 96V-240V 50A / 100A

2U BMS: 192V-500V, 50A / 100A

3U BMS:192V-600V, 125A / 160A

4U BMS: 192V-1000V, 250A

5U BMS: 192V-1000V, 400A /500A
