Specifications
Brand Name :
Gce Hv BMS
Model Number :
RBMS-ESS-250A-1000
Certification :
GB/T 16935.1 GB/T 17626.2 GB/T 17626.5 CE
Place of Origin :
China
MOQ :
1 Sets
Price :
Pls negotiate with toby@hngce.com
Payment Terms :
T/T
Supply Ability :
1000 Sets In One Month
Delivery Time :
15 days after receive the payment
Packaging Details :
670*560*240mm Cartons
Data Storage :
5000 records
Power Consumption :
≤15W
Safety Certification :
CE/ROHS
Voltage Range :
200V-1000V
Master Bms Height :
4U
Rated Current Range :
250A
Insulation Detection :
for minimum 300V systems
Model No :
RBMS-ESS-250A-819.2V
Nominal Voltage :
819.2V
Flexibility :
Flexible Solution
Storage Temperature :
-20-60°C
Cell Current Accuracy :
0.5% FSR
Description

1.Product Features

* Advanced battery management system -- highly integrated battery management system can realize seamless monitoring; Perfect and reliable system control and protection strategies to fully ensure the safety of the battery and escort the extension of the service life of the battery pack.

* Higher power density - RBMS height 4U (180mm), depth 500mm, standard 19 inch cabinet installation, small size to achieve maximum output power of 250KW

* A safer hardware architecture -- utilizing a circuit breaker + fuse + contactor electrical scheme for all-around ,Overload and short circuit comprehensive protection during the battery life cycle

* Modular design, configurable and expandable -- multiple energy storage units can be flexibly combined and expanded into a larger energy storage system,it Supports up to 256 (400 for lead-carbon batteries) batteries in series.

* Rich communication interfaces -- RS485, CAN, Ethernet, dry contact input and output interfaces, supporting communication with most PCS/Inverter and monitoring servers on the market.the factory comes with the company's communication protocol, and PCS/Inverter of different manufacturers can also be adapted according to customer needs.

* High-precision current detection -- utilizing a high-precision shunt resistor current detection scheme, offering higher current sampling accuracy and more accurate SOC and energy calculations.

* Automatic circulation control and automatic parallel / offline control can easily realize the parallel connection of cabinets

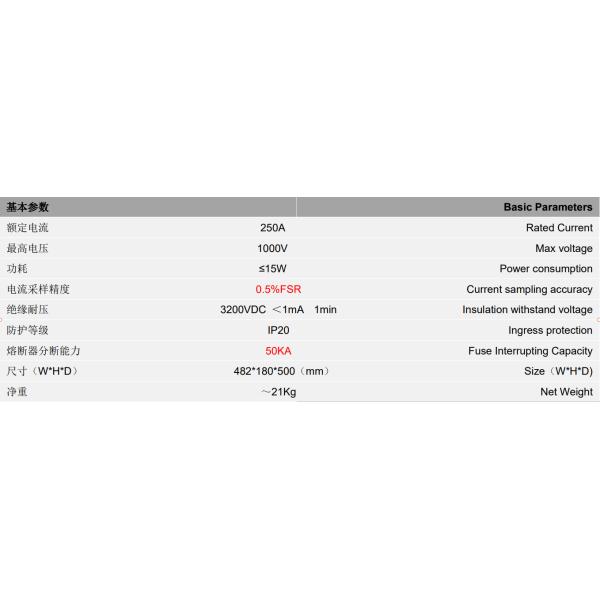

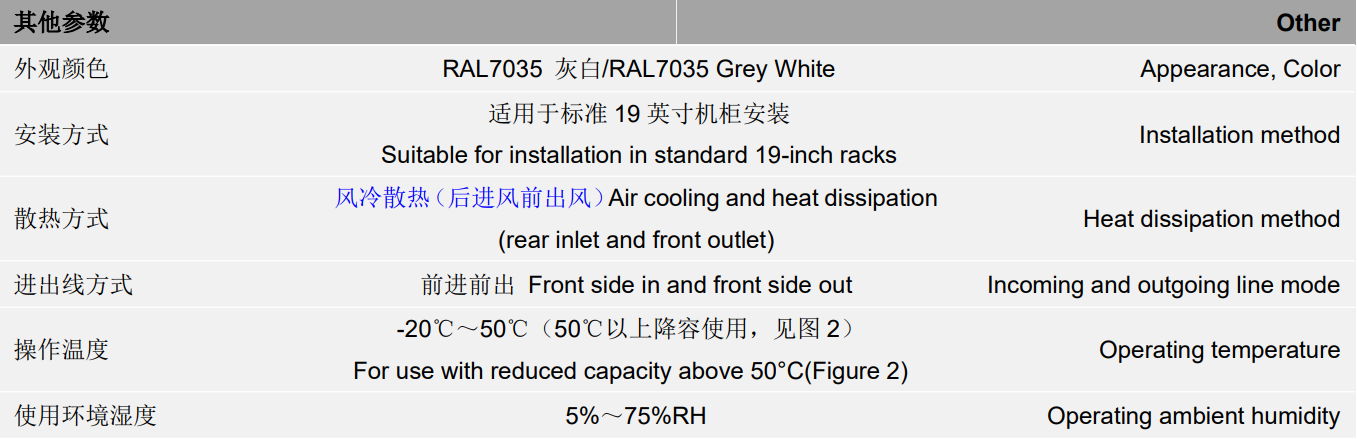

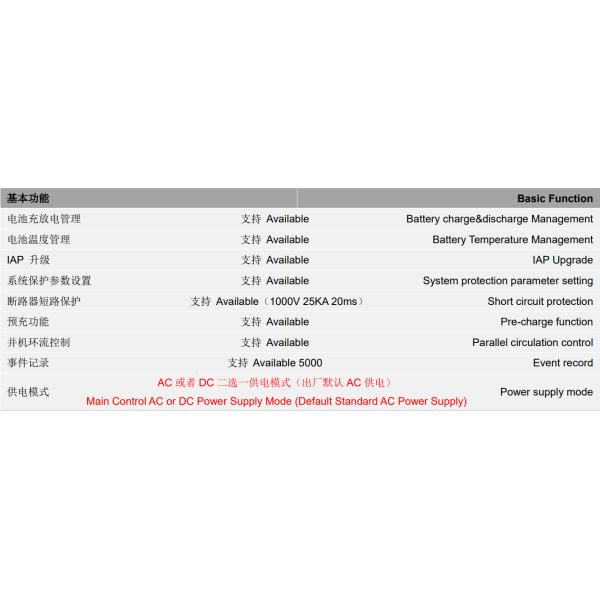

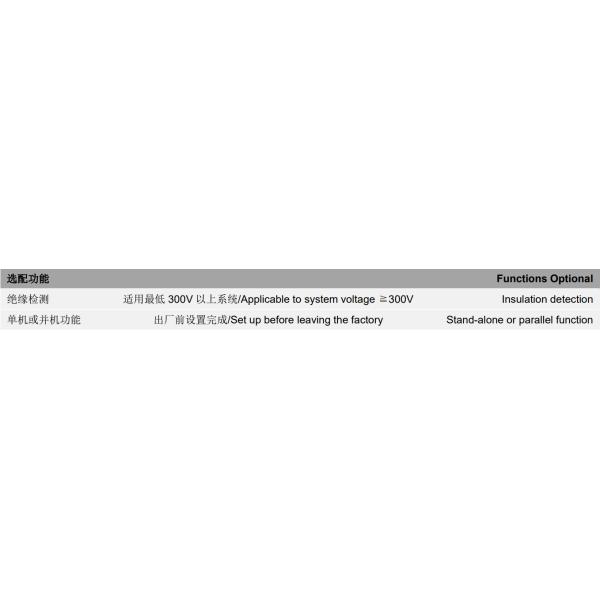

2. BMS Main technical parameters

GCE 256S 819.2V 250A High Voltage 4U RBMS Current Sampling Accuracy 0.5% FSRGCE 256S 819.2V 250A High Voltage 4U RBMS Current Sampling Accuracy 0.5% FSRGCE 256S 819.2V 250A High Voltage 4U RBMS Current Sampling Accuracy 0.5% FSRGCE 256S 819.2V 250A High Voltage 4U RBMS Current Sampling Accuracy 0.5% FSRGCE 256S 819.2V 250A High Voltage 4U RBMS Current Sampling Accuracy 0.5% FSR

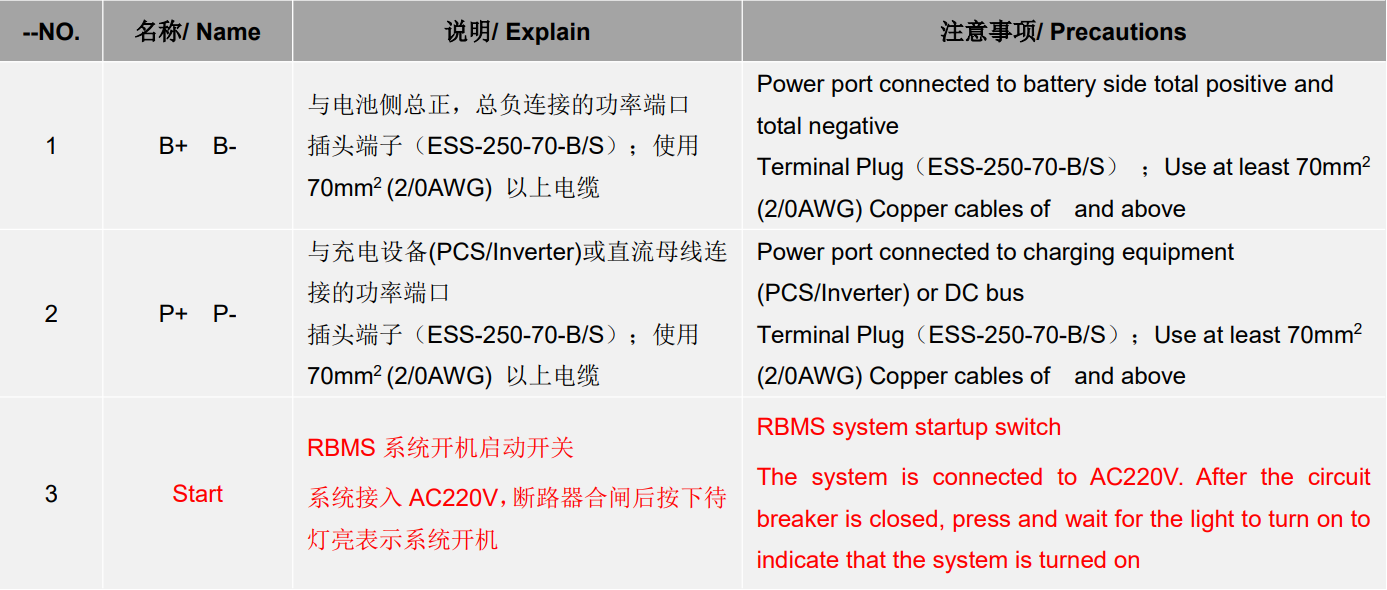

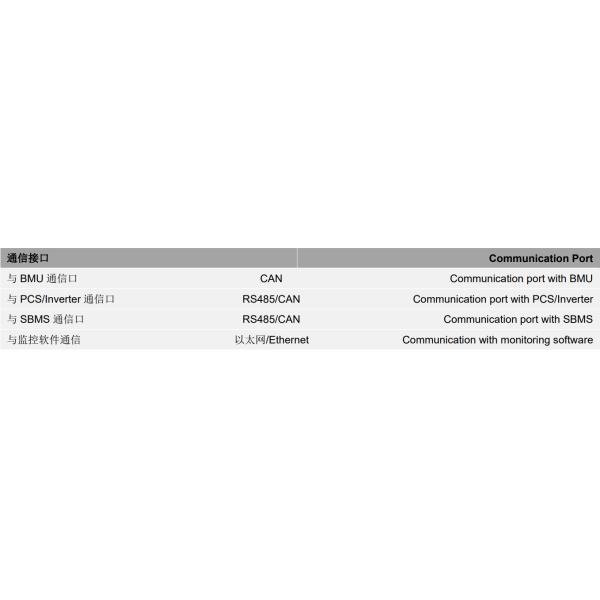

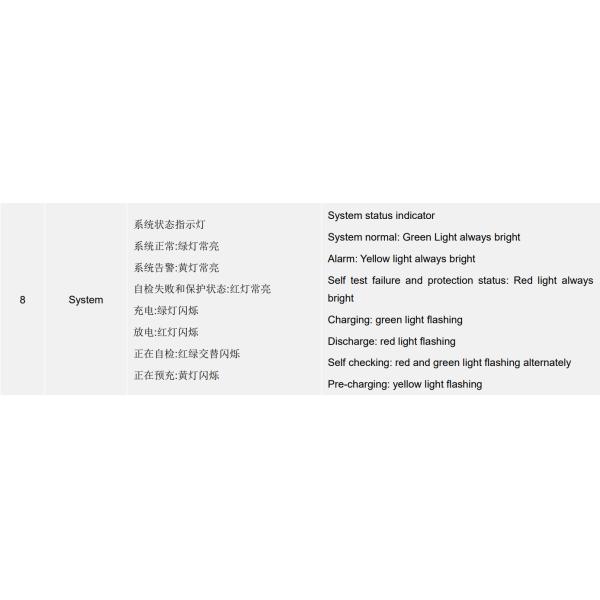

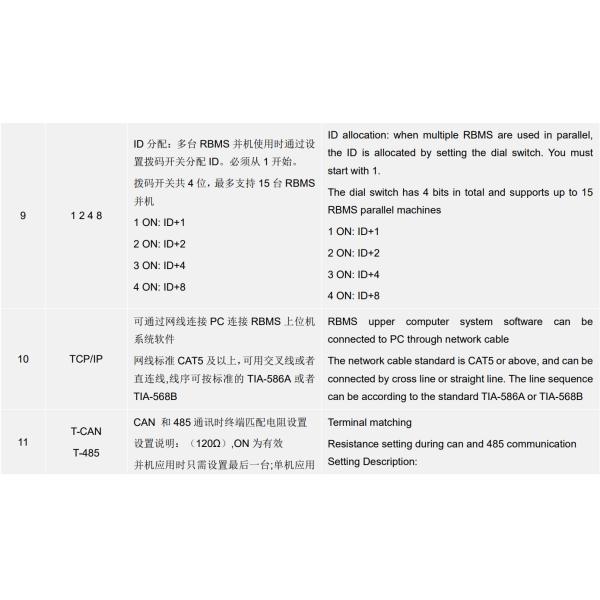

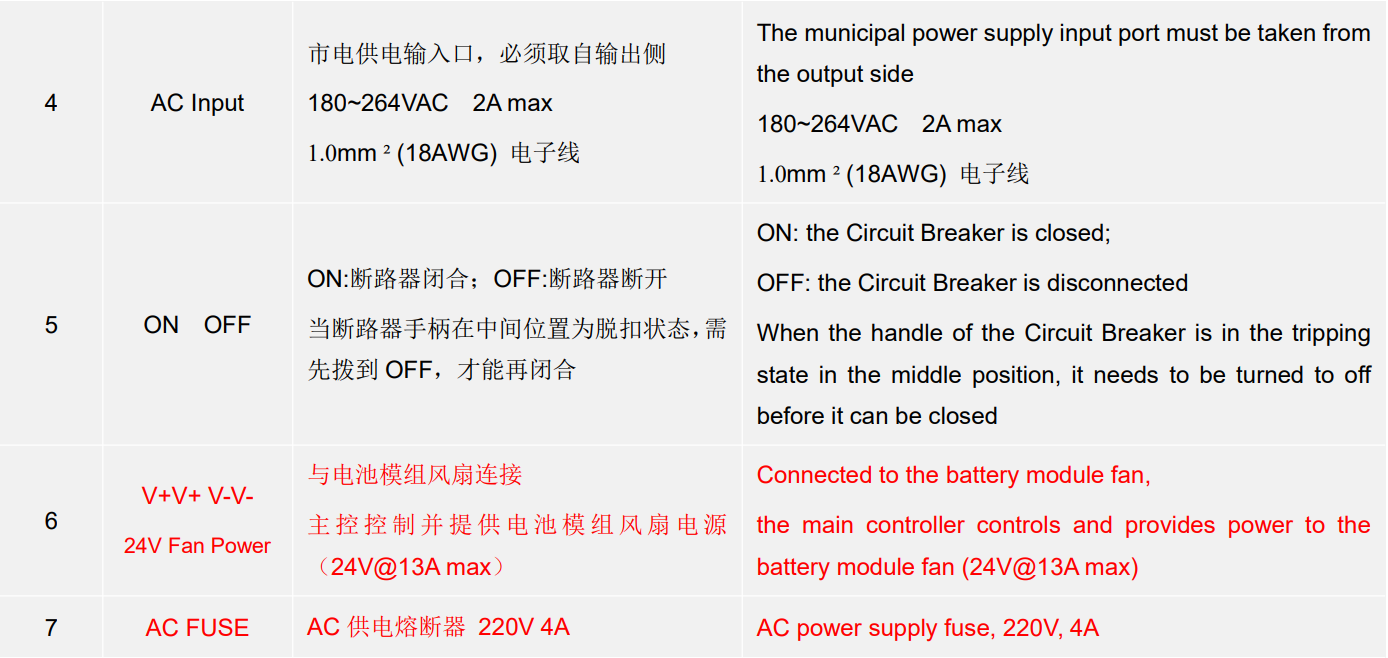

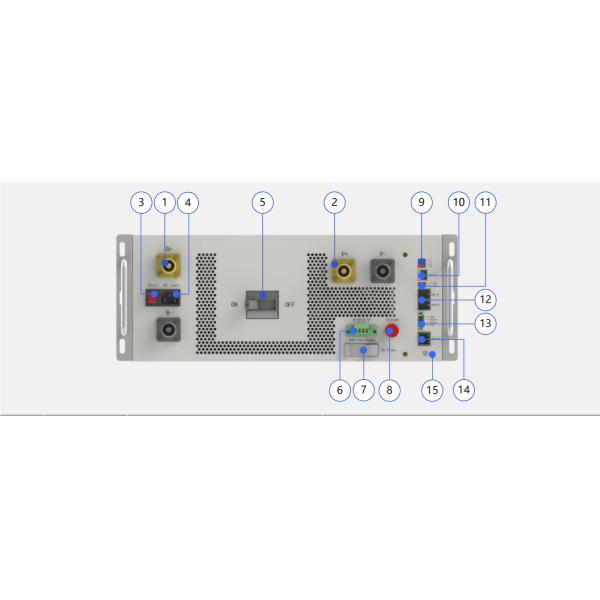

3. Interface description

GCE 256S 819.2V 250A High Voltage 4U RBMS Current Sampling Accuracy 0.5% FSRGCE 256S 819.2V 250A High Voltage 4U RBMS Current Sampling Accuracy 0.5% FSRGCE 256S 819.2V 250A High Voltage 4U RBMS Current Sampling Accuracy 0.5% FSRGCE 256S 819.2V 250A High Voltage 4U RBMS Current Sampling Accuracy 0.5% FSRGCE 256S 819.2V 250A High Voltage 4U RBMS Current Sampling Accuracy 0.5% FSR
