Specifications
Brand Name :
Gce Hv BMS
Model Number :
RBMS-S20-500A-1296V
Certification :
GB/T 16935.1 GB/T 17626.2 GB/T 17626.5 CE
Place of Origin :
China
MOQ :
1 Sets
Price :
Negotiable with toby@hngce.com
Payment Terms :
T/T
Supply Ability :
2000 sets in one month
Delivery Time :
15 days after receive the payment
Packaging Details :
685*560*200mm Cartons
Hmi Display :
7&4.3 Inch External Display
Communication Type :
CAN RS485
Modules :
45S*9
Safety Certification :
CE/ROHS
Dimension :
487*220*500mm
Solution :
overall solution
Current Collection :
Hall sensor
Communication Interface :
CAN/RS485/TCP IP
Features :
DC&AC dual power supply
Grid Connection :
Off grid, Hybrid grid
Humidity :
5%~75%RH
Description
1.Application
PV power plant storage
Island off-grid energy storage
Industrial and commercial energy storage
Micro-grid applications
Energy storage on the grid side of the power system
2.Topology of three-level architecture
GCE HV Customized BMS 1296V 30~405S 400A 500A 5U Management System With Master-Slave Lithium Battery High Voltage BMS
3.Product Features
Advanced battery management system -- highly integrated battery management system can realize seamless monitoring；Perfect and reliable system control and protection strategies to fully ensure the safety of the battery and escort the extension of the service life of the battery pack.
Higher power density - RBMS height 5U (220mm), depth 500mm, standard 19 inch cabinet installation, small size to achieve maximum output power of 750KW.
Modular design, configurable and expandable -- multiple energy storage units can be flexibly combined and expanded into a larger energy storage system,It supports up to 15 clusters of battery cabinets in parallel.
Rich communication interfaces -- RS485, CAN, Ethernet, dry contact input and output interfaces, supporting communication with most PCS/Inverter and monitoring servers on the market.
Flexible communication interface protocol -- the factory comes with the company's communication protocol, and PCS/Inverter of different manufacturers can also be adapted according to customer needs.
High-precision current detection -- utilizing a shunt resistor current detection scheme, offering higher current sampling accuracy and more accurate SOC and energy calculations.

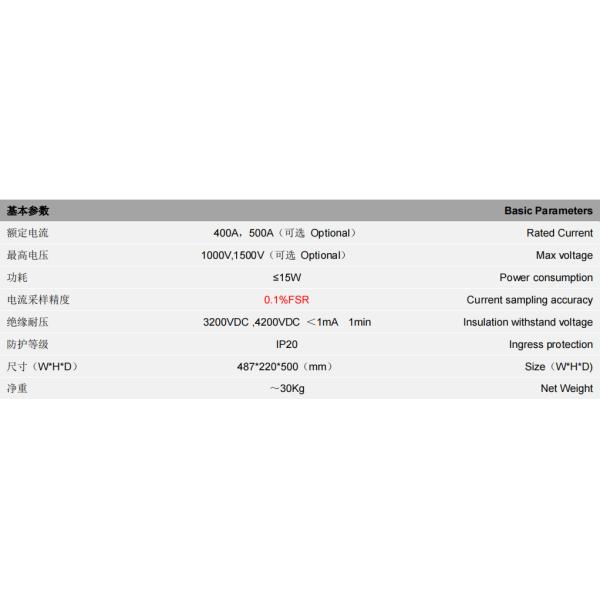

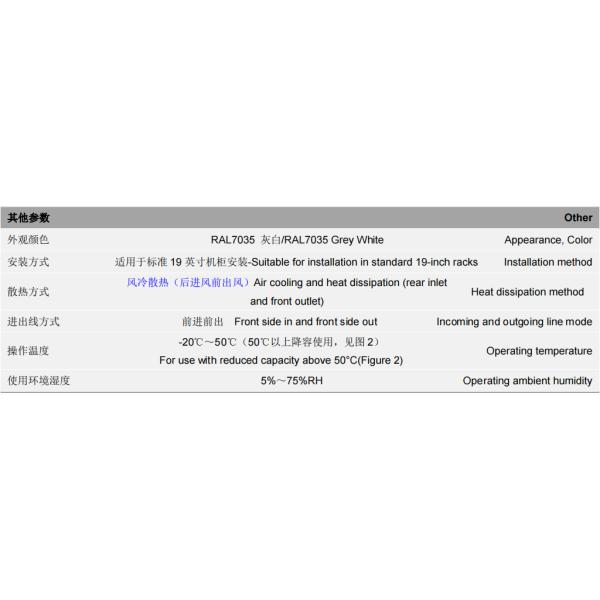

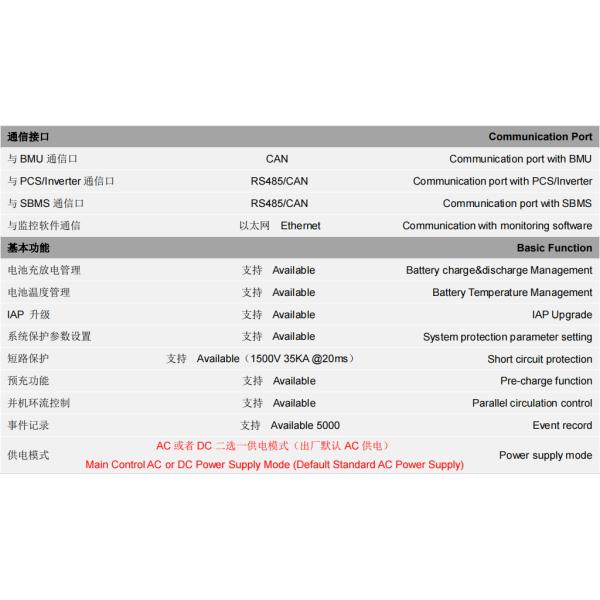

4.BMS Main technical parameters

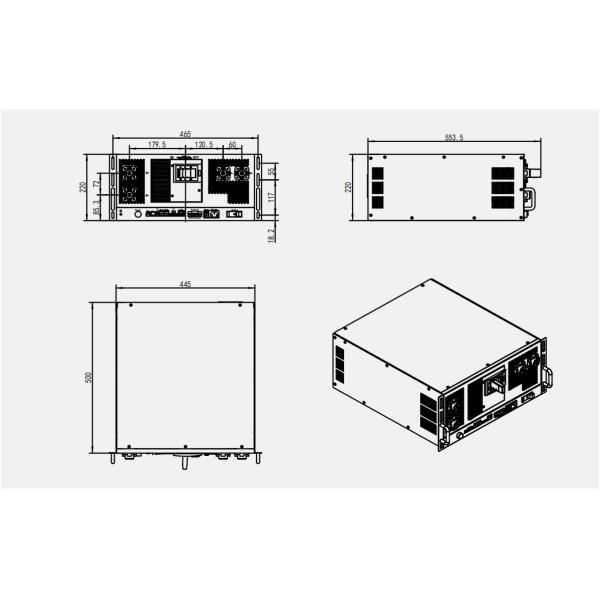

GCE HV Customized BMS 1296V 30~405S 400A 500A 5U Management System With Master-Slave Lithium Battery High Voltage BMSGCE HV Customized BMS 1296V 30~405S 400A 500A 5U Management System With Master-Slave Lithium Battery High Voltage BMSGCE HV Customized BMS 1296V 30~405S 400A 500A 5U Management System With Master-Slave Lithium Battery High Voltage BMS5. RBMS Dimension
GCE HV Customized BMS 1296V 30~405S 400A 500A 5U Management System With Master-Slave Lithium Battery High Voltage BMS
