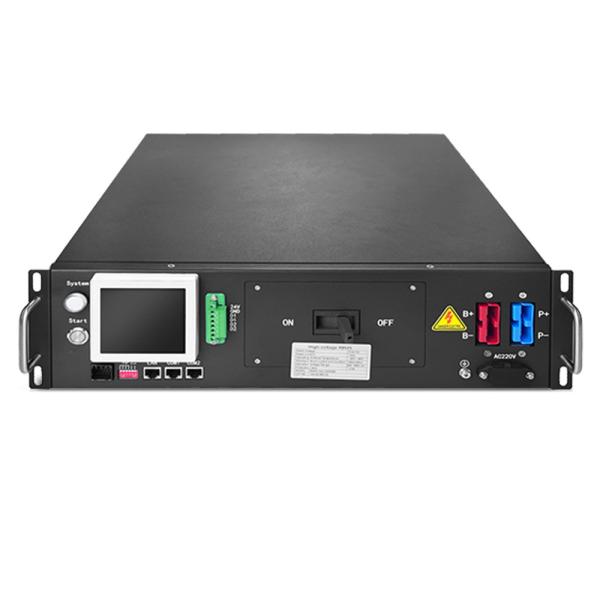

High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application
High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application
High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application
High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application
High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application
High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application
High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application
High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application
High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application
High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application
High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application
High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application
Specifications
Brand Name :
GCE
Model Number :
RBMS-S23-125A-409.6
Certification :
CE
Place of Origin :
China
MOQ :
2 Sets
Price :
Pls contact with toby@hngce.com
Payment Terms :
T/T
Supply Ability :
2000sets in month
Delivery Time :
Lead time: two weeks when our bank receive your advance payment
Packaging Details :
Cartons
Description

High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application

High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application

High Voltage 3U BMS 128S 409.6V 125A For PV power plant storage/ Island off-grid energy storage/UPS power supply Application

BMS MAIN TECHNICAL PARAMETERS:
Basic parameters:
Rated Current:125A
Max Current:150A
Max voltage:350V.600V(Optional)
Power consumption:≤15W
Current sampling accuracy:1%FSR
Insulation withstand voltage:2800VDC ＜1mA 1min
Protection level:IP20

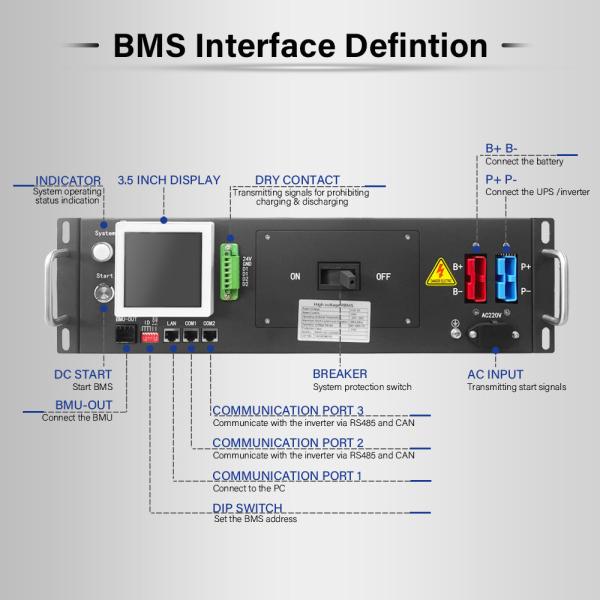

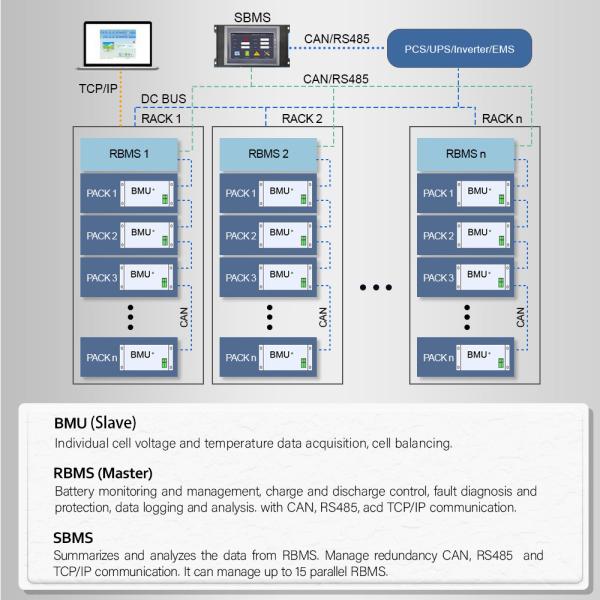

Communication Port:
Communication port with BMU:CAN
Communication port with UPS:RS485/CAN
Communication port with SBMS:RS485/CAN
Communication with monitoring software:Ethernet
