GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
Specifications
Place of Origin :
Hunan, China
Brand Name :
GCE
Model Number :
RBMS07S20-250A336V
MOQ :
2
Battery Type :
LFP NMC LTO

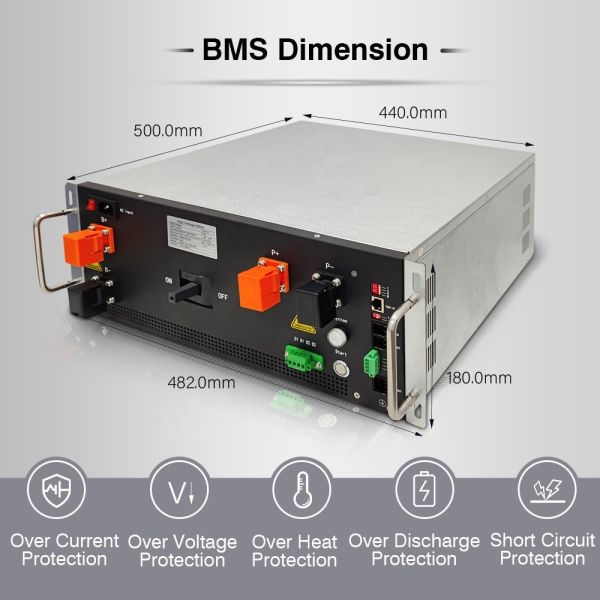

Dimension :
482*180*500mm
Weight :
21kg
Communication Interface :
Ethernet
Communication Port :
CAN,RS485,Dry Contact
Cooling Method :
Air Cooling
System Voltage :
336V
Current Range :
-250~250A
Power Consumption :
≤15W
Current Accuracy :
1%FSR
Insulation Voltage :
2800VDC
Protection Level :
IP20
Operating Temperature :
-20℃~60℃
Operating Humidity :
5%~75%RH
Short Circuit Protection :
6KA 20ms
Description


Leading BMS Manufacturer For Lithium Battery Packs

GCE has over 10 years of experience in high voltage BMS R&D and manufacturing in China. The BMS voltage up to 1500V, mainly used for LFP, NMC, and LTO batteries in applications such as UPS, residential, commercial & industrial energy storage system. GCE BMS supports multiple parallel connections and can be configured as a two-level or three-level architecture, making it suitable for a wide range of applications from KWh to MWh. GCE BMS is compatible with well-known inverter brands in the market, such as Deye, Kehua, Sofar, Growatt, Sinexcel, ATESS, Sungrow Goodwe, Megarevo, Voltronic power and more.
BMS Introduction
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
SPECIFICATION
Basic Parameters
Max current
125A / 160A / 250A（Optional）
Rated voltage
350V / 700V / 1000V（Optional）
Power consumption
≤15W
Current sampling accuracy
1%FSR
Insulation withstand voltage
2800VDC ＜1mA 1min
Protection level
IP20
Dimension（W*H*D）
482 * 180 * 500（mm）
Net weight
~22Kg
Communication Port
Communication port with BMU
CAN
Communication port with UPS
RS485/CAN
Communication port with SBMS
RS485/CAN
Communicate with PC software
Ethernet
Basic Functions
Battery charge and discharge management
Support
Battery temperature management
Support
IAP upgrade
Support
System protection parameter setting
Support
Short circuit Protection
Support（6KA 20ms）
Precharge function
Support
Parallel loop current control
Support
Event record
Support 5000 records
Middle line system
Support（Optional）
Dual power supply
Support
Optional Functions
Monitor Insulation
Optional
HMI display
3.5", 7" display(optional)(external)
Standalone or Parallel
Set-up completed before leaving the factory
Dry contact
2 dry contact outputs (optional)
Others
Color
RAL9005 black sand grain
Operating ambient temperature
-20℃~60℃
Operating ambient humidity
5%~75%RH
Compliance with national standards
GB/T 16935.1 GB/T 17626.2 GB/T 17626.5
Certification
CE
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
Hunan GCE Technology Co., Ltd.(GCE) is a high-tech company specializing in the R&D and production of BMS energy storage systems and batteries for over 10 years. Our products are mainly used for industrial and commercial energy storage and home energy storage.
BMS 30-75S uses an integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Significantly reduce user usage costs.
The 60s-405S adopts a three-tier architecture that can meet the series and parallel requirements of single high-capacity lithium batteries within 1500V.
7.68KWh-40.96KWh Stackable Home Energy Storage System supports 3-8 HV battery modules connected in Sereis, with Small volume, light weight, plug-in built-in modules, built-in Smart BMS, easy to install and maintain.
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
Buyer Reviews
GCE 105S 336V 250A High Voltage BMS with Relay Contactor for Lifepo4 Battery Energy Storage
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer with over 10 years of R&D experience in production. and we sincerely welcome you to visit our factory.

Q: Can I get some samples?
A: Yes, a sample order is available for quality checking and market testing.

Q: What kind of cells are applicable to this Battery Management System?
A: LFP, NMC, LTO etc.

Q: How about the delivery time?
A: The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.

Q: What are your terms of payment?
A: Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us for the details.

Q: What are your warranty terms?
A: 3 years for RBMS and 1 year for BMU/PCBs

Q: Can you produce BMS with customization requirements?
A: Yes, OEM & ODM service is acceptable.

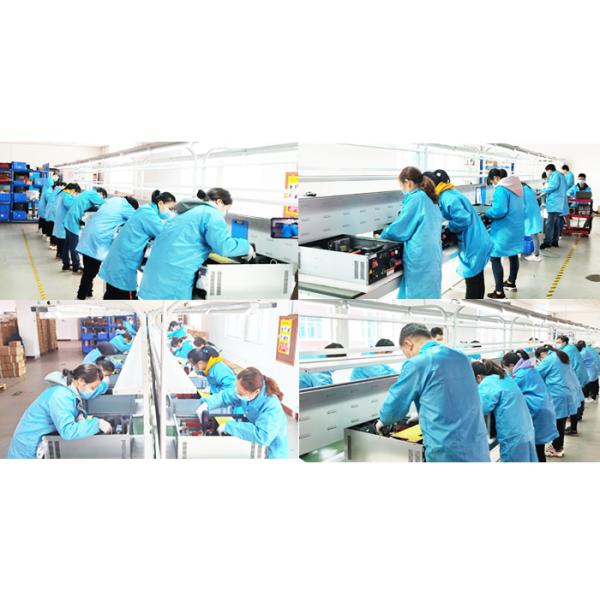

Q: How does your factory do regarding quality control?
A: Quality always comes first. All our products go through strict quality control processes from incoming material to the
assembling process. Each product will be tested before packing & shipping.

Q: What is the voltage range supported by GCE High Voltage BMS?
A: GCE High Voltage BMS supports a voltage range from 96V to 864V.

Q: What is the current capacity range available for GCE High Voltage BMS?
A: GCE High Voltage BMS offers current options of 50A, 125A, 160A, 250A, 400A, and 500A to accommodate various system requirements.

Q: Which inverters are compatible with GCE BMS?
A: GCE BMS supports CAN & RS485 protocols and it is compatible with the protocol of most well-known inverter brands in the market, such as DEYE, Growatt, Goodwe, Sofar, Sungrow, Kehua, ATESS, Megarevo, Sinexcel, Pylontech, Solis Sermatec......

Packaging and Shipping
Shipping Methods
Arrive AT
Delivery From
By Sea
Sea port you want
Any port in China
By Air
Airport you want
Any port of China
By Railway
Your door
Any railway station
By Express
Your door
Changsha City
Packing list: 4U BMS, voltage & temperature acquisition wire, fan wire and communication cable.
