30S-75S All-in-One High Voltage Integrated Lithium BMS | Battery Management Solution | HV BMS for Solar ESS Energy Storage
30S-75S All-in-One High Voltage Integrated Lithium BMS | Battery Management Solution | HV BMS for Solar ESS Energy Storage
Specifications
Voltage :
max 240V
Model Number :
RBMS-11-S80S-60A-4
Function :
Battery charge&discharge&Temperature Management
Supply Ability :
100000 per month
Warranty :
3 Years
Payment Terms :
L/C, T/T
Delivery Time :
15-20 working days
Battery type :
LFP NCM LTO
Certification :
CE LVD EMC
Current :
50A/100A
MOQ :
5
Packaging Details :
Paper box
Communication :
RS485/CAN
Place of Origin :
China
Product name :
Integrated Battery Management Systems
Brand Name :
GCE
Description
30S-75S All-in-One High Voltage Integrated Lithium BMS
Complete Battery Management Solution for Solar ESS Energy Storage

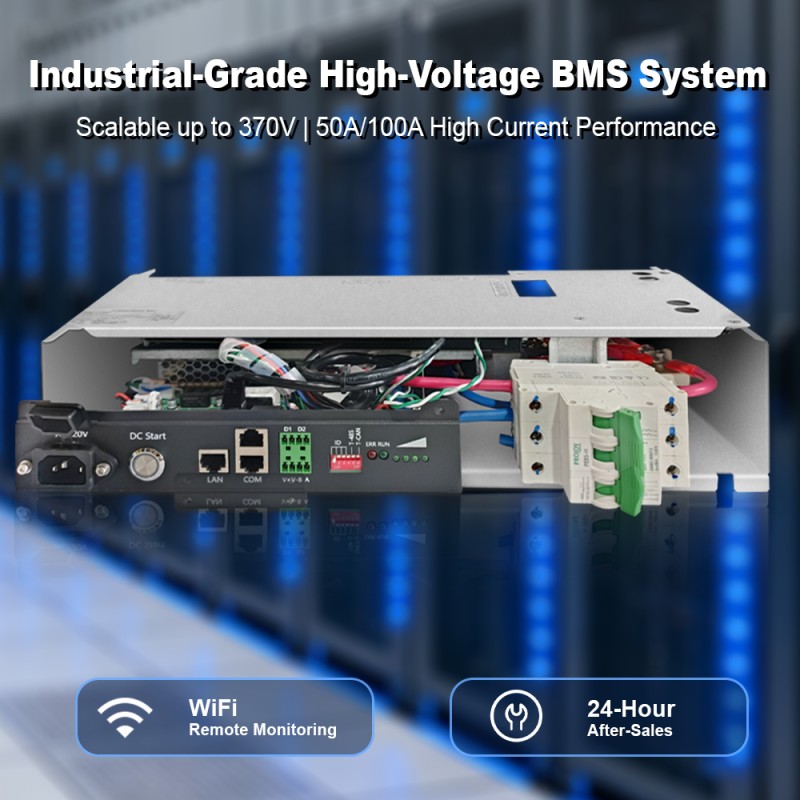

The GCE 30S‑75S All‑in‑One High‑Voltage BMS is a next‑generation integrated battery management solution engineered by GCE TECHNOLOGY. It unifies voltage sampling, thermal sensing, current/voltage protection, interactive communication, and system control within a single compact chassis. Supporting 30‑cell to 75‑cell LFP strings, this unit is tailored for commercial & industrial storage, solar hybrid/off‑grid installations, and mission‑critical backup systems. Built to industrial standards, it delivers robust protection and uninterrupted performance, making it the go‑to control hub for medium‑ to high‑voltage battery stacks.
30S-75S All-in-One High Voltage Integrated Lithium BMS | Battery Management Solution | HV BMS for Solar ESS Energy Storage 30S-75S All-in-One High Voltage Integrated Lithium BMS | Battery Management Solution | HV BMS for Solar ESS Energy Storage
Core Advantages
  • Space‑Saving Unified Enclosure - Merges all monitoring and protection circuitry into one streamlined module, slashing wiring complexity and installation footprint. The standard 19‑inch rack form factor slides directly into common storage cabinets, enabling tool‑free deployment and swift field replacement.
  • Flexible String Configuration (30S-75S) - Accommodates battery packs from 30 to 75 series cells, covering a broad voltage spectrum without requiring model changes. This versatility simplifies inventory management and adapts to diverse capacity requirements across projects.
  • Multi‑Layer Fault Tolerance - Incorporates redundant safeguards against over‑voltage, under‑voltage, excess current, thermal runaway, freezing conditions, and short circuits. Continuous per‑cell voltage and pack temperature scanning preempts cell degradation and mitigates fire/explosion hazards.
  • Reliable Fieldbus Connectivity - Equipped with dual CAN and RS485 ports for seamless integration with leading inverters and energy management platforms. Real‑time telemetry and remote commands travel without latency, ensuring synchronized system responses.
  • Ruggedized for Harsh Environments - Engineered with wide‑temperature components, noise‑immune circuitry, and vibration‑resistant mechanicals. Sustained 24/7 operation is guaranteed in industrial plants, outdoor solar farms, and other demanding settings.
  • Live Data Insight - Continuously reports individual cell voltages, total bus voltage, load current, and temperature gradients via an intuitive interface. Built‑in logging and event‑driven alarms facilitate rapid diagnosis and preventive maintenance.
30S-75S All-in-One High Voltage Integrated Lithium BMS | Battery Management Solution | HV BMS for Solar ESS Energy Storage
Technical Specifications
Parameter Specification
Model GCE 30S‑75S Integrated BMS
Series Support 30S ~ 75S (LFP / NMC / LTO compatible)
Voltage Range Matches 30S-75S LFP battery banks
Current Rating Configurable (standard options available)
Communication CAN + RS485
Protective Functions OV, UV, OC, OT, LT, SC
Monitoring Capabilities Per‑cell voltage, total voltage, current, temperature
Mounting Standard rack‑mount
Operating Temperature -20°C to +60°C
Storage Temperature -30°C to +70°C
Dimensions Standard cabinet size (customized on request)
Approvals CE, RoHS (additional certs upon request)
30S-75S All-in-One High Voltage Integrated Lithium BMS | Battery Management Solution | HV BMS for Solar ESS Energy Storage 30S-75S All-in-One High Voltage Integrated Lithium BMS | Battery Management Solution | HV BMS for Solar ESS Energy Storage

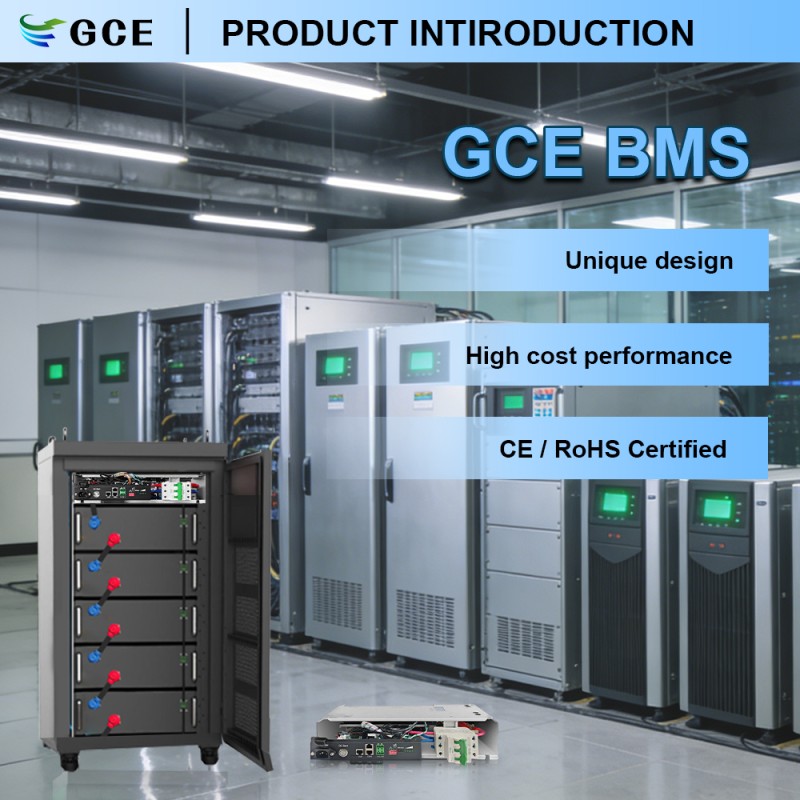

Visuals: front panel, side profile, mounting guide, interface layout, internal assembly, specification label, and cabinet‑integrated view.
Primary Applications
  • C&I battery storage systems
  • On‑grid / off‑grid solar storage enclosures
  • UPS and emergency backup power
  • Medium‑voltage containerized storage
  • Residential / light‑commercial PV storage
  • Telecom base‑station standby power
Support & Customization
We offer end‑to‑end engineering assistance, tailored firmware/hardware adjustments, and pre‑sales consulting to ensure seamless BMS integration. From initial configuration to on‑site commissioning, our team partners with you to maximize system uptime and ROI.
30S-75S All-in-One High Voltage Integrated Lithium BMS | Battery Management Solution | HV BMS for Solar ESS Energy Storage 30S-75S All-in-One High Voltage Integrated Lithium BMS | Battery Management Solution | HV BMS for Solar ESS Energy Storage
