BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
Specifications
Supply Ability :
100000pcs per month
Communication: :
CAN, RS485,LAN
Application: :
Solar, Wind, UPS, EV Car,Home Appliances,Boats,Energy Storage System
Certification :
UL/CE
Place of Origin :
China
Price :
Prices vary depending on the specifications; please refer to the project quotation for details.
Packaging Details :
Paper box
Payment Terms :
L/C, T/T
Current: :
125A
MOQ :
2
Delivery Time :
15-30working days
Color: :
balck
Votage: :
350V-750V
Brand Name :
GCE Energy
Description
BMS High Voltage 3U RBMS 100A Battery Management System
Professional rack-mounted Battery Management System designed for C&I Energy Storage applications including peak shaving, load shifting, and BESS integration.
BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
Product Overview
GCE 3U High Voltage BMS for Solar Energy Storage Systems. Professional rack-mounted Battery Management System designed for LiFePO₄ battery energy storage systems. Engineered for high reliability and intelligent battery protection, providing comprehensive monitoring, charge/discharge management, communication, and safety protection for commercial and industrial ESS applications.
BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
Key Features
High Voltage Battery Management
Designed specifically for high-voltage lithium battery systems, providing reliable protection throughout the battery lifecycle.
Wide Voltage Platform
  • Standard Voltage: 350V
  • Optional Voltage: 750V
High Current Capability
  • Rated Current: 100A
  • Maximum Current: 125A
Intelligent Battery Protection
Real-time monitoring of critical parameters to maximize battery safety and lifespan:
  • Cell Voltage
  • Pack Voltage
  • Charge & Discharge Current
  • Battery Temperature
  • State of Charge (SOC) Estimation
  • System Status
Flexible Communication
Supports multiple communication protocols for seamless integration:
  • CAN
  • RS485
  • Ethernet
Additional Features
  • Easy Firmware Upgrade via IAP Online Upgrade
  • Modular Master-Slave Architecture
  • OEM & ODM Customization Available

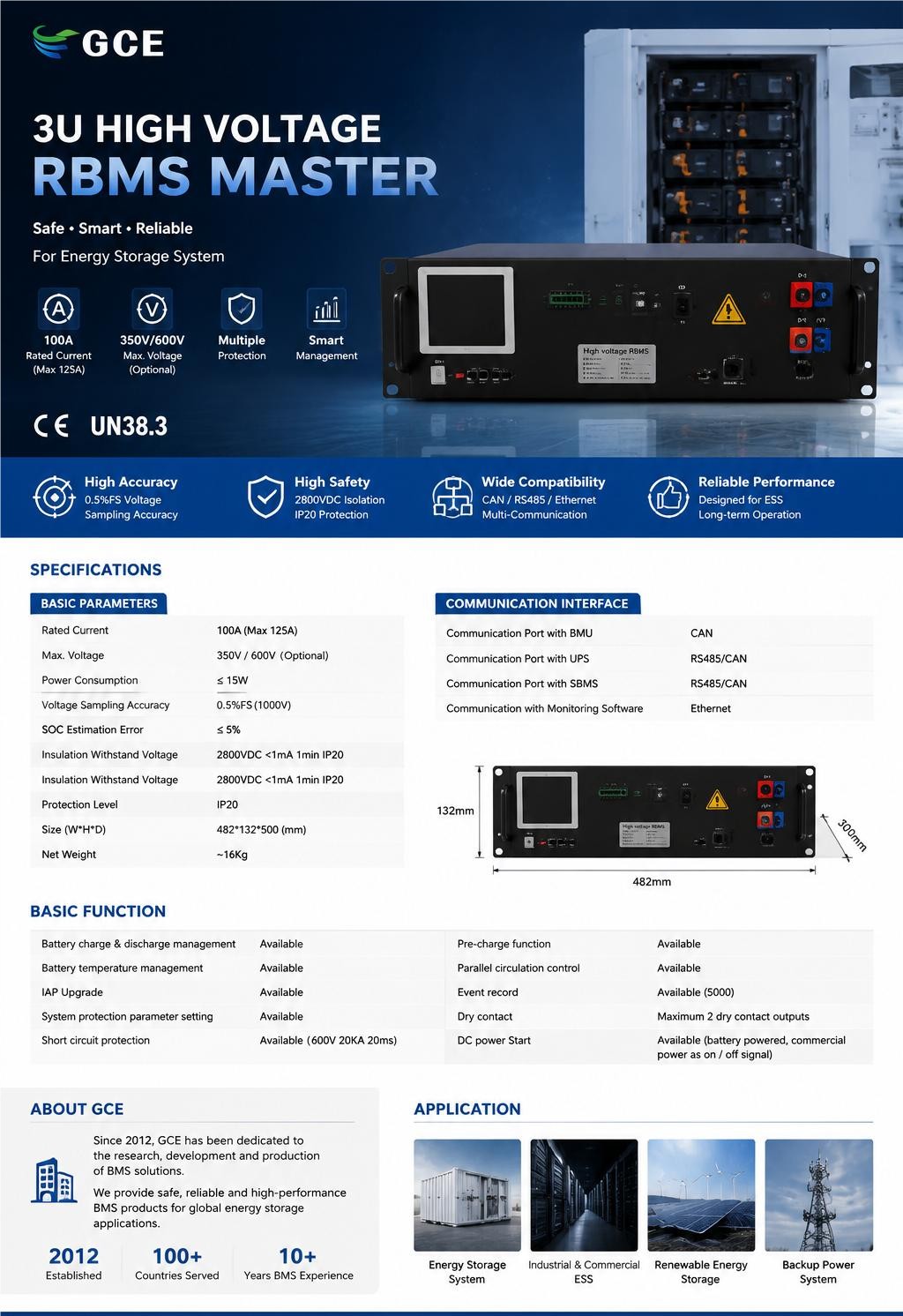

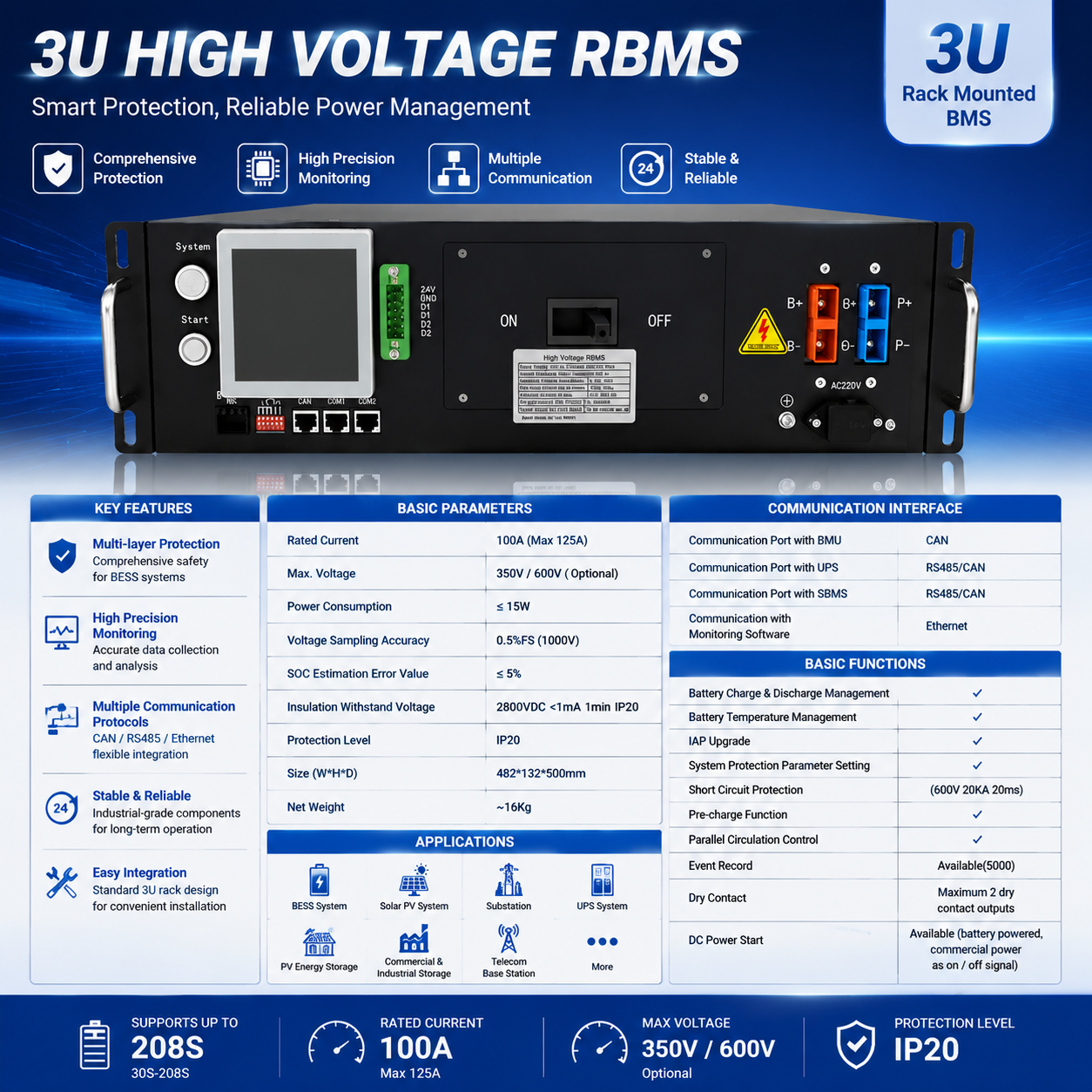

Technical Specifications
Specification Details
Voltage Range 30S-256S (120V-750V)
Standard Voltage 350V
Optional Voltage 750V
Rated Current 100A
Maximum Current 125A
Battery Chemistry LiFePO₄
Communication Protocols CAN, RS485, Ethernet
Form Factor 3U Rack-Mount

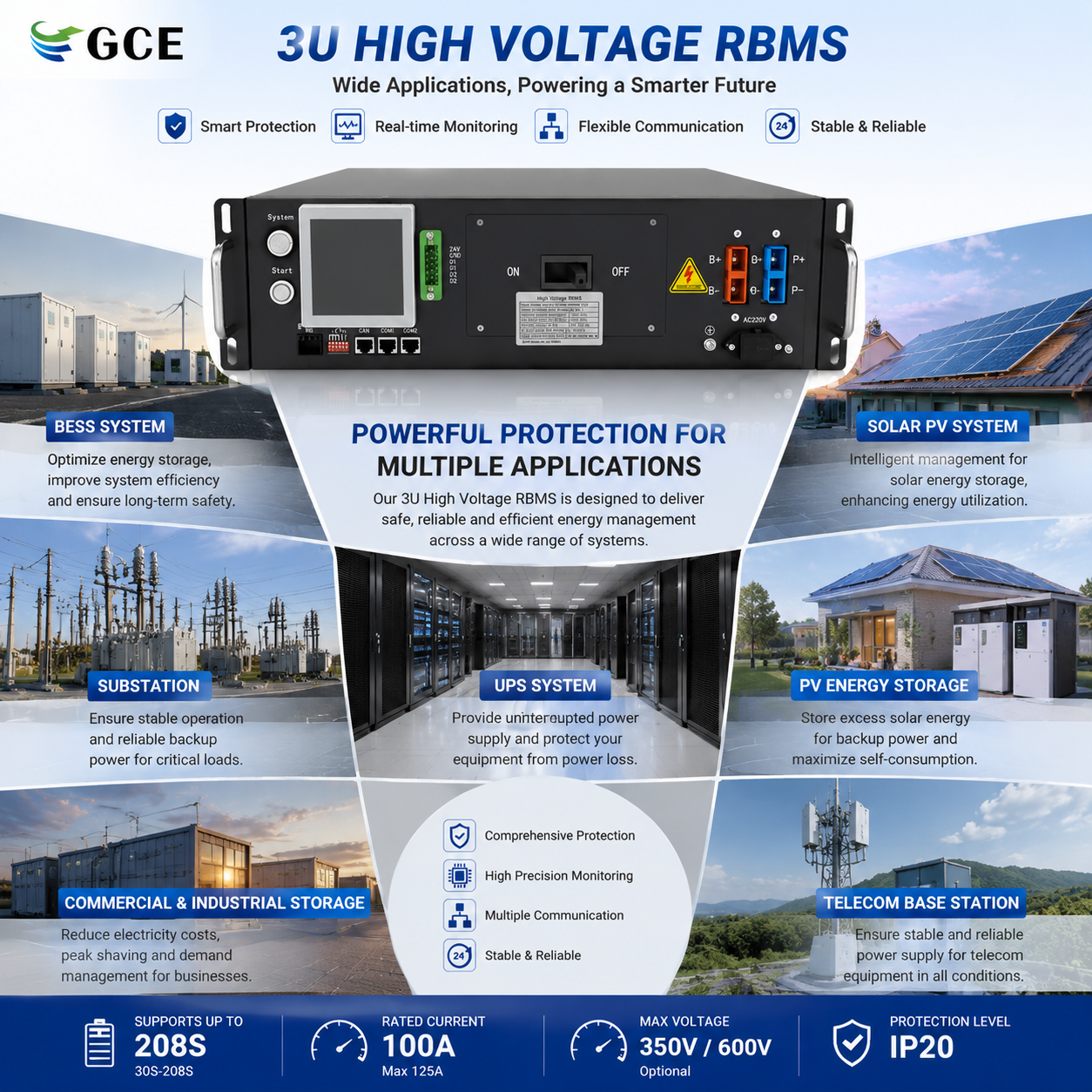

Applications
Battery Energy Storage System (BESS) Commercial & Industrial ESS UPS Backup Power Solar Energy Storage PV + Battery Storage Telecom Energy Storage Data Center Backup Industrial DC Power Supply Lithium Battery Pack Renewable Energy Storage

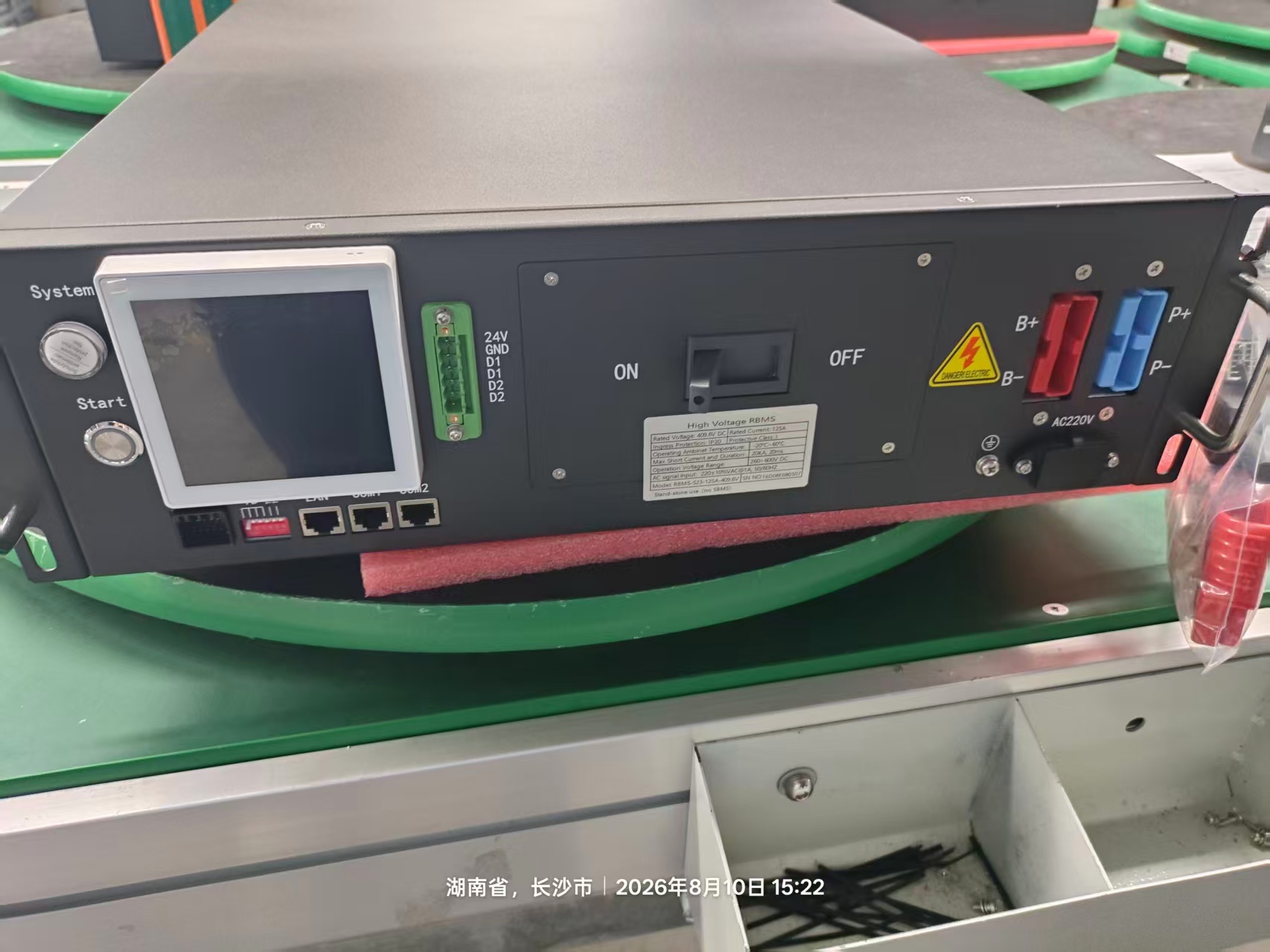

Product Images
BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
Company Certificate
BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
Product Packaging
BMS High Voltage 3U RBMS 100A Battery Management System for C&I Energy Storage Peak Shaving Load Shifting BESS
