Specifications
MOQ :
5 units
Packaging Details :
Cardboard box foam packaging
Rated current :
50A
Certification :
CE/RoHS/UN38.3/MSDS
Payment Terms :
L/C, T/T
Warranty :
3 years
Model Number :
RBMS10-S60S-50A
Balancing type :
passive balance
Supply Ability :
1000 units per month
Communication :
RS485/CAN/LAN
Weight :
3kg
Rated Voltage range :
96-240V
Place of Origin :
china
Delivery Time :
25 workdays
Suitable Battery type :
LFP,NMC,LTO
Brand Name :
GCE
Monitoring and Management :
Host computer software/HMI
Product name :
Battery Management System BMS
Description
CE RBMS 10 Integrated High-Voltage BMS | 120-370V LFP Battery Management | 60-Cell Monitoring | CAN/RS485 | Home Energy Storage & UPS
Product Overview

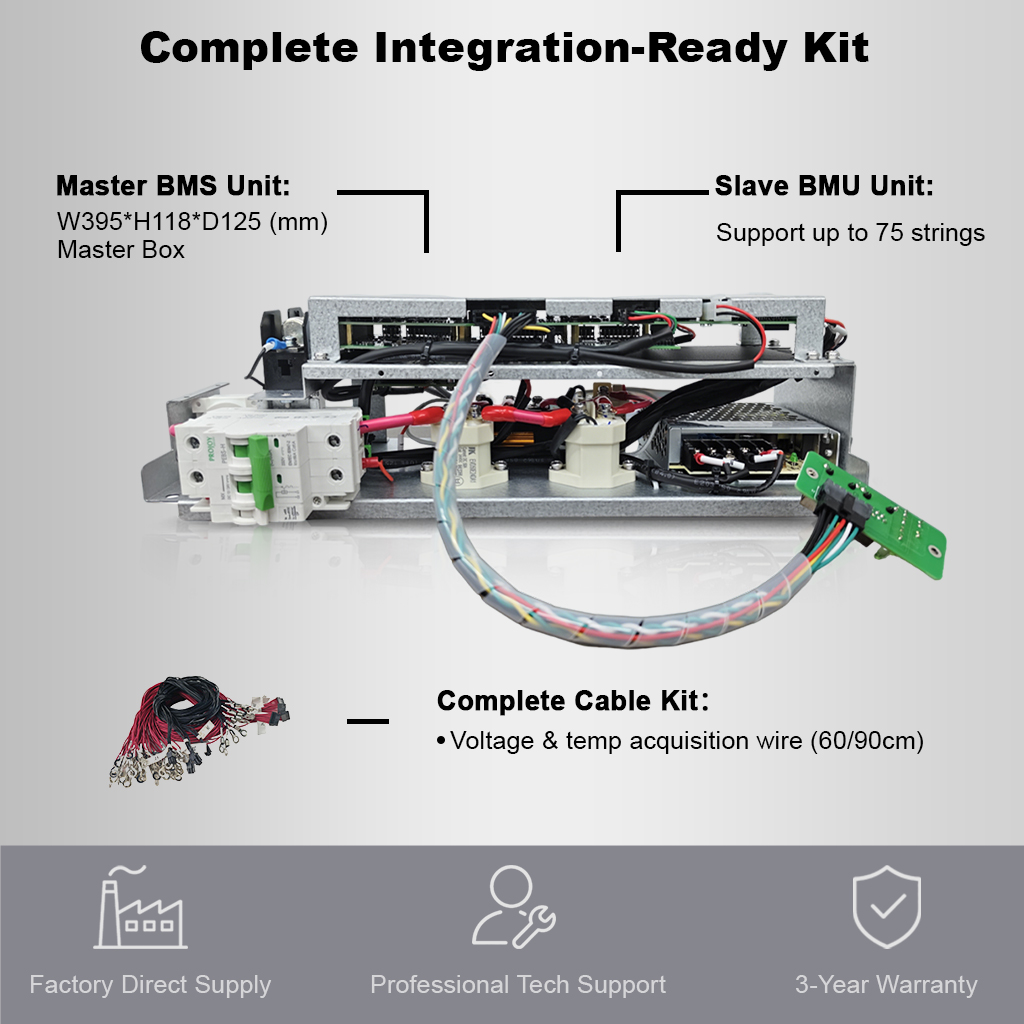

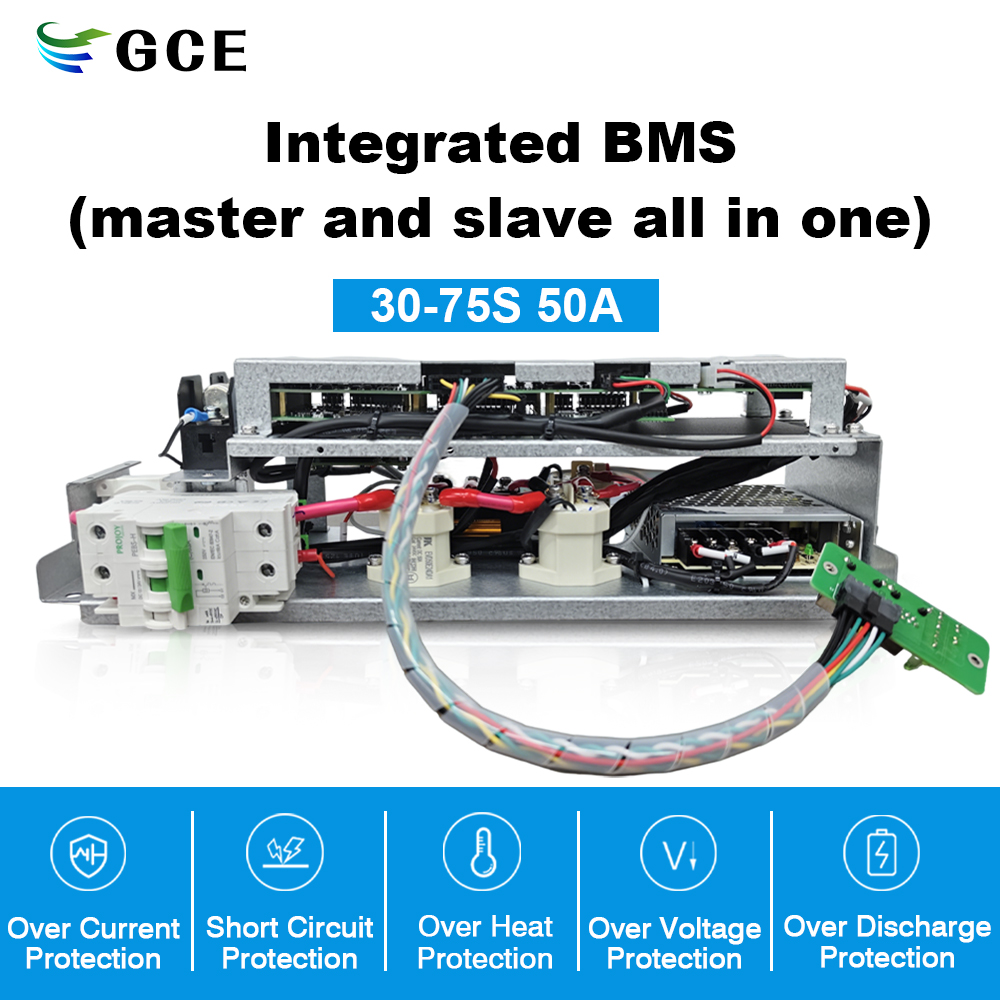

The GCE RBMS 10 Integrated BMS is a compact, all-in-one battery management system designed for lithium iron phosphate (LFP) battery packs. This solution integrates the main control board, BMU sampling board, high-voltage board, switching power supply, Hall sensors, DC contactors, fuses, and structural housing into a single unit, delivering exceptional performance in a space-saving footprint.
With a two-level system architecture, the RBMS 10 offers flexible installation, low cost, and reliable charge/discharge management for small-capacity battery systems in home energy storage, micro-grid applications, and UPS power supplies (220VDC).
CE RBMS 10 Integrated High-Voltage BMS | 120-370V LFP Battery Management | 60-Cell Monitoring | CAN/RS485 | Home Energy Storage & UPS CE RBMS 10 Integrated High-Voltage BMS | 120-370V LFP Battery Management | 60-Cell Monitoring | CAN/RS485 | Home Energy Storage & UPS CE RBMS 10 Integrated High-Voltage BMS | 120-370V LFP Battery Management | 60-Cell Monitoring | CAN/RS485 | Home Energy Storage & UPS CE RBMS 10 Integrated High-Voltage BMS | 120-370V LFP Battery Management | 60-Cell Monitoring | CAN/RS485 | Home Energy Storage & UPS CE RBMS 10 Integrated High-Voltage BMS | 120-370V LFP Battery Management | 60-Cell Monitoring | CAN/RS485 | Home Energy Storage & UPS CE RBMS 10 Integrated High-Voltage BMS | 120-370V LFP Battery Management | 60-Cell Monitoring | CAN/RS485 | Home Energy Storage & UPS CE RBMS 10 Integrated High-Voltage BMS | 120-370V LFP Battery Management | 60-Cell Monitoring | CAN/RS485 | Home Energy Storage & UPS
Key Features
FeatureSpecification
System Voltage Range120 - 370 VDC
Cell MonitoringUp to 60 cells (4 x 15-cell sampling units)
Temperature Probes12 probes across 60 cells
Rated Current50A (transient 70A/10S)
Current SensingHall sensor - safe, reliable, no heat generation
BalancingPassive resistance equalization, 100mA ± 10mA
Voltage Sampling Accuracy±20mV per cell
Temperature Accuracy±2℃
Communication1x CAN, 1x RS485
Display6 LED indicators (1 fault, 1 run, 4 SOC)
ProtectionLevel 1 & Level 2 protection; supports 7.5kA breakers (20ms response) and 20kA fuses
Short Circuit ProtectionBuilt-in
Power Consumption≤10W
Weight3.0 kg
Dielectric Strength1800VDC / 1mA / 1min
CertificationCE compliant
Operating Temperature-20℃ to 60℃
Why Choose RBMS 10?
  • Integrated Design - Combines multiple components into one compact module, reducing system complexity and installation time.
  • High Safety - Dual-level protection with fast-acting circuit breakers and fuses; built-in short circuit protection.
  • Precise Monitoring - ±20mV voltage accuracy and ±2℃ temperature accuracy ensure reliable battery health tracking.
  • Flexible Communication - CAN and RS485 interfaces for seamless integration with PCS/UPS systems.
  • Easy Debugging - Host computer software enables convenient parameter configuration and system monitoring.
  • Passive Balancing - 100mA equalization current maintains cell consistency and extends battery life.
Application Scenarios
