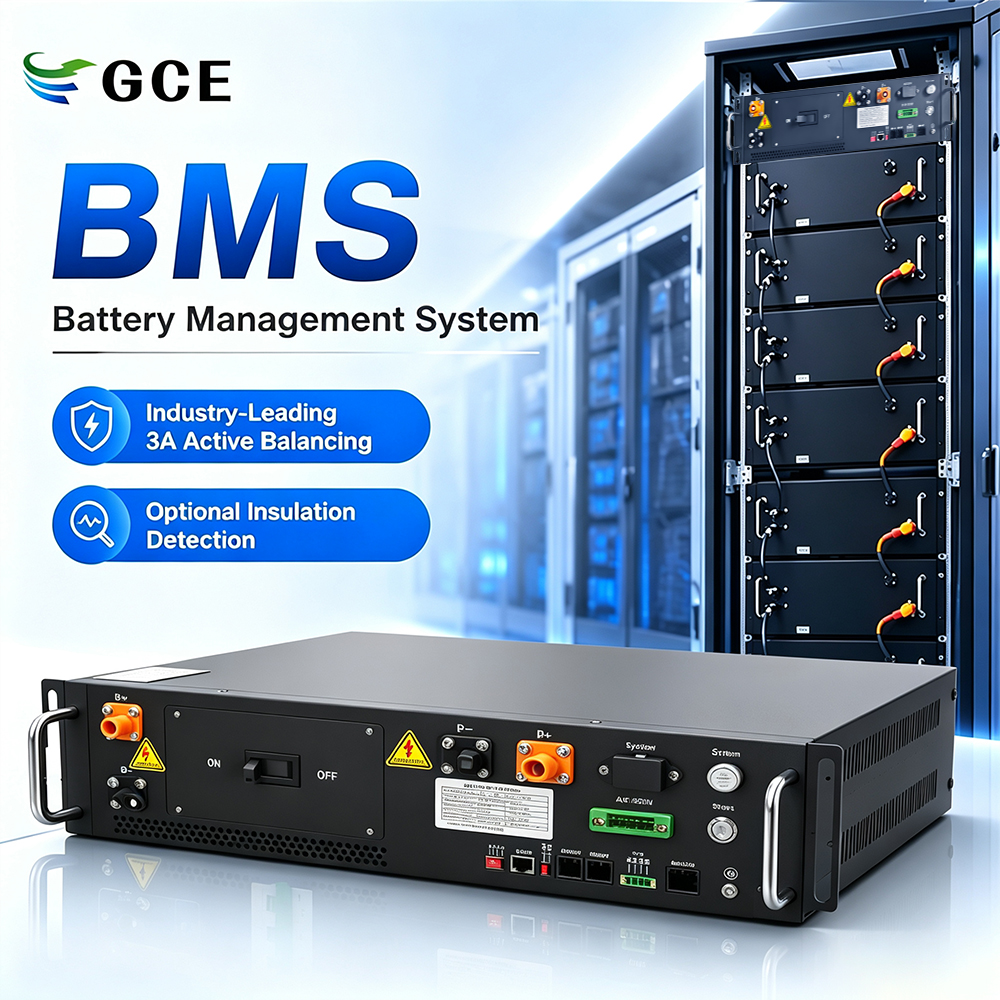

3U High Voltage Rack BMS 176S 563.2V 125A for Solar PV Storage, UPS Backup, and Microgrid – Supports Parallel Operation, External HMI, RS485/CAN/Ethernet, CE Certified
3U High Voltage Rack BMS 176S 563.2V 125A for Solar PV Storage, UPS Backup, and Microgrid – Supports Parallel Operation, External HMI, RS485/CAN/Ethernet, CE Certified
3U High Voltage Rack BMS 176S 563.2V 125A for Solar PV Storage, UPS Backup, and Microgrid – Supports Parallel Operation, External HMI, RS485/CAN/Ethernet, CE Certified
3U High Voltage Rack BMS 176S 563.2V 125A for Solar PV Storage, UPS Backup, and Microgrid – Supports Parallel Operation, External HMI, RS485/CAN/Ethernet, CE Certified
3U High Voltage Rack BMS 176S 563.2V 125A for Solar PV Storage, UPS Backup, and Microgrid – Supports Parallel Operation, External HMI, RS485/CAN/Ethernet, CE Certified
3U High Voltage Rack BMS 176S 563.2V 125A for Solar PV Storage, UPS Backup, and Microgrid – Supports Parallel Operation, External HMI, RS485/CAN/Ethernet, CE Certified
3U High Voltage Rack BMS 176S 563.2V 125A for Solar PV Storage, UPS Backup, and Microgrid – Supports Parallel Operation, External HMI, RS485/CAN/Ethernet, CE Certified
3U High Voltage Rack BMS 176S 563.2V 125A for Solar PV Storage, UPS Backup, and Microgrid – Supports Parallel Operation, External HMI, RS485/CAN/Ethernet, CE Certified
3U High Voltage Rack BMS 176S 563.2V 125A for Solar PV Storage, UPS Backup, and Microgrid – Supports Parallel Operation, External HMI, RS485/CAN/Ethernet, CE Certified
3U High Voltage Rack BMS 176S 563.2V 125A for Solar PV Storage, UPS Backup, and Microgrid – Supports Parallel Operation, External HMI, RS485/CAN/Ethernet, CE Certified
Specifications
MOQ :
2 units
Delivery Time :
25 workdays
Weight :
19kg
Price :
Consult with cara@hngce.com,+8617321496453
Communication :
RS485/CAN/LAN
Warranty :
3 Years
Certification :
CE
Capacity :
50Ah/100Ah/150Ah/200Ah/280Ah/314Ah/340Ah/any capacity
Model Number :
RBMS-S24H-125A-750
Balancing Tech :
active balance
Supply Ability :
1000 units per month
Application :
Solar Energy Storage Systems,ups,home ess, C&I ess
OEM/ODM :
Acceptable
Payment Terms :
L/C, T/T
Product name :
Battery Management System BMS
Size :
482*132*500mm
Brand Name :
GCE
Balance current :
3A
Place of Origin :
china
Max current :
125A
Packaging Details :
Cardboard box foam packaging
Description
3U High Voltage Rack BMS 176S 563.2V 125A
Compact, intelligent battery management system for solar PV storage, UPS backup, and microgrid applications. Supports parallel operation, external HMI, RS485/CAN/Ethernet communication, and CE certified.
Product Overview
The GCE 3U High Voltage Rack Battery Management System (RBMS) is a compact, intelligent, and highly reliable solution designed for industrial & commercial energy storage, UPS backup power, solar PV systems, and microgrid applications. With a rugged 19-inch 3U rack-mount design, this BMS delivers seamless battery monitoring, protection, and communication for lithium iron phosphate (LFP) battery packs up to 750V.
Whether you need a standalone system or a multi-cluster parallel setup, the RBMS offers flexible architecture (2-level or 3-level) to meet your project scale - supporting up to 200 cells in series and automatic circulation control for safe expansion.
3U High Voltage Rack BMS 176S 563.2V 125A for Solar PV Storage, UPS Backup, and Microgrid – Supports Parallel Operation, External HMI, RS485/CAN/Ethernet, CE Certified
Key Applications
  • Solar PV power plant storage
  • Off-grid / island energy storage
  • PV + storage + charging integration
  • Microgrid systems
  • UPS backup power
  • 220V DC power supply for power systems
Technical Specifications
Rated Current 100A (Max 125A)
Max Voltage 350V / 750V (Optional)
Power Consumption ≤15W
Current Sampling Accuracy 1% FSR
Insulation Withstand Voltage 2800VDC <1mA 1min
Protection Rating IP20
Dimensions (W×H×D) 482×132×500 mm
Weight ~10 kg
Operating Temperature -20℃ ~ 55℃ (derating above 50℃)
Communication Ports RS485, CAN, Ethernet, Dry Contacts
Smart Features
  • Battery & Temperature Management - Real-time charge/discharge control, pre-charge function, and active thermal monitoring
  • Protection & Safety - Short-circuit (750V/20kA/20ms), overvoltage, undervoltage, overcurrent, and insulation detection (≥300V systems)
  • Event Logging - Stores up to 5,000 event records; optional SD card for extended cell history
  • IAP Upgrade - In-application programming for firmware updates without disassembly
  • Dry Contacts - 2 NO outputs for external alarm or interlock control
  • DC Start - Battery-powered startup with AC mains as on/off signal (10s delay shutdown)
Parallel & Communication
Automatic parallel/offline control with ID allocation via DIP switch (up to 15 units). Terminal resistor (120Ω) for CAN/485 bus termination. Compatible with PCS/Inverter/UPS from major brands via flexible protocol adaptation. Remote monitoring via Ethernet connection to PC-based upper computer software.
Installation & Wiring
Front-side input/output for easy cabling. Standard 19-inch rack mounting. Clear terminal markings: B+/B- (battery side), P+/P- (load/charger side), AC input, dry contacts, and display interface. Includes 4.3-inch external HMI display (7-inch optional) for local data visualization.
Safety & Compliance
CE certified to IEC62477-1, EN61000-6-2/4. Complies with GB/T 16935.1, GB/T 17626.2, GB/T 17626.5. Built-in circuit breaker with manual reset and BMS-controlled tripping for secondary protection. Strict safety warnings against unauthorized disassembly, improper startup sequences, and fire hazards (dry powder extinguisher required).
Package Contents
  • 1× RBMS Main Unit (3U)
  • 2× Terminal Plugs (Orange + Black, ESP-120A-25)
  • 1× Display Terminal (3.81-4Pin)
  • 1× AC Socket (250V 10A)
  • 1× Dry Contact Terminal (5.08-4Pin)
  • 1× Terminating Resistor (120Ω)
  • 1× External Communication Cable (6-core shielded, 2m)
Ordering Information
RBMS-D24H-125A750 = 750V master BMS with parallel function, 125A rating, and 4.3-inch external display, two-wire system.
Why Choose GCE?
With years of expertise in battery management, GCE provides turnkey solutions tailored to your project needs. Our RBMS delivers the perfect balance of performance, safety, and scalability - backed by full technical support and global compliance.
Contact us today for customized configurations or OEM/ODM inquiries.
